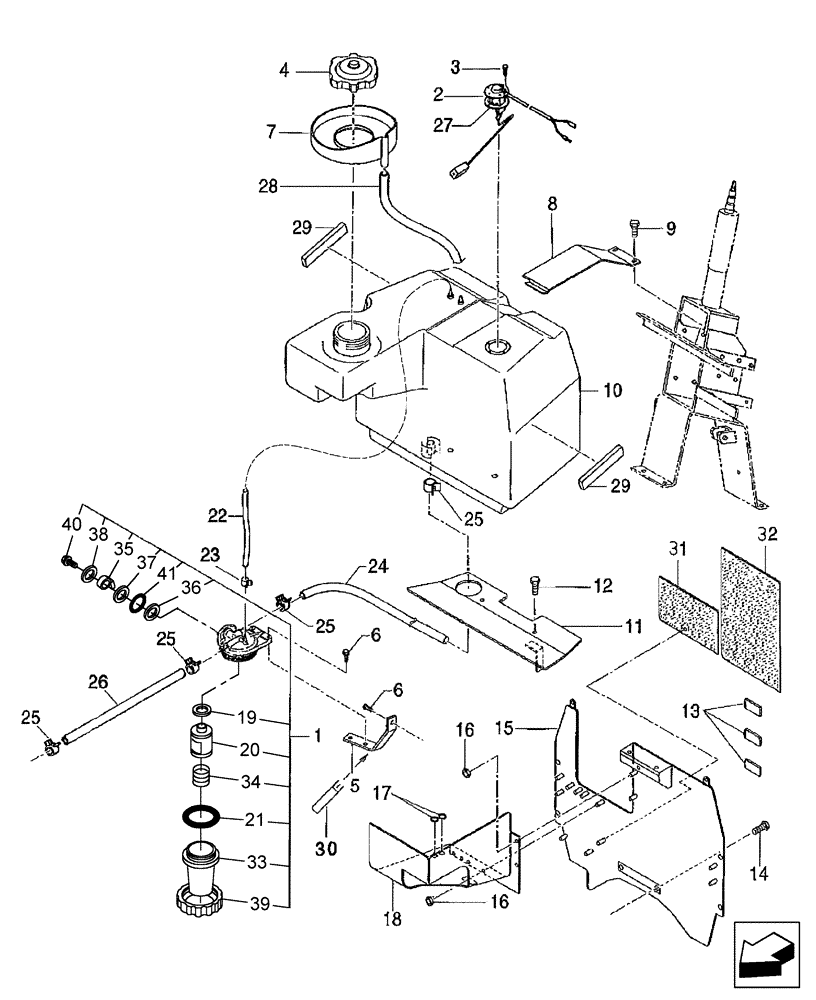

Запчасти Case IH DX55 (02.05) - FUEL TANK & FILTER (02) - ENGINE EQUIPMENT

1

SBA360700071

FUEL FILTER

1шт.

2

SBA360700220

FUEL FILTER

Includes: Ref. 19-21, 33-41

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

2

SBA385280120

GAUGE

Fuel

1шт.

2

SBA385280250

GAUGE

Fuel

1шт.

USED ON & ABOVE PIN # HDG600084

1шт.

3

SBA015140512

SCREW

M15 x 12

5шт.

4

86558080

FILLER CAP

1шт.

5

SBA360560280

SUPPORT

Filter

1шт.

6

SBA011510816

BOLT

M8 x 16

3шт.

7

SBA360410150

COVER

1шт.

7

SBA360410151

COVER

Used On & ASN HDG600095

1шт.

8

SBA360510930

HOLDER

1шт.

9

SBA010800816

BOLT

M8 x 16

2шт.

10

SBA360102210

TANK

Fuel

1шт.

11

SBA360501370

HOLDER

Tank

1шт.

11

SBA360501371

HOLDER

Tank

1шт.

USED ON & ABOVE PIN # HDG600353

1шт.

12

SBA011510816

BOLT

M8 x 16

3шт.

13

SBA398113740

RUBBER PAD

3шт.

14

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

15

SBA310353380

PLATE

1шт.

15

SBA310353381

PLATE

1шт.

USED ON & ABOVE PIN # HDG600097

1шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

17

SBA398110240

GROMMET

2шт.

18

SBA310353390

PLATE

1шт.

18a

SBA398230070

WIRE

Bound to the side guard so that the side guard can not be taken off completely at the maintenance and inspection of fuel filter.

2шт.

Not Illustrated

1шт.

18b

SBA398214870

SPRING

Wire Bound to the side guard so that the side guard can not be taken off completely at the maintenance and inspection of fuel filter.

1шт.

Not Illustrated

1шт.

19

SBA052100160

O-RING

1шт.

20

87300042

FUEL FILTER

1шт.

21

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

1шт.

22

SBA360770730

HOSE

Return

1шт.

23

SBA067200078

HOSE CLAMP

2шт.

24

SBA360770360

FLEXIBLE HOSE

In

1шт.

25

SBA067200130

CLAMP

4шт.

26

SBA360770600

HOSE

1шт.

27

SBA385990070

GASKET

Fuel Pipe

1шт.

28

SBA068122850

TUBE

1шт.

29

SBA398135720

PADDING

1шт.

30

SBA398119790

RUBBER PAD

2шт.

31

SBA398136150

FOAM INSULATION

Sponge

1шт.

32

SBA398136160

FOAM INSULATION

Sponge

1шт.

33

SBA130336041

CUP

1шт.

33

SBA360710050

FILTER BOWL

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

34

SBA130446040

SPRING

1шт.

34

SBA360740120

SPRING

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

35

SBA360740101

LEVER

1шт.

35

SBA360740116

LEVER

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

36

SBA360740102

RUBBER RING

1шт.

36

SBA360740117

RUBBER RING

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

37

SBA360740103

WASHER

1шт.

37

SBA360740118

WASHER

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

38

SBA360740104

PLATE

1шт.

38

SBA360740119

PLATE

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

39

SBA130446030

NUT

1шт.

39

SBA360740115

NUT

1шт.

USED ON & ABOVE PIN # Z6NFC1094

1шт.

40

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

41

SBA052400290

O-RING

1шт.
