(02.01.04) - BATTERY STAND HOLDER & HOOD LATCH - ON & ABOVE PIN HDG600483 DX55

Запчасти Case IH DX55 (02.01.04) - BATTERY STAND HOLDER & HOOD LATCH - ON & ABOVE PIN HDG600483 DX55 (02) - ENGINE EQUIPMENT

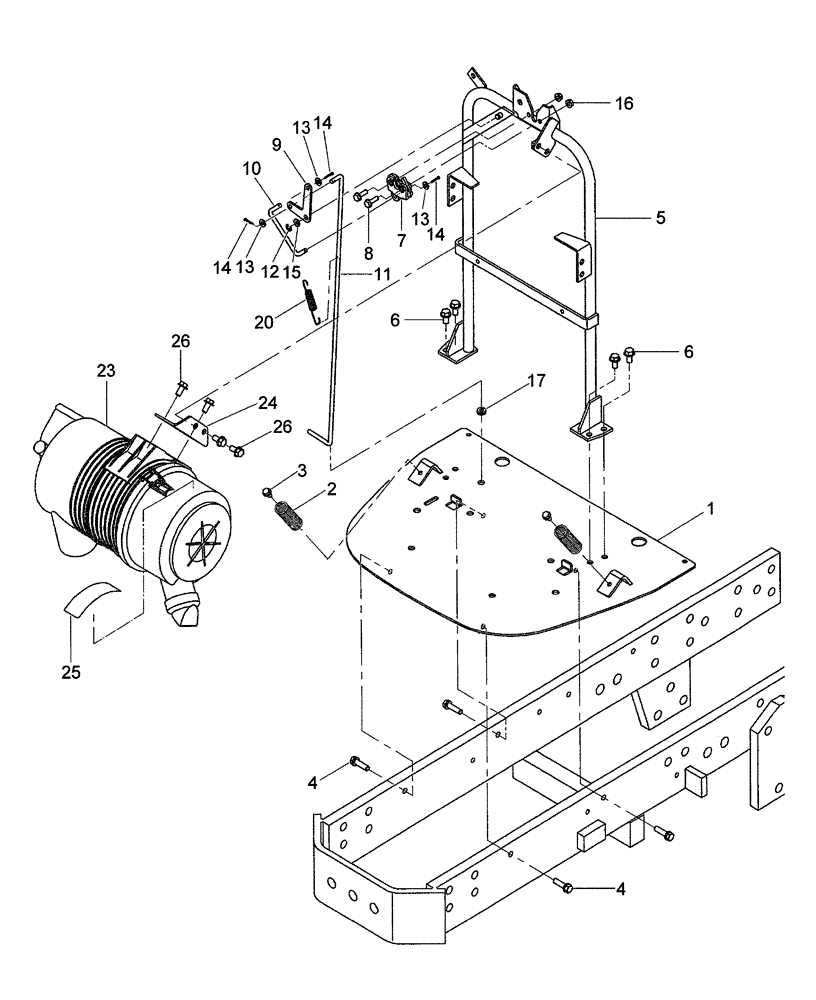

Схема запчастей Case IH DX55 - (02.01.04) - BATTERY STAND HOLDER & HOOD LATCH - ON & ABOVE PIN HDG600483 DX55 (02) - ENGINE EQUIPMENT
14
8
26
25
24
12
14
10
13
1
11
6
4
17
3
2
20
13
16
23
15
7
13
4
26
14
9
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA389102270

PLATE

Battery Stand

1шт.

2

SBA398214941

SPRING

2шт.

3

SBA010800616

BOLT

M6 x 16

2шт.

4

SBA010800816

BOLT

M8 x 16

4шт.

5

SBA314601750

SUPPORT

BRACE

1шт.

6

SBA011510816

BOLT

M8 x 16

4шт.

7

SBA350200180

HANGER

Latch Mechanism

1шт.

8

SBA010800620

BOLT

M6 x 20

2шт.

9

SBA350210250

HANGER

1шт.

10

SBA350210260

HANGER

1шт.

11

SBA350210240

HANGER

1шт.

12

SBA036800006

SNAP RING

1шт.

13

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

3шт.

14

SBA030102020

COTTER PIN

3шт.

15

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

16

SBA022400006

NUT

M6

2шт.

17

SBA398114510

RUBBER SEAL

1шт.

18

SBA389113160

COVER

1шт.

19

SBA010800616

BOLT

M6 x 16

2шт.

20

SBA398211830

SPRING

1шт.

22

SBA398121080

RUBBER SEAL

1шт.

23

SBA314500940

AIR CLEANER

AIR CLEANER

1шт.

24

SBA314610700

BRACKET

BRACKET

1шт.

25

SBA390199100

DECAL

DECAL, CIH

1шт.

USED BELOW PIN # Z6NFC1081

1шт.

26

SBA011510816

BOLT

M8 x 16

4шт.
