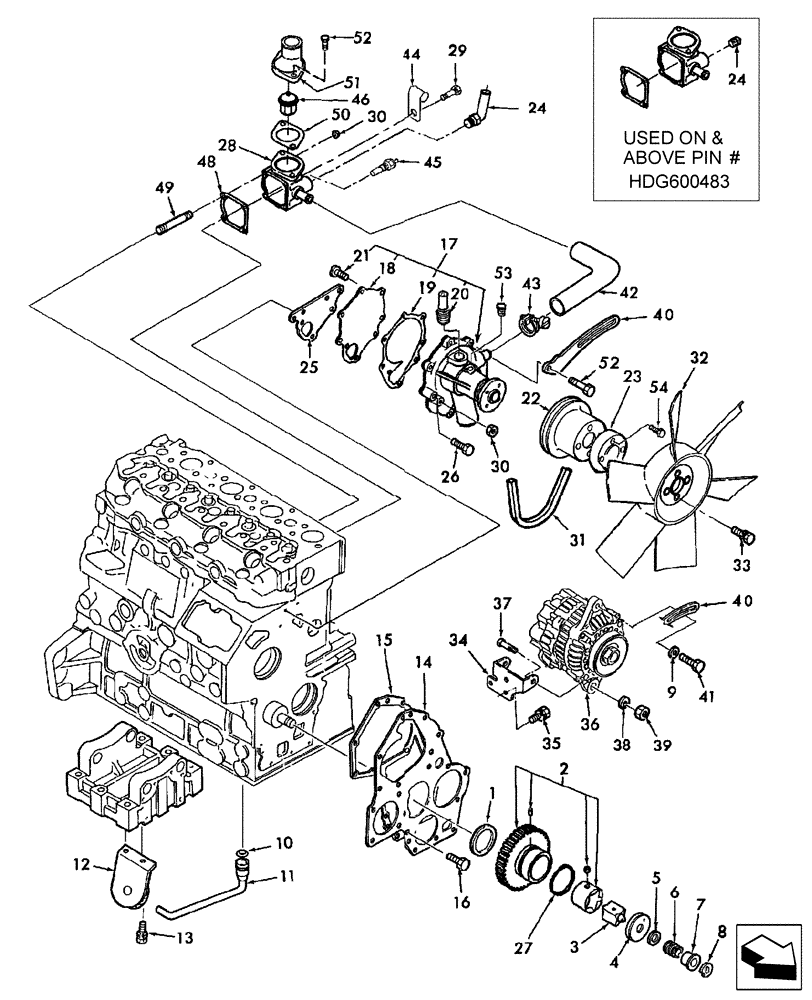

Запчасти Case IH DX55 (01.06) - OIL PUMP, WATER PUMP & FAN (01) - ENGINE

1

SBA199266180

THRUST WASHER

1шт.

2

SBA165026120

IDLER GEAR

Gear Assy., Incl Ref 27

1шт.

No Part Number For Complete Oil Pump Assy

1шт.

Component Of Oil Pump

1шт.

3

SBA140166140

ROTOR

Inner

1шт.

4

SBA140116140

COVER

Oil Pump

1шт.

5

SBA199286150

SHIM,0.1mm Thk

1шт.

5

SBA199286160

SHIM,0.15mm Thk

1шт.

5

SBA199286170

SHIM,0.2mm Thk

1шт.

5

SBA199286180

SHIM,0.5mm Thk

1шт.

6

SBA198216720

SPRING

1шт.

7

SBA199236540

COLLAR

1шт.

8

SBA036800010

SNAP RING

1шт.

9

SBA026109017

WASHER

1шт.

Not Included in Long Block

1шт.

10

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

P11

1шт.

11

SBA140986620

RIGID TUBE

Oil

1шт.

12

SBA140406340

PICK-UP

Suction

1шт.

13

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

14

SBA165166510

PLATE

Front

1шт.

15

SBA165996540

GASKET

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

17

SBA145017790

WATER PUMP

1шт.

17

SBA145017790R

REMAN-WATER PUMP

DX55 EHSS COMPACT TRACTOR - SN CX10004-CX10083, HDG600084-Z6NFC1001 & ABOVE (10/03-)

1шт.

17

SBA145017790C

CORE-WATER PUMP

Return Number

1шт.

18

SBA145146320

PLATE

Set

1шт.

19

SBA145996680

GASKET

1шт.

20

SBA198487870

NIPPLE

1шт.

20

SBA198486940

FITTING

Connector

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

21

SBA015300614

SCREW

3шт.

22

SBA145337060

PULLEY

1шт.

22

SBA145336620

PULLEY

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

23

SBA145387030

HOLDER

Holder, Fan

1шт.

23

SBA145386920

HOLDER

Holder, Fan

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

24

SBA140986581

ELBOW

1шт.

24

SBA064500030

PLUG,3/8"

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

25

SBA145996670

GASKET

1шт.

26

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

4шт.

27

SBA198216821

SPRING

1шт.

28

SBA145216730

CASE

Thermostat

1шт.

29

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

31

86517954

V-BELT,0.50" W x 37.54" L

1шт.

32

SBA145306250

FAN

1шт.

Not Included in Long Block

1шт.

32

SBA145306910

FAN

Fan

1шт.

Not Included in Long Block

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

33

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

Not Included in Long Block

1шт.

33

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

4шт.

Not Included in Long Block

1шт.

USED ON & ABOVE PIN # HDG600483

1шт.

34

SBA185976510

BRACKET

1шт.

Not Included in Long Block

1шт.

35

SBA011510816

BOLT

M8 x 16

3шт.

Not Included in Long Block

1шт.

36

SBA185046380

ALTERNATOR

55 AMP

1шт.

Not Included in Long Block

1шт.

36

SBA185046380R

REMAN-ALTERNATOR

55 Amp

1шт.

36

SBA185046380C

CORE-ALTERNATOR

Return Number

1шт.

37

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

Not Included in Long Block

1шт.

38

892-11010

LOCK WASHER,M10

2шт.

Not Included in Long Block

1шт.

39

100016

NUT,M10 x 1.5, Cl 8

2шт.

Not Included in Long Block

1шт.

40

SBA185727000

PLATE

Adjusting

1шт.

Not Included in Long Block

1шт.

41

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

1шт.

Not Included in Long Block

1шт.

42

SBA145536050

HOSE

1шт.

43

SBA067100022

HOSE CLAMP

2шт.

44

SBA199116370

CLAMP

1шт.

45

SBA385720011

SENSOR

Coolant Temperature Sending Unit

1шт.

Not Included in Long Block

1шт.

46

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1шт.

48

SBA145996710

GASKET

1шт.

49

SBA012110655

STUD

Bolt, M6 x 55

2шт.

50

SBA145996051

GASKET

1шт.

51

SBA145226450

COVER

1шт.

52

SBA010800820

BOLT

M8 x 20

2шт.

53

SBA198466910

PLUG

1шт.

54

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

Not Included in Long Block

1шт.

USED BELOW PIN # HDG600483

1шт.

55

SBA378116310

BRACKET

Guard for Belt Fan

1шт.

Not Illustrated

1шт.
