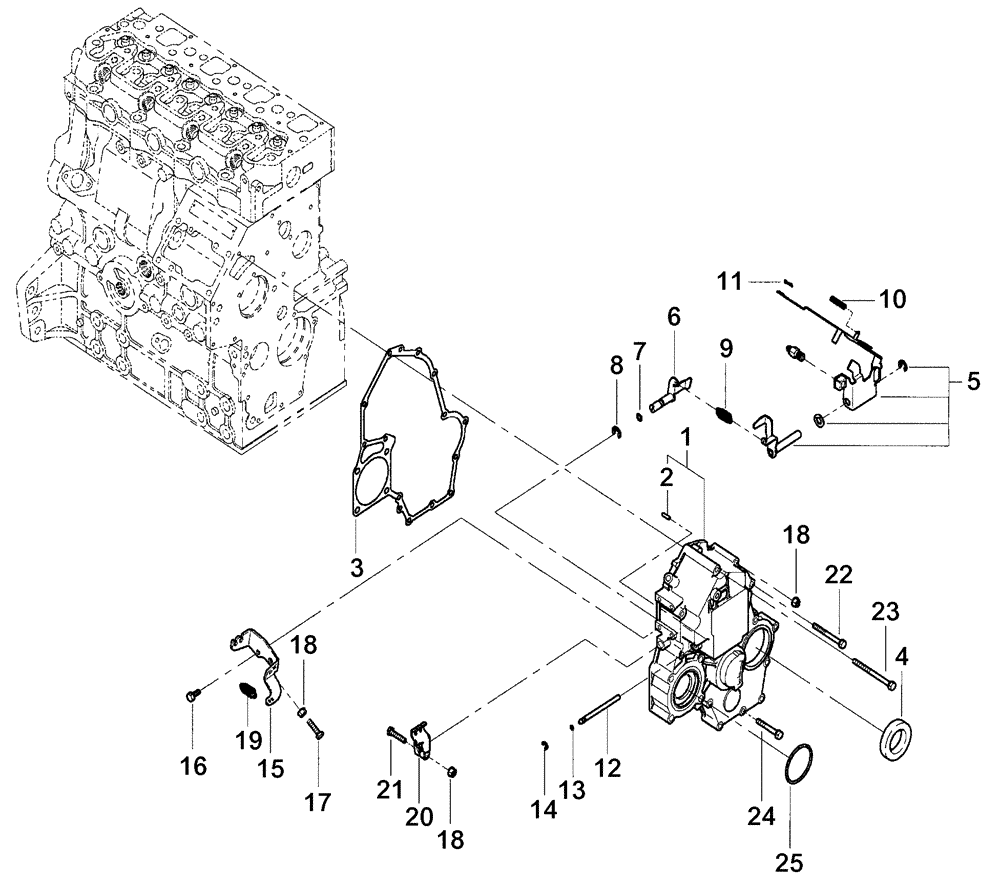

Запчасти Case IH DX55 (01.05) - TIMING GEAR CASE (01) - ENGINE

1

SBA165106520

CASE

Case, Gear

1шт.

2

SBA030300414

PIN

Spring

1шт.

3

SBA165996550

GASKET

1шт.

4

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

5

SBA125046510

LEVER

Governor

1шт.

6

SBA125156170

ARM

1шт.

7

SBA052109110

O-RING

1шт.

8

SBA036800008

SNAP RING

1шт.

9

SBA198217220

SPRING

Main

1шт.

10

SBA198217500

SPRING

Start

1шт.

11

SBA031100004

SPRING

1шт.

12

SBA125116141

ROD

Governor

1шт.

13

SBA052109108

O-RING

1шт.

14

SBA036800005

SNAP RING

1шт.

15

SBA125976100

BRACKET

1шт.

16

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

17

SBA010109264

BOLT

1шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

19

SBA398210070

SPRING

1шт.

20

SBA125416090

LEVER

Governor

1шт.

21

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

22

SBA011310680

BOLT

M6 x 80

2шт.

23

SBA011310660

BOLT

4шт.

24

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

7шт.

25

SBA052300600

O-RING,G60

1шт.
