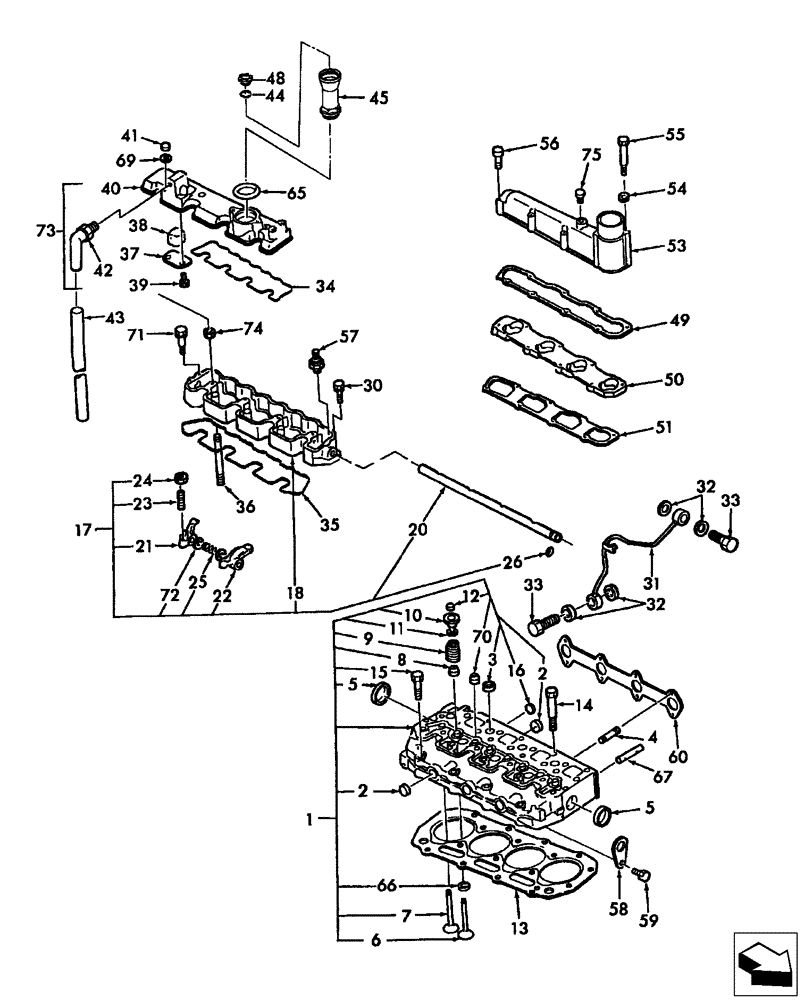

Запчасти Case IH DX55 (01.03) - CYLINDER HEAD (01) - ENGINE

1

SBA111010450

CYLINDER HEAD

Includes: Ref. 2,3,5-12,15,16,58,59,66,67 & 70.

1шт.

2

SBA064210025

PLUG,25mm

5шт.

3

SBA064210018

PLUG

Sealing

7шт.

4

SBA012110860

STUD

Bolt

2шт.

5

SBA064210030

PLUG,30mm

2шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406050

SEAL

Valve Guide

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

16шт.

12

SBA120216040

CAP

8шт.

13

SBA111147741

CYLINDER HEAD GASKET

1шт.

14

SBA111136480

BOLT

14шт.

15

SBA111136490

BOLT

4шт.

16

SBA064210010

PLUG,10mm

3шт.

17

SBA120036810

ROCKER ARM

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING Rocker Arm

1шт.

20

SBA120316201

SHAFT

Rocker Arm

1шт.

21

SBA120356131

ROCKER ARM

4шт.

22

SBA120356141

ROCKER ARM

4шт.

23

SBA199486220

ADJUSTMENT SCREW

8шт.

24

SBA020109076

NUT

8шт.

25

SBA198217170

SPRING

3шт.

26

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

30

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

1шт.

31

SBA140606720

TUBE

Oil

1шт.

32

SBA140996260

SEAL

4шт.

33

SBA198486780

BANJO BOLT

2шт.

34

SBA052109072

O-RING,3mm Thk x 345mm ID, 70 Duro

I.D. 344 mm, Development Length 1090 mm

1шт.

35

SBA052109074

O-RING,3mm Thk x 368mm ID, 70 Duro

1шт.

Attached on the frame of head cover

1шт.

36

SBA012109044

STUD

4шт.

37

SBA110666050

DEFLECTOR

Stopper, Oil

1шт.

38

SBA110666060

FILTER SCREEN

1шт.

39

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

40

NSS

NOT SOLD SEPARAT

COVER

1шт.

41

SBA024600010

NUT

Cap

4шт.

42

SBA140986581

ELBOW

1шт.

43

SBA068209179

HOSE

1шт.

Not Included in Long Block

1шт.

44

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

45

SBA110466200

RIGID TUBE

1шт.

Not Included in Long Block

1шт.

48

SBA198436010

FILLER CAP

1шт.

49

SBA135996880

MANIFOLD GASKET

1шт.

50

SBA135597580

SPACER

1шт.

51

SBA135996870

GASKET

1шт.

53

SBA135597700

MANIFOLD

Intake

1шт.

55

SBA010109119

BOLT

2шт.

56

SBA011310660

BOLT

6шт.

57

SBA185246060

SENDER UNIT

Oil Pressure

1шт.

58

SBA195816540

LIFTING EYE

2шт.

59

SBA011510816

BOLT

M8 x 16

2шт.

60

SBA135996780

MANIFOLD GASKET

1шт.

Not Included in Long Block

1шт.

65

SBA052100420

O-RING

1шт.

Not Included in Long Block

1шт.

66

SBA110136435

VALVE SEAT

Exhaust

4шт.

66

SBA110136400

VALVE SEAT

Intake

4шт.

67

SBA012110645

STUD

Bolt

2шт.

69

SBA140996270

SEAL

4шт.

70

SBA120406070

SEAL

Valve

4шт.

71

SBA011310650

BOLT

1шт.

72

SBA199280300

SHIM,0.5mm Thk

6шт.

73

SBA111027160

COVER

Head Includes: Ref. 37 thru 40 & 42

1шт.

74

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

75

SBA064500010

PLUG

1шт.

54

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.
