Запчасти Case IH DX55 (06.01.01) - LIGHTS, REAR LH & RH HAZ/TURN/TAIL & BRAKE (06) - ELECTRICAL SYSTEMS

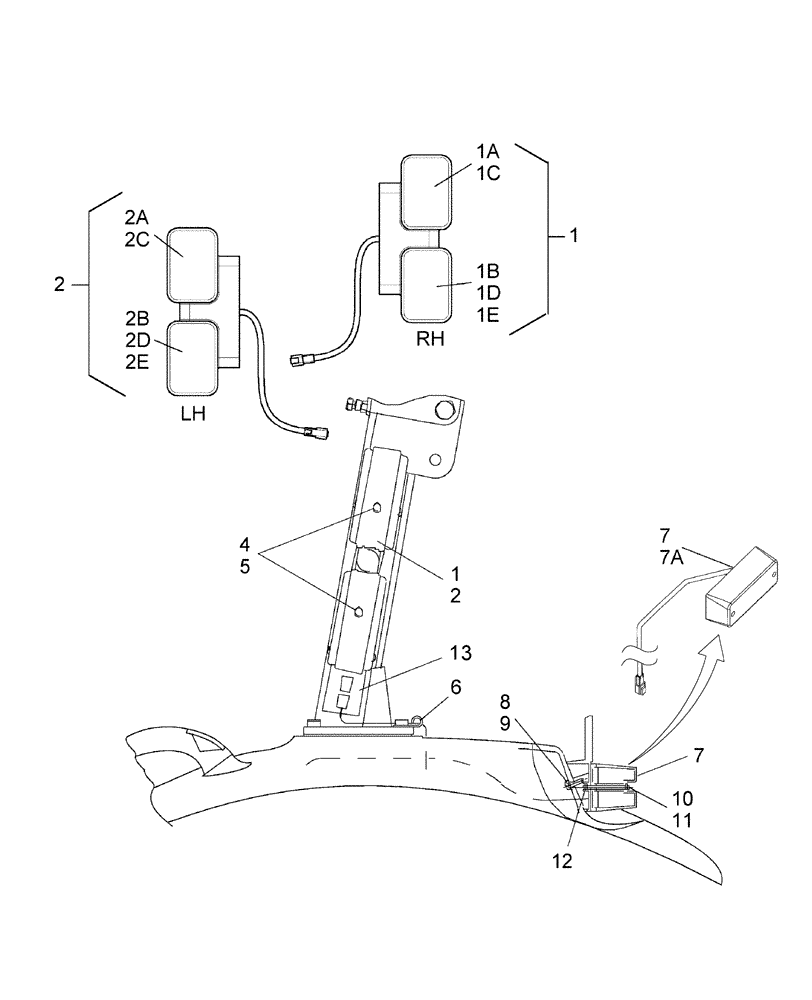

Схема запчастей Case IH DX55 - (06.01.01) - LIGHTS, REAR LH & RH HAZ/TURN/TAIL & BRAKE (06) - ELECTRICAL SYSTEMS
11
2b
2a
7
7
2d
1
1e
9
10
1a
1b
1c
2
2
8
4
7a
13
2c
12
1d
2e
6
5
1

Артикул

Название

Примечание

Количество

1

87591020

LIGHT

Rear, RH HAZ/TURN/TAIL Includes: Ref. 1A-1E

1шт.

1a

529068

BULB,#1156, 12V, 21W

1шт.

1b

9417867

BULB,C6, #1157, 12.8V

1шт.

1c

86576124

LENS

Amber in Front & Back

2шт.

1d

87308239

LENS

Red, in Back

1шт.

1e

87308241

LENS

Black, in Front

1шт.

2

87591019

LIGHT

Rear, LH HAZ/TURN/TAIL Includes: Ref. 2A-2E

1шт.

2a

529068

BULB,#1156, 12V, 21W

1шт.

2b

9417867

BULB,C6, #1157, 12.8V

1шт.

2c

86576124

LENS

Amber in Front & Back

2шт.

2d

87308239

LENS

Red, in Back

1шт.

2e

87308241

LENS

Black, in Front

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

4шт.

7

87389168

LIGHT

Rear, Brake Includes: Ref. Ref. 7A

2шт.

7a

9417867

BULB,C6, #1157, 12.8V

2шт.

8

87016552

SELF-TAP SCREW,Hex Hd, M6.3 x 19

4шт.

9

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

10

86050228

SCREW,Phil Pan Hd, M4 x 60mm, Cl 4.8

8шт.

11

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

12

86625075

NUT,M4 x 0.7, Cl 8

4шт.

13

SBA385960940

COVER

Refer to Fig. 08.04 For a Better View

2шт.

Выбрано товаров: 23
