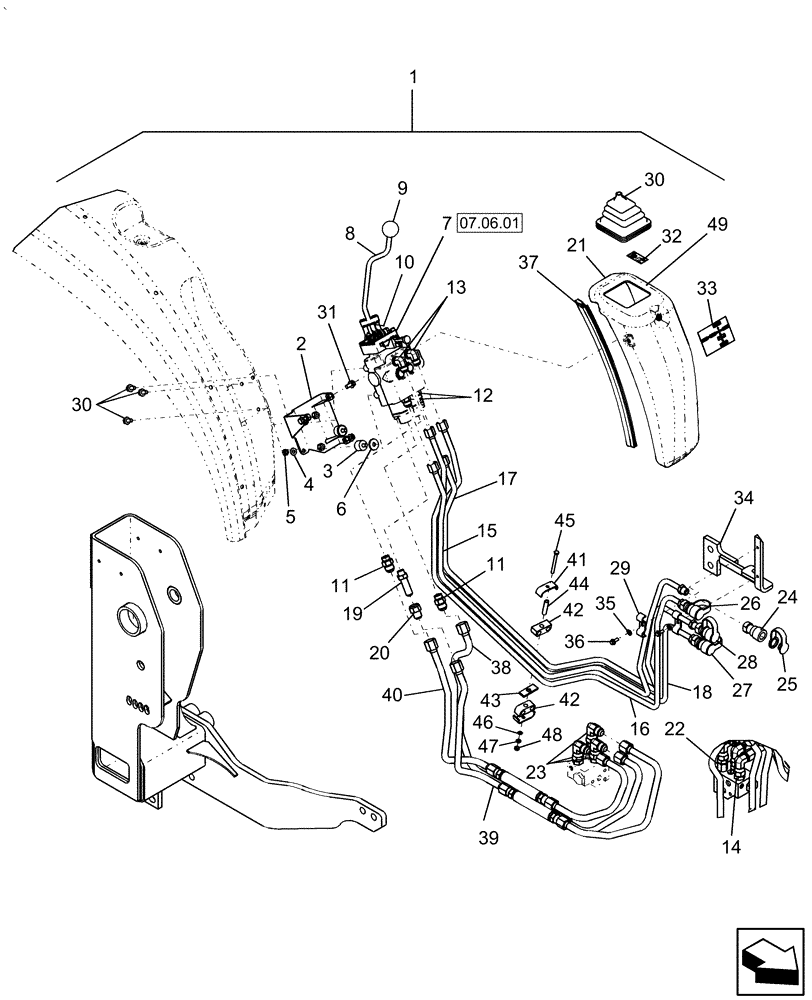

Запчасти Case IH DX55 (07.06) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT, 2-SPOOL W/CAB - DIA KIT, P/N 719918026 (07) - HYDRAULIC SYSTEM

1

719918026

DIA KIT, TRACTOR

Mid Mount Valve Includes: Ref. 2-49

1шт.

2

87519012

BRACKET

Valve Mount

1шт.

3

86567772

INSULATOR

Valve

3шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

3шт.

6

9826296

WASHER

3шт.

7

86403581

HYDRAULIC VALVE

2- Spool Kit Refer to Fig. 07.06.01 for Breakdown

1шт.

8

86404419

HANDLE

Loader Valve

1шт.

9

511632

KNOB

1шт.

10

50456

NUT,7/16"-20, G5

1шт.

11

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: 128825 O-Ring

3шт.

12

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Includes: 9617873 O-Ring

2шт.

13

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Includes: 9617873 O-Ring

2шт.

14

242679

HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT

2шт.

15

87599274

HYD TUBE,9.4 mm ID x 12.7 mm OD

Port B1, Bucket Rod

1шт.

16

87639509

HYD TUBE

Port A1, Bucket Base

1шт.

17

87599276

HYD TUBE,9.4 mm ID x 12.7 mm OD

Port B2, Boom Base

1шт.

18

87599277

HYD TUBE,9.4 mm ID x 12.7 mm OD

Port A2, Broom Rod

1шт.

19

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

20

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

Adapter

1шт.

21

87384216

TRIM PANEL

Cover, Loader Control

1шт.

22

86636626

ADAPTER,3/8"-18 Male NPTF x 3/8"-18 Female NPTF

1шт.

23

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

24

9846343

COUPLING,3/8" NPTF

Hyd, O-Ring used is 122056 & Back-Up Ring used is 647327

4шт.

25

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

26

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

27

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

28

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

29

86524859

CLAMP

Tube

2шт.

30

86530982

BOOT

Loader Joystick

1шт.

31

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

32

86401119

DECAL

Valve Lock

1шт.

33

86401095

DECAL

Loader Valve

1шт.

34

87557945

BRACKET

Bracket, Tube Mount

1шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

36

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

37

87602662

RUBBER WEATHERSTRIP

Trim, Shroud Edge

1шт.

38

87605255

TUBE

Tank

1шт.

39

87605257

TUBE

Power Beyond

1шт.

40

87605258

TUBE

Supply

1шт.

41

87638990

COLLAR CLAMP

Stirrup

2шт.

42

87638991

COLLAR CLAMP

Rubber

2шт.

43

87638992

COLLAR CLAMP

Spacer

1шт.

44

87638993

SLEEVE

1шт.

45

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

1шт.

46

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

1шт.

47

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

48

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

49

87639516

SOFT TRIM

Shroud Edge

1шт.
