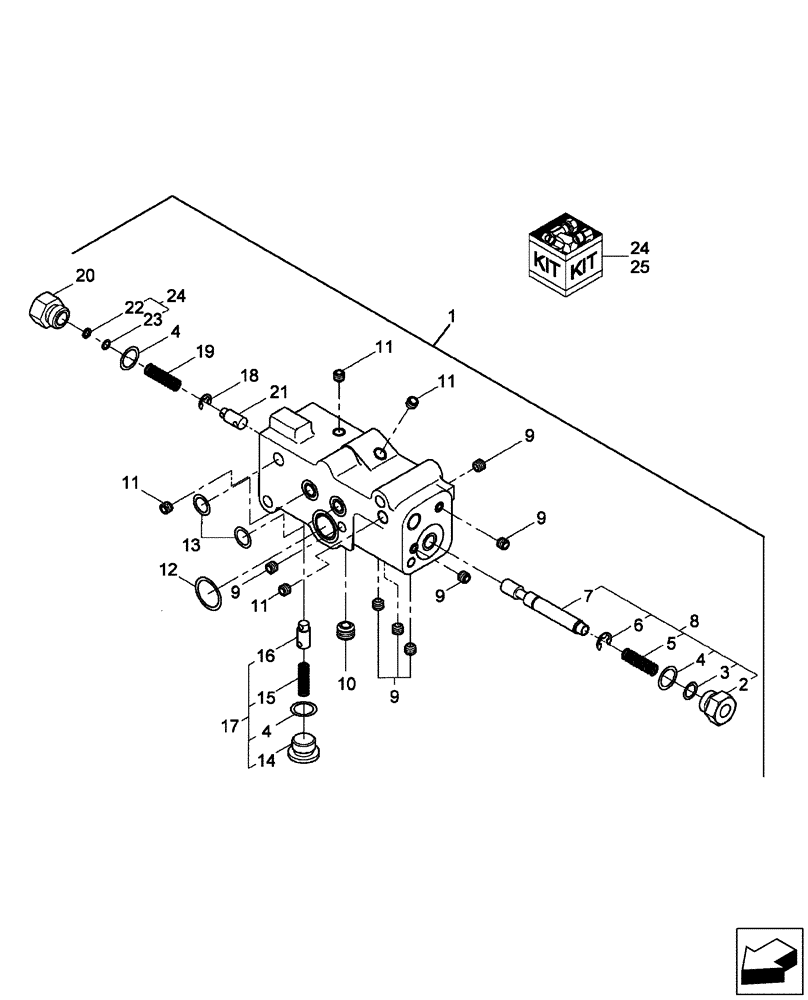

Запчасти Case IH DX55 (07.03.01) - EHSS CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

SBA340016850

VALVE

VALVE, EHSS Control Includes: Ref. 2-20

1шт.

2

SBA340293778

Cap

1шт.

3

SBA052100100

O-RING

1шт.

4

SBA052100140

O-RING

3шт.

5

SBA340293773

Spring

1шт.

6

SBA036800007

Snap Ring

1шт.

7

SBA340293768

Spool

1шт.

8

SBA340293784

SPOOL

Kit, Spool Includes: Ref. 2-7

1шт.

9

SBA340293697

PLUG

7шт.

10

SBA064400020

PLUG

1шт.

11

SBA064400010

PLUG

4шт.

12

SBA052100220

O-RING

P22

1шт.

13

SBA052100120

O-RING

P12

2шт.

14

SBA340293830

Plug

1шт.

15

SBA340293831

Spring

1шт.

16

SBA340293829

Poppet

1шт.

17

SBA340293833

CHECK VALVE

Check Valve Includes: Ref. 4,14-16

1шт.

18

SBA036800006

SNAP RING

1шт.

19

SBA340293774

COIL SPRING

Spring

1шт.

20

SBA340293770

PLUG

Plug

1шт.

21

SBA340293772

POPPET

Poppet

1шт.

22

SBA340293835

SHIM

Shim, 0.1

1шт.

23

SBA340293796

SHIM,0.5mm Thk

1шт.

24

SBA340293832

Shim Kit Includes: Ref. 22 & 23

1шт.

25

SBA340293834

SEAL KIT

Seal Kit Includes: Ref. 3,4,12 & 13

1шт.
