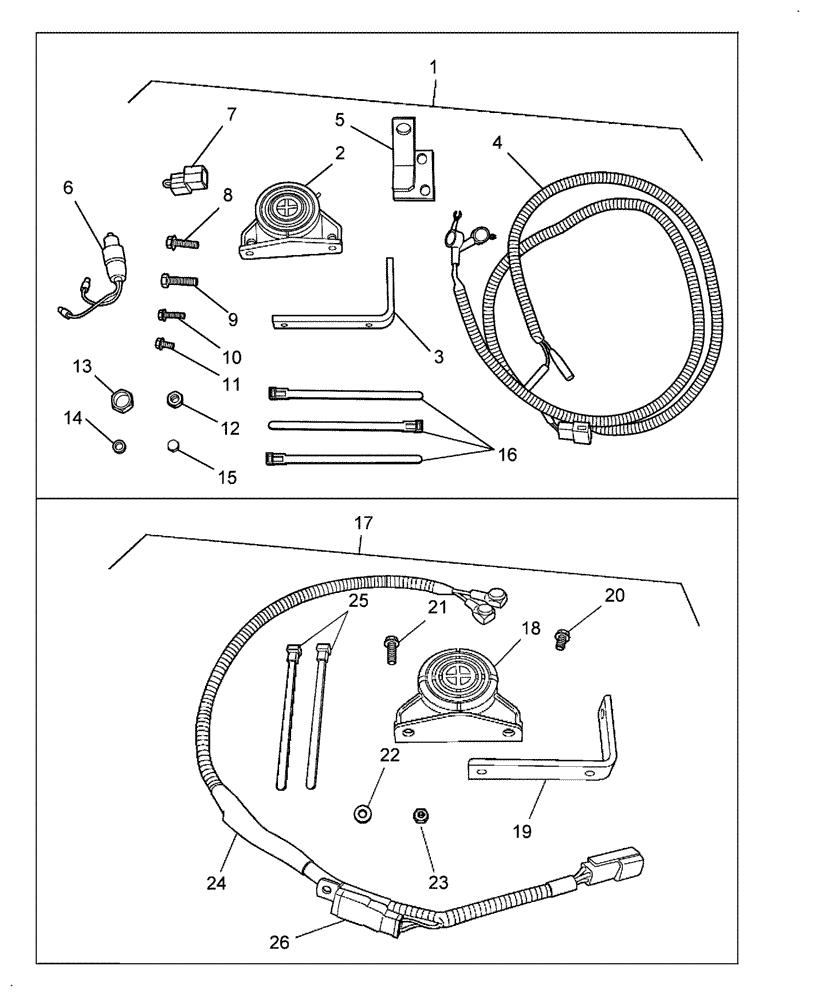

Запчасти Case IH DX55 (06.05) - BACK UP ALARM SSS SBA385071310, SBA385071311 & EHSS SBA385071320 (06) - ELECTRICAL SYSTEMS

1

SBA385071310

REVERSE ALARM

SSS ROPS Includes: Ref. 2-6,8,10,11,14-16

1шт.

1

SBA385071311

FIP KIT

SSS ROPS & CAB Includes: Ref. 2-16

1шт.

2

SBA385250160

ALARM

Backup Alarm

1шт.

3

SBA385953590

BRACKET, SUPPORTING

Support Bracket

1шт.

4

SBA385612880

WIRE HARNESS

Wiring Harness

1шт.

5

SBA385953580

BRACKET, SUPPORTING

Support Bracket, Alarm Switch

1шт.

6

SBA385201260

SWITCH

Alarm

1шт.

7

SBA385613080

WIRE HARNESS

Jumper, Wire Harness

1шт.

Included in SBA385071311 Kit

1шт.

8

SBA010800825

BOLT

M8 x 1.25 x 25

2шт.

Included in SBA385071310 Kit

1шт.

8

SBA010800825

BOLT

M8 x 1.25 x 25

1шт.

Included in SBA385071311 Kit

1шт.

9

SBA011810830

BOLT

M8 x 1.25 x 30

1шт.

Included in SBA385071311 Kit

1шт.

10

SBA010800620

BOLT

M6 x 1.0 x 20

1шт.

11

SBA010800612

BOLT

M6 x 1.0 x 12

1шт.

12

SBA023100008

NUT

M8

1шт.

Included in SBA385071311 Kit

1шт.

13

SBA020800014

NUT,M14 x 1.5

1шт.

14

SBA026100006

WASHER

M6

1шт.

15

SBA022400006

NUT

M6

1шт.

16

SBA398750220

CABLE TIE

CABLE STRAP 145mm 5-23/32"

3шт.

17

SBA385071320

REVERSE ALARM

EHSS

1шт.

18

SBA385250160

ALARM

Backup Alarm

1шт.

19

SBA385953590

BRACKET, SUPPORTING

Support Bracket

1шт.

20

SBA010800612

BOLT

M6 x 1.0 x 12

1шт.

21

SBA010800620

BOLT

M6 x 1.0 x 20

1шт.

22

SBA026100006

WASHER

M6

1шт.

23

SBA022400006

NUT

M6

1шт.

24

SBA385612890

HARNESS

Wiring Harness

1шт.

25

SBA398750220

CABLE TIE

CABLE STRAP 145mm 5-23/32"

2шт.

26

SBA385230300

RELAY

1шт.
