(04.03.05) - POWER STEERING PUMP ASSEMBLY

Запчасти Case IH DX55 (04.03.05) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING

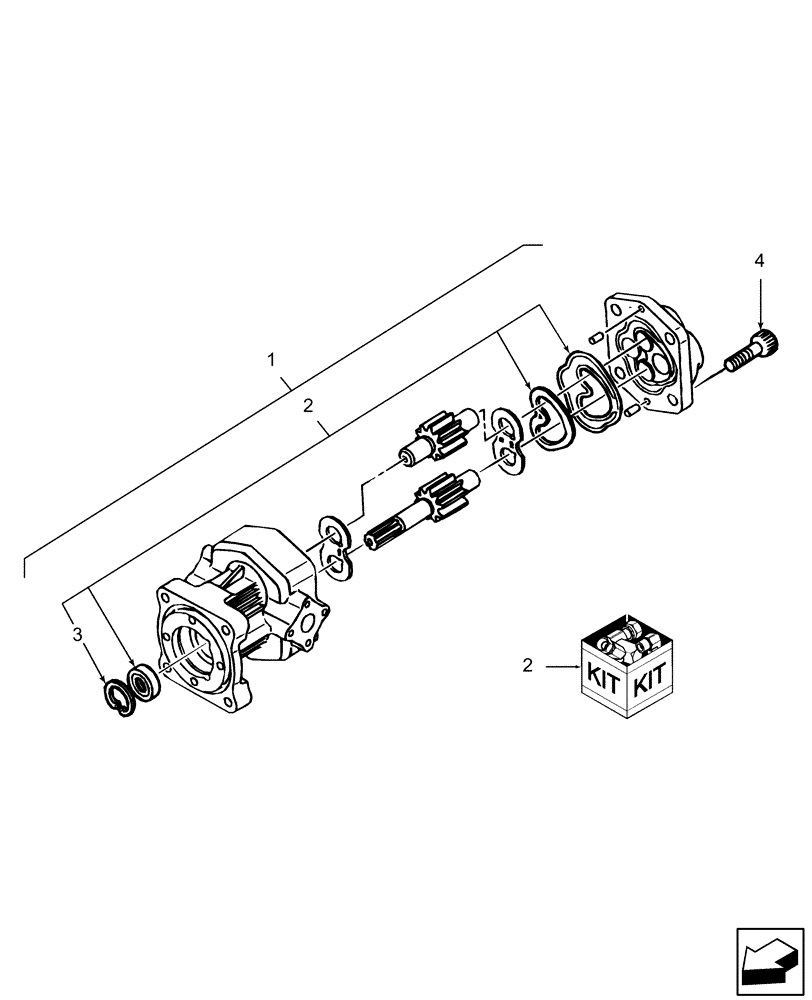

Схема запчастей Case IH DX55 - (04.03.05) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING
4
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA340451020

HYDRAULIC PUMP

Power Steering Includes: Ref. 2-4

1шт.

SBA340451020R

REMAN-HYD PUMP

DX60, DX55 BOTH W/CAB PIN # Z7DH20002 (8/07-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340490224

SEAL KIT

Power Steering

1шт.

3

301642

SNAP RING,M28, Int

1шт.

4

SBA340490187

BOLT

4шт.
