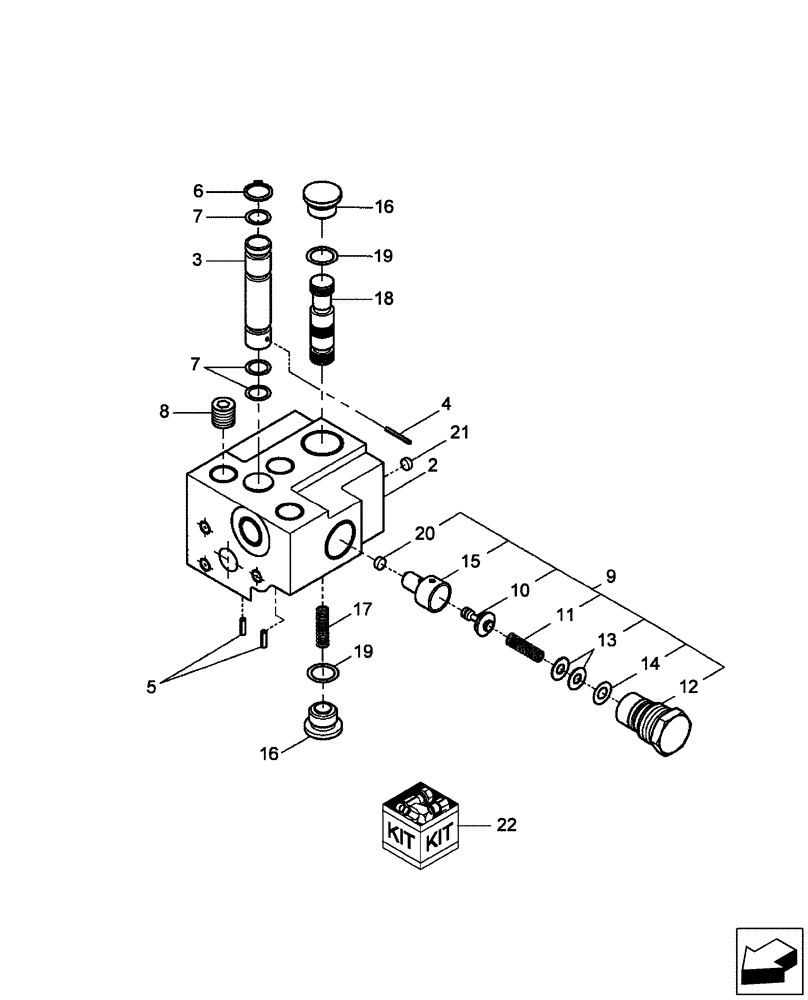

Запчасти Case IH DX55 (04.03.04) - MANIFOLD DIVERTER BLOCK - SSS - SBA340016731 (04) - FRONT AXLE & STEERING

1

SBA340016731

VALVE

Block, Manifold Diverter, Includes: Ref. 2-22

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

SBA030300220

ROLL PIN

1шт.

5

SBA030300310

ROLL PIN

2шт.

6

NNA301615

SNAP RING

1шт.

7

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

P10

3шт.

8

SBA064409005

PLUG,3/8"-18 NPTF

3шт.

9

SBA340293828

VALVE

Relief Valve. Includes: Ref. 10-15 & 20

1шт.

10

NSS

NOT SOLD SEPARAT

Needle

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

SBA340293825

SHIM KIT

1шт.

14

SBA052400180

O-RING

S18

1шт.

15

SBA340293788

VALVE

Poppet

1шт.

16

SBA340293827

PLUG

Plug

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Diverter Spool

1шт.

19

SBA052110140

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

2шт.

21

SBA064400010

PLUG

1шт.

22

SBA340293787

SEAL KIT

Includes: Ref. 7,14,19

1шт.
