Запчасти Case IH DX55 (04.02) - STEERING COLUMN GEARBOX & PIPING (04) - FRONT AXLE & STEERING

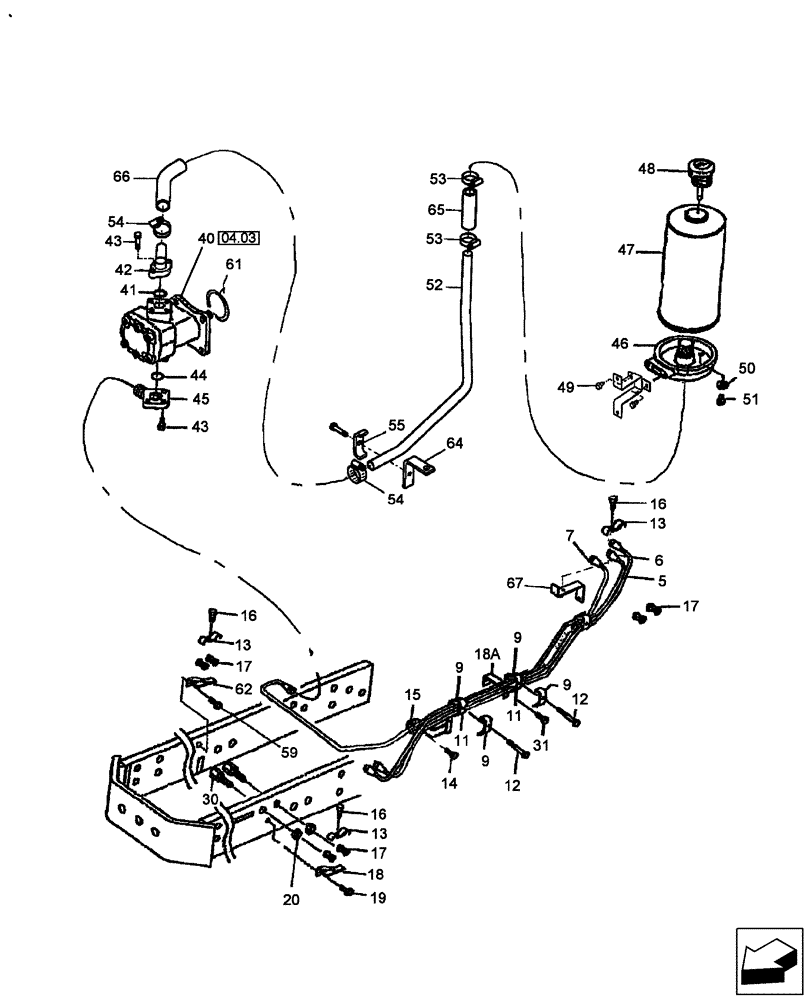

Схема запчастей Case IH DX55 - (04.02) - STEERING COLUMN GEARBOX & PIPING (04) - FRONT AXLE & STEERING
41
11
44
12
9
54
15
40
53
19
13
48
16
14
42
31
9
59
43
65
9
17
43
18
5
16
13
12
11
50
04.03
49
16
9
30
52
20
55
17
45
7
18a
67
62
61
51
17
6
46
54
66
53
47
13
64

Артикул

Название

Примечание

Количество

5

SBA340550760

PIPE

Oil, Left Turn Line

1шт.

6

SBA340550780

PIPE

Oil, Right Turn Line

1шт.

7

SBA340550720

PIPE

Oil, Pressure Line

1шт.

9

SBA399112130

CLAMP

4шт.

11

SBA398115630

CLAMP

2шт.

12

SBA011310650

BOLT

M6 x 50

2шт.

13

SBA399112750

CLAMP

3шт.

14

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

1шт.

15

SBA399113540

CLAMP

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

4шт.

17

SBA398122940

RUBBER WEATHERSTRIP

6шт.

18

SBA399113471

CLAMP

CLAMP

1шт.

18a

SBA399102210

CLAMP

1шт.

19

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

20

100020

NUT,M16 x 2.0, Cl 8

2шт.

30

SBA340674260

ADAPTER

2шт.

40

SBA340451020

HYDRAULIC PUMP

8.8CC Power Steering

1шт.

SBA340451020R

REMAN-HYD PUMP

DX60, DX55 BOTH W/CAB PIN # Z7DH20002 (8/07-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

41

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

1шт.

42

SBA340622500

TUBE

1шт.

43

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

5шт.

44

83938932

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

(Replaces SBA052110200)

1шт.

45

SBA340622520

FLANGE

1шт.

46

SBA340621060

PLATE

1шт.

47

SBA360101470

FILTER ASSY

Power Steering

1шт.

48

SBA398430520

DIPSTICK

1шт.

48

SBA398430521

DIPSTICK

1шт.

USED ON & ABOVE DRIVELINE 4C300018-DX55 W/SSS,4C400051-DX55 W/EHSS,4C700026-DX60 W/SSS,4C800056-DX60 W/EHSS

1шт.

49

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

50

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

M8

1шт.

SBA010800812

BOLT

M8 x 12

1шт.

52

SBA340615970

PIPE

Oil

1шт.

53

SBA398756280

HOSE CLAMP

2шт.

54

SBA198758050

BAND

2шт.

55

SBA399113480

CLAMP

1шт.

56

PL

PROCURE LOCALLY

1шт.

59

SBA011510835

BOLT

M8 x 35

1шт.

61

SBA052300600

O-RING,G60

1шт.

62

SBA399102260

CLAMP

1шт.

63

SBA011310630

BOLT

M6x30

1шт.

64

SBA340793270

SUPPORT

1шт.

65

SBA340693240

HOSE

Oil

1шт.

66

SBA340693530

HOSE

Oil

1шт.

67

SBA399102280

CLAMP

1шт.

Выбрано товаров: 45
