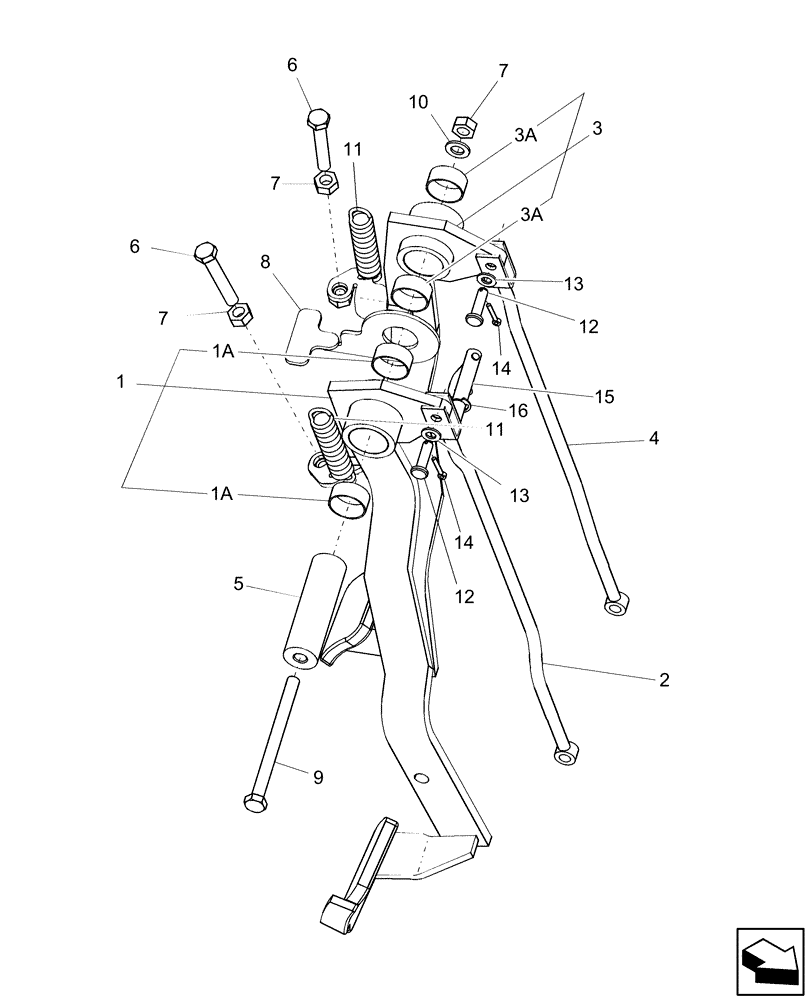

Запчасти Case IH DX55 (03.01.01) - BRAKE PEDALS (03) - TRANSMISSION

1

87637970

PEDAL

PEDAL, RH Brake Includes: Ref. 1A

1шт.

1a

86554967

BUSHING

1шт.

2

87388090

LINKAGE

LINKAGE, VERTICAL, BRAKE

1шт.

3

87637969

PEDAL

PEDAL, LH Brake Pedal Includes: Ref. 3A

1шт.

3a

86554967

BUSHING

1шт.

4

87637962

LINKAGE

Front LH Brake

1шт.

5

87397727

SHAFT

Brake Pedal

1шт.

6

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

100016

NUT,M10 x 1.5, Cl 8

3шт.

8

87397733

ACTUATOR

Brake Switch

1шт.

9

84058418

BOLT,Hex, M10 x 125mm, Cl 8.8

1шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

11

86530740

SPRING

Pedal

2шт.

12

87016663

CLEVIS PIN,M8 x 30

2шт.

13

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

14

80756

COTTER PIN,1/8" x 3/4"

2шт.

15

87682496

PIN

PIN, Brake Lock Cross

1шт.

16

86402967

RING

Retaining

1шт.
