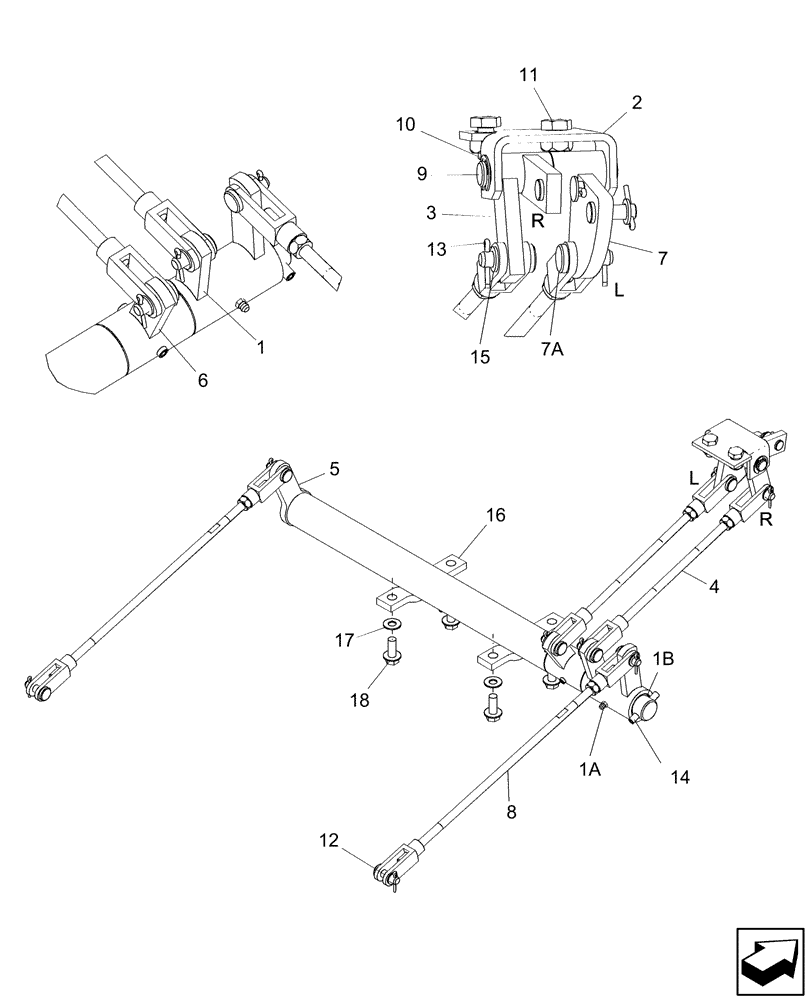

Запчасти Case IH DX55 (03.01) - BRAKE LINKAGE (03) - TRANSMISSION

1

87642451

BELLCRANK

BELL CRANK, RH CENTER Includes: Ref. 2A & 2B

1шт.

1a

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

1b

86554967

BUSHING

2шт.

2

86405299

BRACKET

Brake

1шт.

3

87637961

BELLCRANK

HUB, BRAKE PEDAL

2шт.

4

87684356

LINK

LINK, CENTER BRAKE

2шт.

5

87642454

SHAFT

LEVER, CENTER PIVOT

1шт.

6

87642452

BELLCRANK

HUB, LH BRAKE CENTER PIVOT

1шт.

7

87642440

BELLCRANK

BELL CRANK, FRONT Includes: Ref. 7A

1шт.

7a

86524680

BUSHING

2шт.

8

86400169

ROD

LINK, BRAKE

2шт.

9

86405300

SHAFT

Brake Bracket

1шт.

10

1826919

SNAP RING

1шт.

11

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

12

86530992

CLEVIS PIN,10mm OD x 29.1mm L

8шт.

13

80756

COTTER PIN,1/8" x 3/4"

10шт.

14

300873

ROLL PIN

2шт.

15

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

10шт.

16

87642456

SUPPORT

SUPPORT, BRAKE PIVOT

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.
