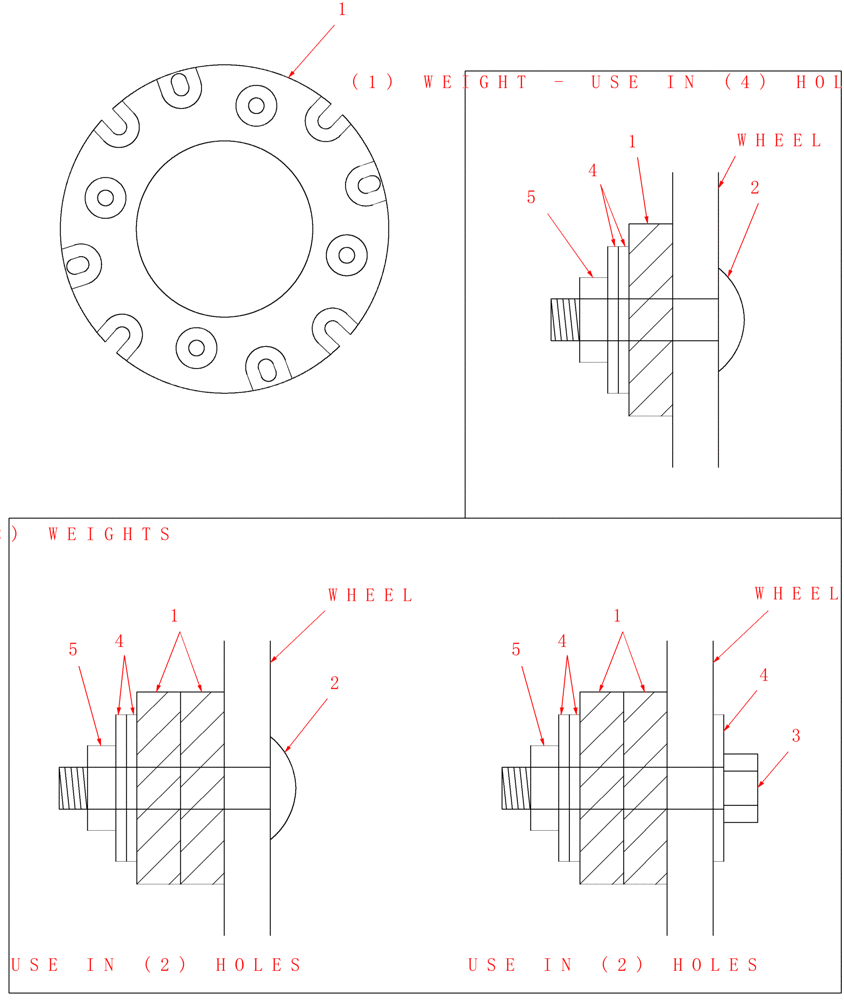

Запчасти Case IH DX55 (11.04) - REAR WHEEL WEIGHTS, 105 LBS., AG ONLY - 710470026 (11) - WHEELS/TRACKS

1

710470026

WHEEL WEIGHT

Rear, 105 Lbs, AG Only

1шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(1) Weight Per Wheel

4шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(2) Weight Per Wheel

2шт.

3

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

Used With (2) Weights Per Wheel

2шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used With (1) Weight Per Wheel

8шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used With (2) Weights Per Wheel

10шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

Use (4) w/Both (1) & (2) Weights Per Wheel

4шт.
