Запчасти Case IH DX55 (10.16) - COMPRESSOR MOUNT (10) - OPERATORS PLATFORM/CAB

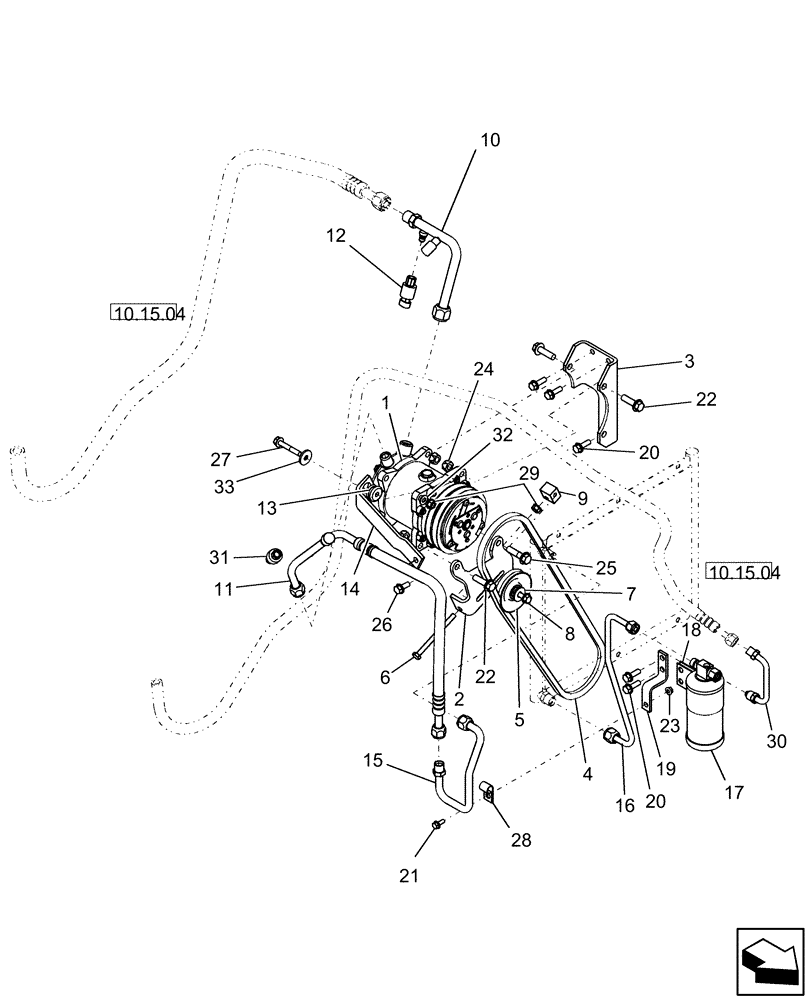

Схема запчастей Case IH DX55 - (10.16) - COMPRESSOR MOUNT (10) - OPERATORS PLATFORM/CAB
3
5
8
33
1
22
10
4
29
32
28
12
11
7
10.15.04
10.15.04
15
26
24
21
20
18
31
13
16
6
19
23
22
9
25
17
2
14
20
30
27

Артикул

Название

Примечание

Количество

1

87362509

AIRCOND. COMPRESSOR

1шт.

87362509R

REMAN-A/C COMPRESSOR

DX55 PIN # Z7DH21002 & ABOVE, DX60 PIN # Z7DH20002 Both 4 CYL W/CAB (8/07-)

1шт.

87362509C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

2

87557058

BRACKET

Compressor

1шт.

3

87550065

BRACKET

BRACKET, COMPRESSOR

1шт.

4

86401123

V-BELT,13.00 mm W x 1180.00 mm L

Air Conditioner

1шт.

5

87606706

PULLEY,78.49mm OD

Idler

1шт.

6

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

1шт.

7

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

9

87582270

BLOCK

Idler Adjust

1шт.

10

87675174

TUBE,15.9 mm OD x 133, 130 mm L

Compressor, Suction

1шт.

11

87550055

HOSE ASSY.

Discharge

1шт.

12

87363058

PRESSURE SWITCH

Low Pressure

1шт.

13

86543788

ISOLATOR

ISOLATOR

1шт.

14

87550061

BRACKET

BRACKET, RADIATOR

1шт.

15

87550056

TUBE,10.22 mm ID x 12.7 mm OD x 155, 75 mm L

Condensor

1шт.

16

87550059

TUBE,7.74 mm ID x 9.5 mm OD x 262 mm L

Condensor/Receiver

1шт.

17

82023593

RECEIVER-DRYER

1шт.

18

87673835

BRACKET

Dehydrator

1шт.

19

87550060

BRACKET

BRACKET, COOLER TUBE

1шт.

20

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

21

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

22

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

23

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

25

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

26

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

27

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

28

708182

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

30

87550054

TUBE,7.72 mm ID x 9.5 mm OD x 107, 45 mm L

Cooler Connector

1шт.

31

87363059

PRESSURE SWITCH

High

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

Выбрано товаров: 34
