Запчасти Case IH DX55 (10.09) - DELUXE SWIVEL SEAT & ARM REST KIT - 718852026 (10) - OPERATORS PLATFORM/CAB

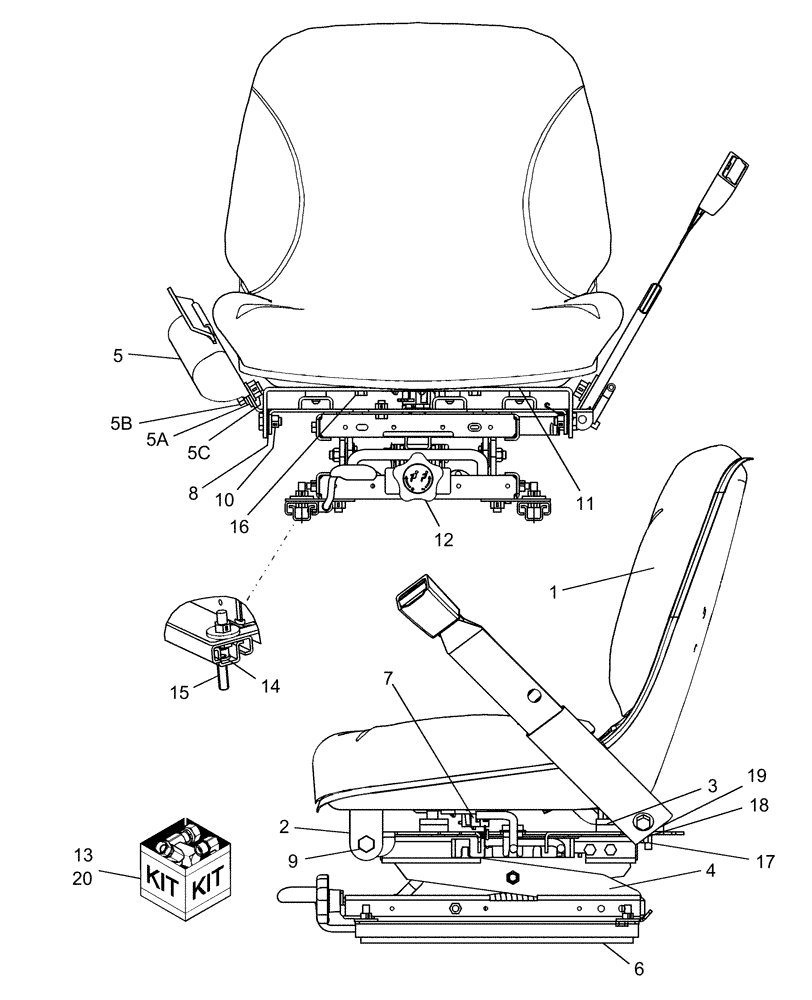

Схема запчастей Case IH DX55 - (10.09) - DELUXE SWIVEL SEAT & ARM REST KIT - 718852026 (10) - OPERATORS PLATFORM/CAB
13
5b
18
3
10
9
19
6
12
15
20
16
8
1
14
5
5a
2
17
11
4
7
5c

Артикул

Название

Примечание

Количество

1

87388683

SEAT

Wheat Color

1шт.

1

87498086

SEAT

Confetti-Wheat Color

1шт.

USED ON & ABOVE PIN # Z9DH22082

1шт.

2

87385525

SEAT PLATE

1шт.

3

276467

BUMPER

W/Clip

3шт.

4

87636111

SUSPENSION

1шт.

5

86403923

SAFETY BELT ,48.00 mm W

1шт.

5a

PL

PROCURE LOCALLY

Washer, Flat

4шт.

5b

PL

PROCURE LOCALLY

Bolt, Hex HD 7/16-20

2шт.

5c

PL

PROCURE LOCALLY

Nut, Centerlock 7/16-20

2шт.

6

87525344

SLIDE

Kit

1шт.

7

87385234

SWITCH

Operator's Presence

1шт.

8

87363666

SPACER

Black Polyethylene Plastic, 1.57mm Thick Pivot Bushing

2шт.

9

87385284

SPECIAL BOLT

3/8

2шт.

10

PL

PROCURE LOCALLY

Nut, CenterLock 3/8-16

2шт.

11

87636088

SWIVEL PIVOT

Swivel Assembly Includes: Swivel Handle

1шт.

12

87385286

KNOB

1шт.

13

87385287

SERVICE KIT

Swivel Hardware

1шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

15

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

16

PL

PROCURE LOCALLY

Bolt, Hex HD, 5/16-18x.75

2шт.

17

PL

PROCURE LOCALLY

Socket Head Capscrew, 5/16-18x.75

1шт.

18

PL

PROCURE LOCALLY

Spacer

1шт.

19

PL

PROCURE LOCALLY

Nut, Centerlock 5/16-18

1шт.

20

718852026

ARMREST

KIT, Includes:

1шт.

Not Illustrated

1шт.

(1) ARMREST ASSY, LH

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.

Выбрано товаров: 36
