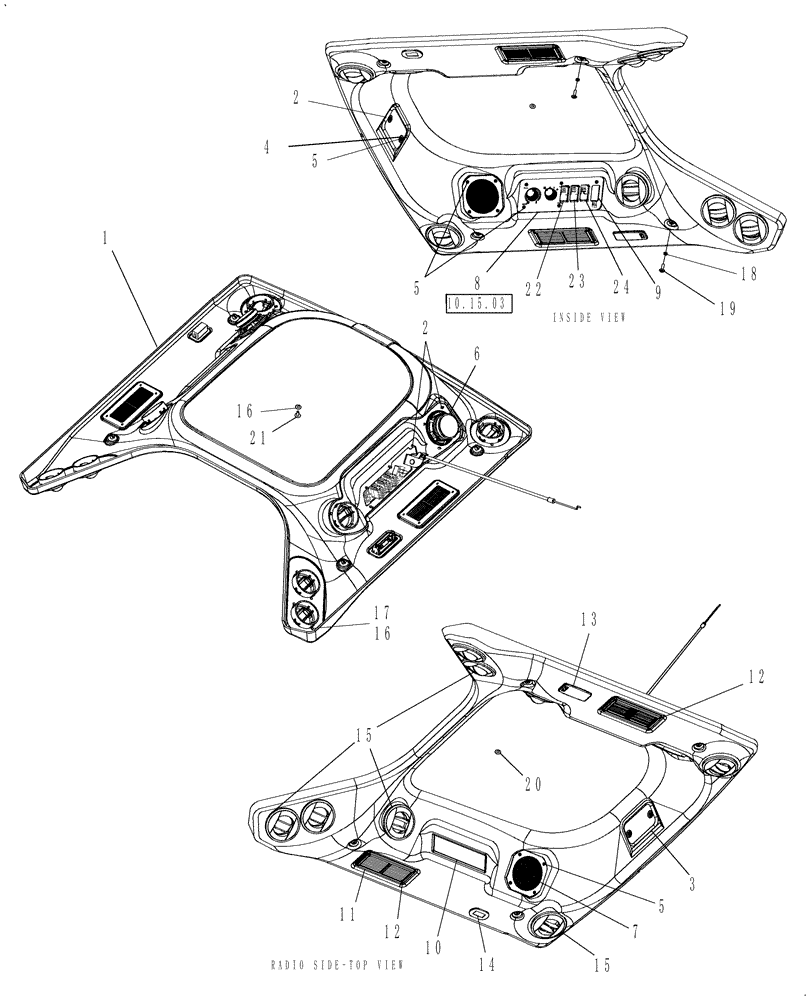

Запчасти Case IH DX55 (10.03) - HEADLINER (10) - OPERATORS PLATFORM/CAB

1

87359412

LINER

Wheat

1шт.

2

833-40304

SPRING NUT,M4, U

16шт.

3

87540744

COVER

Fuse Access

1шт.

4

84183819

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

2шт.

5

540-720

SCREW,Cross Pan Hd, M4 x 16

16шт.

6

82014549

SPEAKER

100mm Flush Mounting Twin Cone

2шт.

7

82014734

GRILLE

Speaker

2шт.

8

0C

ORDER COMPONENTS

Panel, HVAC Controls & Rocker Switches

1шт.

9

406324A2

PLUG

Cover, Switch Hole

1шт.

10

87105189

COVER

Radio Opening

1шт.

11

87327755

GRILLE

HVAC Recirculation

2шт.

12

87551764

FASTENER

Micro-Tuflok

8шт.

13

1983391C1

LAMP,12V, 10W

Dome

1шт.

14

84067961

CEILING LAMP

1шт.

15

82027900

DIFFUSER

Black

8шт.

16

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

17шт.

17

151-535

RIVET,Pop, 1/8" x .462"

16шт.

18

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

19

87560750

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

SCREW. M6 x 20

4шт.

20

87612315

FASTENER

DISC, 20mm Velcro Loop, Light Gray Nylon

1шт.

21

151-537

RIVET,Pop, 1/8" x .650"

1шт.

22

87722831

SWITCH

Rocker, A/C ON/OFF

1шт.

23

87722832

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

24

87722833

SWITCH

Rocker, Work Lights

1шт.
