Запчасти Case IH DX55 (10.02) - ROOF (10) - OPERATORS PLATFORM/CAB

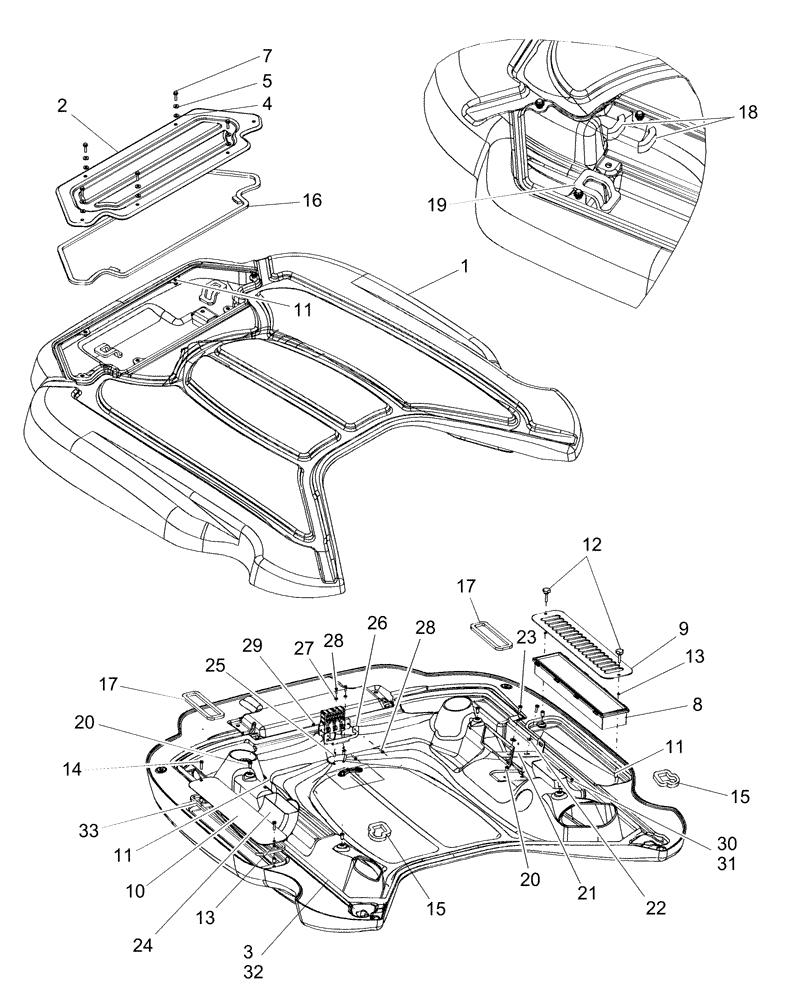

Схема запчастей Case IH DX55 - (10.02) - ROOF (10) - OPERATORS PLATFORM/CAB
8
3
15
31
24
28
11
13
26
11
16
17
9
13
32
21
20
18
4
30
29
1
25
27
20
10
2
12
14
23
5
19
7
11
17
28
22
15
33

Артикул

Название

Примечание

Количество

1

87628293

ROOF

Roof, Upper & Lower

1шт.

2

87628300

PANEL

PANEL, Roof Access

1шт.

3

PL

PROCURE LOCALLY

Adhesive, Serial Range: Roof-Frame

1шт.

4

5092953

RUBBER WASHER,6mm ID x 16mm OD x 2mm Thk

Rubber

6шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

7

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

6шт.

8

87761808

AIR FILTER

Cab

1шт.

9

87568359

PLATE

Filter Retainer

1шт.

10

87362024

PLATE

Air Duct Cap

1шт.

11

87106208

THREADED INSERT,M6

10шт.

12

44911647

KNOB,M6 x 30mm

M6

2шт.

13

87581178

LOCK WASHER

WASHER, M6 Retaining

4шт.

14

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

15

87636795

FOAM

Lower Roof, A-Posts

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

16

87106806

SEAL

Roof Panel Access

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

17

87636796

FOAM

Lower Roof C-Posts

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

18

87106806

SEAL

HVAC Discharge

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

19

87636797

FOAM

HVAC Box Condensate

2шт.

87106806 come in bulk. Measures 8mm High, 25mm Wide & 5400 mm Long. Cut to length needed

1шт.

20

322073A1

NUT

M6

6шт.

21

87328626

BRACKET

Radio Mounting

1шт.

22

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

23

540-719

SCREW,Cross Pan Hd, M6 x 20

2шт.

24

87348612

AIR DUCT

DUCT, Recirculation Air

2шт.

25

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

Rivet Nut, M4 X 0.7

2шт.

26

87580969

BRACKET

Bracket, Fuse Block

1шт.

27

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

28

540-720

SCREW,Cross Pan Hd, M4 x 16

M4 x 16

4шт.

29

824-1404

NUT,M4, Cl 5

2шт.

30

95-61020

WASHER,13/64" x 3/4" x .060"

6шт.

31

87016621

RIVET,Pop, 4.76mm OD x 11.43mm L

6шт.

32

PL

PROCURE LOCALLY

Betaseal Adhesive Must Form a Continuous Air & Water Tight Seal between Lower Roof & Cab Frame

1шт.

33

1994968C1

FOAM INSULATION

Comes in 1 ft strips. Need 8" X 8" X 637" Long

1шт.

Выбрано товаров: 38
