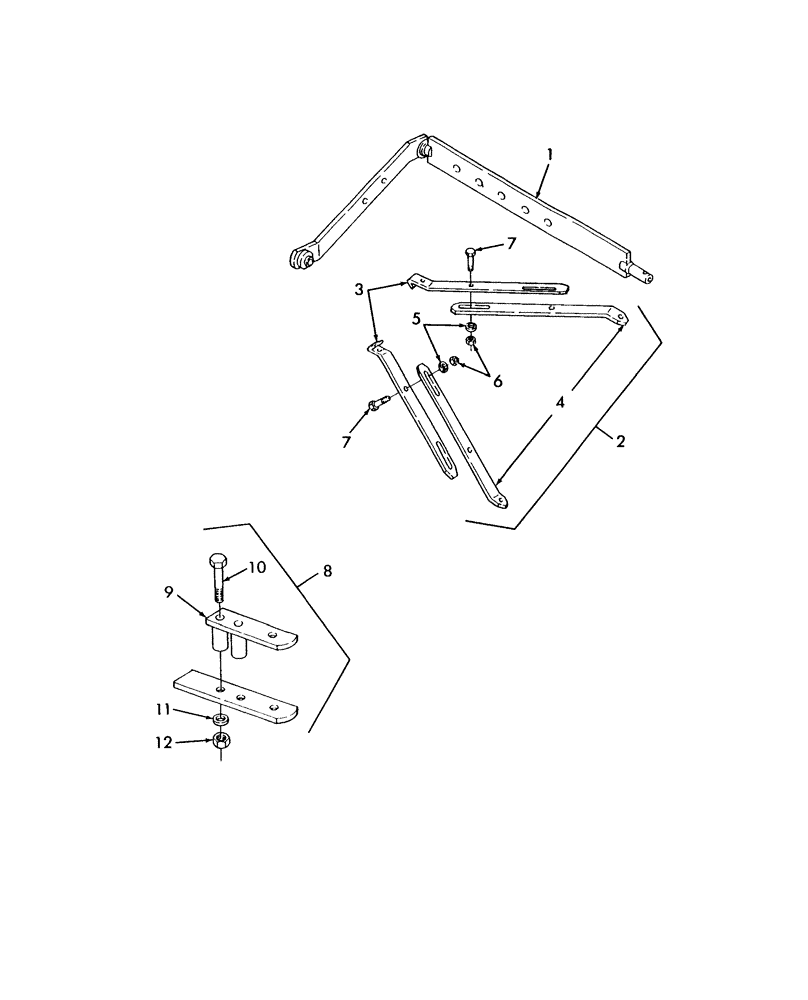

Запчасти Case IH DX55 (09.02) - DRAWBAR KITS (09) - IMPLEMENT LIFT

1

251006F

DRAWBAR

1шт.

Requires the use of Drawbar Stay Kit (Ref. 2) when installing linkage drawbar.

1шт.

2

F0NNC830AA

KIT

Drawbar Stay, Cat. 1, Includes: Ref. 3 thru 7

1шт.

3

86539332

STAY

Upper

2шт.

4

86539333

STAY

Lower

2шт.

5

351428S8

WASHER,7/16" x 7/8" x 1/8" Thk

4шт.

6

50456

NUT,7/16"-20, G5

4шт.

7

304706S36

BOLT,Hex, 7/16"-20 x 1 1/8", G5

4шт.

8

SBA370070300

KIT

Swinging Drawbar Extension, Includes: Ref. 9 thru 12

1шт.

Requires the use of Drawbar Stay Kit (Ref. 2) when installing linkage drawbar.

1шт.

9

SBA370700340

HITCH

Drawbar

1шт.

10

SBA010109158

BOLT

M20 x 160

2шт.

11

SBA027100020

LOCK WASHER

M20

2шт.

12

SBA020100020

NUT

M20

2шт.
