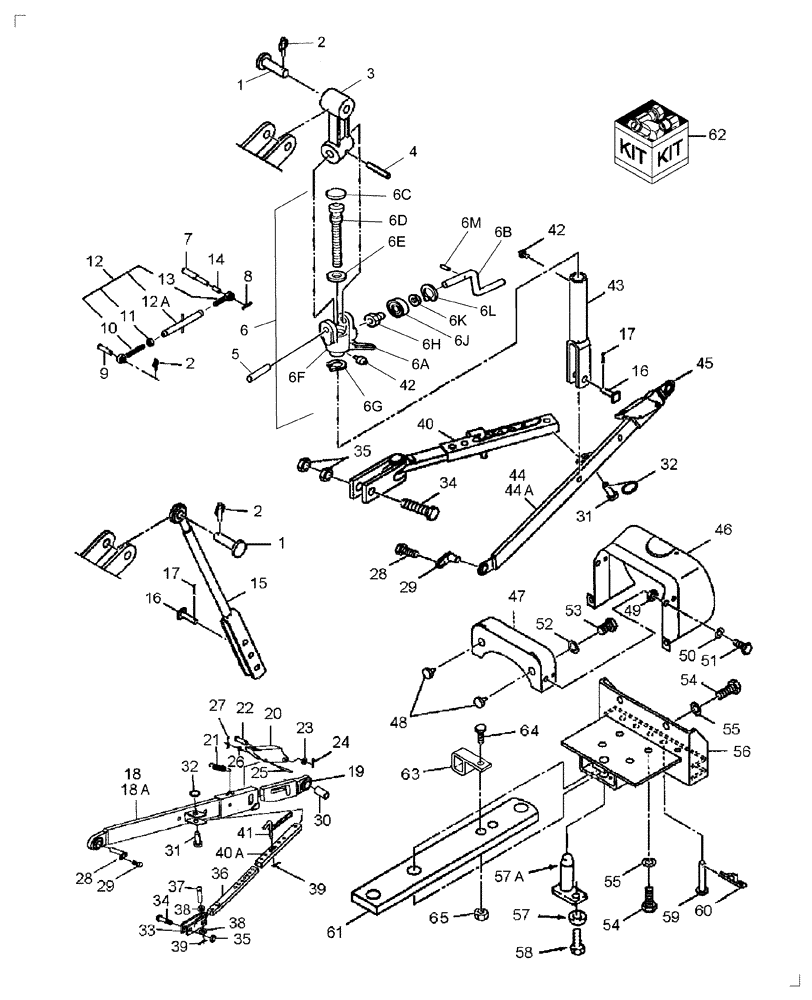

Запчасти Case IH DX48 (09.01) - 3PT HITCH (09) - IMPLEMENT LIFT

1

SBA370910310

PIN

2шт.

2

SBA370900030

PIN

3шт.

3

SBA370240131

FLEXIBLE JOINT

1шт.

4

412660

PIN,6mm OD x 45mm L, Slotted

Spring

1шт.

5

SBA370910531

PIN

1шт.

6

SBA370010572

LIFTING ROD

Rod, Lifting, RH Length of Handle is 70 mm Includes: Ref. 6A-6M & 42

1шт.

6a

SBA398211971

SPRING

Crank Locking

1шт.

6b

SBA370820171

HANDLE

Crank

1шт.

6c

SBA064100050

PLUG

Expansion

1шт.

6d

SBA370201000

ROD

Lift

1шт.

6e

SBA398560730

BEARING ASSY

Thrust

1шт.

6f

NSS

NOT SOLD SEPARAT

Joint

1шт.

6g

SBA036100030

SNAP RING

M30

1шт.

6h

SBA370810090

BEVEL GEAR

1шт.

6j

SBA040136004

BEARING ASSY

1шт.

6k

SBA036100020

SNAP RING

M20

1шт.

6l

SBA036500042

SNAP RING

M42

1шт.

6m

SBA030300518

PIN

Spring

1шт.

7

SBA370910550

PIN

1шт.

8

SBA399730010

PIN

1шт.

9

SBA370911000

PIN

1шт.

10

SBA370201722

LIFTING ROD

RH

1шт.

11

SBA399350130

LOCK NUT

1шт.

12

SBA370011660

LIFTING ROD

Top Link Includes: Ref. 10 thru 13

1шт.

12a

SBA370400430

TURNBUCKLE

1шт.

13

SBA370202690

LIFTING ROD

LH

1шт.

14

SBA399235820

COLLAR

2шт.

15

SBA370202710

LIFTING ROD

1шт.

16

SBA370910890

PIN

2шт.

16

SBA370910891

PIN,18mm OD

2шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

17

SBA030105035

SPLIT PIN

2шт.

17

SBA030109001

SPLIT PIN

2шт.

18

SBA370040220

LOWER LINK

LH Includes: Ref. 18A thru 27 & 30

1шт.

18

SBA370040221

LOWER LINK

LH, Width of Ball Joint 45mm Includes: Ref. 18A thru 27 & 30

1шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

18

SBA370040222

LOWER LINK

LH, Width of Ball Joint 35mm Includes: Ref. 18A thru 27 & 30

1шт.

USED ON & ABOVE PIN # HDG500157 DX48 & HDG600589 DX55

1шт.

18a

SBA370101750

LOWER LINK

LH Flexible End

1шт.

19

SBA370101251

LOWER LINK

LH Flexible End

1шт.

Replaced by SBA370101870 LH Flexible Link End & SBA399235940 Collar

1шт.

19

SBA370101870

LOWER LINK

LH Flexible End

1шт.

USED ON & ABOVE PIN # HDG500157 DX48 & HDG600589 DX55

1шт.

20

SBA370770121

PLATE

2шт.

21

SBA398211960

SPRING

2шт.

22

SBA370910510

PIN

2шт.

22

SBA370910511

PIN

2шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

23

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

24

SBA370910510

PIN

2шт.

24

SBA030105032

PIN

2шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

25

SBA031311045

PIN

M10 x 45

2шт.

26

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

27

SBA030103020

COTTER PIN

2шт.

28

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

2шт.

29

SBA370900450

PIN

2шт.

29

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

2шт.

30

SBA399232500

COLLAR

2шт.

30

SBA399235940

COLLAR

2шт.

USED ON & ABOVE PIN # HDG500157 DX48 & HDG600589 DX55

1шт.

31

SBA399611950

PIN

2шт.

32

SBA398214870

SPRING

2шт.

33

SBA370510190

STABILIZER

Clevis

2шт.

34

SBA010431265

BOLT

2шт.

34

SBA010239002

BOLT

2шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

35

SBA022500012

NUT

M12

2шт.

35

SBA021000012

NUT

M12

4шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

36

SBA370501150

STABILIZER

Male

2шт.

37

SBA031311255

PIN

2шт.

38

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

39

SBA030103220

COTTER PIN

3 x 20

4шт.

40

0C

ORDER COMPONENTS

Stabilizer Includes: Ref. 33,36,37,38,40A & 41

1шт.

SBA370050370

1шт.

40a

SBA370501160

STABILIZER

Female

1шт.

41

SBA370501170

STABILIZER

Pin

1шт.

42

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

2шт.

43

SBA370201121

LIFTING ROD

1шт.

44

SBA370040230

LOWER LINK

RH Includes: Ref. 20 thru 27 & 30, 44A & 45

1шт.

44

SBA370040231

LOWER LINK

RH Includes: Ref. 20 thru 27 & 30, 44A & 45

1шт.

USED ON & ABOVE PIN # HDG500068 DX48 & HDG600128 DX55

1шт.

44

SBA370040232

LOWER LINK

RH Includes: Ref. 20 thru 27 & 30, 44A & 45

1шт.

USED ON & ABOVE PIN # HDG500157 DX48 & HDG600589 DX55

1шт.

44a

SBA370101770

LOWER LINK

RH Flexible End

1шт.

45

SBA370101241

LOWER LINK

RH Flexible End

1шт.

Replaced by SBA370101890 LH Flexible Link End & SBA399235940 Collar

1шт.

45

SBA370101890

LOWER LINK

RH Flexible End

1шт.

USED ON & ABOVE PIN # HDG500157 DX48 & HDG600589 DX55

1шт.

46

SBA378107160

GUARD

PTO

1шт.

47

SBA378121270

BRACKET

Stay

1шт.

48

SBA398110110

BUMPER

Rubber

2шт.

49

9706690

NUT,M8 x 1.25, Cl 8

2шт.

50

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

51

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

52

86729275

LOCK WASHER,5/8 0.634 CST ZND

(M16)

2шт.

53

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

54

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

55

86729275

LOCK WASHER,5/8 0.634 CST ZND

(M16)

2шт.

56

SBA370651810

HITCH

1шт.

57

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

57a

SBA370901130

PIN

1шт.

58

SBA011511016

BOLT

M10 x 16

1шт.

59

SBA370911340

PIN

2шт.

60

SBA031100016

PIN

2шт.

61

SBA370710581

DRAWBAR

1шт.

62

86402517

KIT

Rear Counter Weight Bracket

1шт.

63

1973937C3

SUPPORT

Bracket, Safety Chain

1шт.

64

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

65

86512555

NUT,M16 x 2, Cl 10

1шт.
