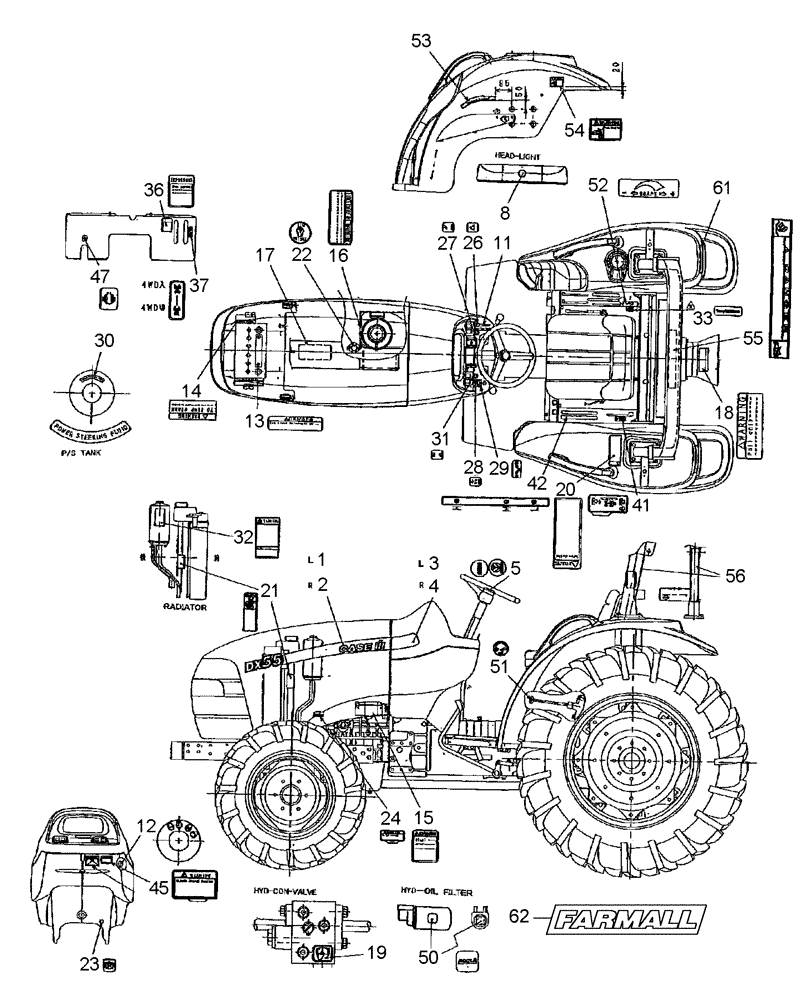

Запчасти Case IH DX48 (08.05) - DECALS (08) - SHEET METAL

1

SBA390122831

DECAL

DX55 CASE IH, LH

1шт.

1

SBA390122851

DECAL

DX48 CASE IH, LH

1шт.

2

SBA390122841

DECAL

CASE IH DX55, RH

1шт.

2

SBA390122861

DECAL

CASE IH DX48, RH

1шт.

3

SBA390160350

DECAL

LH Rear Hood

1шт.

4

SBA390160360

DECAL

RH Rear Hood

1шт.

5

SBA390101470

DECAL

CIH, Steering Wheel

1шт.

8

SBA390101480

DECAL

1шт.

11

SBA390430290

DECAL

Throttle

1шт.

12

SBA390197280

DECAL

Ignition

1шт.

13

SBA390197660

DECAL

DANGER, Explosive Acid Poison

1шт.

14

SBA490990571

DECAL

WARNING, To Jump Start

1шт.

15

SBA190196683

PLATE

DANGER, Start Engine Only from Operator's Seat

1шт.

16

SBA390198370

DECAL

Diesel Engine Oil Information

1шт.

17

SBA390198350

DECAL

Refuel

1шт.

17

SBA390198351

DECAL

Refuel

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

17

SBA390198352

DECAL

Refuel

1шт.

USED ON & ABOVE PIN Z6NFA1011-DX48 & Z6NFB1005-DX55

1шт.

18

SBA390192293

DECAL

PTO

1шт.

19

SBA390198320

DECAL

Read Operator's Manual

1шт.

20

SBA390198380

DECAL

WARNING, Before Starting & Operating

1шт.

21

SBA390198470

DECAL

Cooling Fan

2шт.

22

SBA390230220

DECAL

Engine Oil

1шт.

23

SBA390198360

DECAL

Parking Brake

1шт.

23

SBA390198361

DECAL

Parking Brake

1шт.

USED ON & ABOVE PIN # HDG500077 DX48 & HDG600149 DX55

1шт.

24

SBA390198480

PLATE

Guard Mounting

4шт.

26

SBA390380770

DECAL

Hazzard

1шт.

27

SBA390174140

DECAL

4-Speed Transmission Lever

1шт.

28

SBA390380790

DECAL

Headlight/Worklight

1шт.

28

SBA390380791

DECAL

Headlight/Worklight

1шт.

USED ON & ABOVE PIN # HDG500047 DX48 & HDB600097 DX55

1шт.

29

SBA390380800

DECAL

Turn Signal

1шт.

30

SBA390230230

DECAL

Power Steering Fluid

1шт.

31

SBA390380780

DECAL

Rear Lights

1шт.

32

SBA390198721

DECAL

Caution, Radiator

1шт.

33

SBA390198780

DECAL

10A MAX Decal for DC Power Supply

1шт.

36

SBA390198310

DECAL

IMPORTANT, for Normal Operation

1шт.

37

SBA390173870

DECAL

Control Lever, W/FWD

1шт.

41

SBA390174160

PLATE

PTO

1шт.

41

SBA390174161

DECAL

PTO

1шт.

USED ON & ABOVE PIN # HDG500003 DX48 & HDG600007 DX55

1шт.

42

SBA390174120

DECAL

Range

1шт.

42

SBA390174121

DECAL

Range

1шт.

USED ON & ABOVE PIN # HDG500077 DX48 & HDG600149 DX55

1шт.

45

SBA390195301

DECAL

Warning

1шт.

47

SBA390198300

DECAL

Differential Lock Pedal

1шт.

47

SBA390198301

DECAL

Differential Lock Pedal

1шт.

USED ON & ABOVE PIN # HDG500077 DX48 & HDG600149 DX55

1шт.

49

SBA390198970

DECAL

Steering Column

1шт.

Not Illustrated

1шт.

50

SBA390101501

DECAL

CASE

2шт.

51

SBA390372470

DECAL

Flow Control Valve

1шт.

51

SBA390372471

DECAL

Flow Control Valve

1шт.

USED ON & ABOVE PIN # HDG500077 DX48 & HDG600149 DX55

1шт.

52

SBA390372530

DECAL

Hydraulic Lever

1шт.

52

SBA390372531

DECAL

Hydraulic Lever

1шт.

USED ON & ABOVE PIN # HDG500077 DX48 & HDG600149 DX55

1шт.

53

SBA390372490

DECAL

Position Control Lever

1шт.

54

SBA390198710

DECAL

CAUTION, OPERATE FROM SEAT

2шт.

55

SBA390197530

DECAL

1шт.

55

SBA390197531

DECAL

DANGER, TOP OF ROPS On & ASN HDG600084 DX55 & HDG500034 DX48

1шт.

56

SBA385150241

DECAL

Reflector

2шт.

61

SBA385150230

DECAL

2шт.

62

87303165

DECAL

FARMALL, Roll Bar

2шт.

Not Illustrated

1шт.

63

SBA390198960

DECAL

HOOD LOCK Open/Close Hood Decal Located on the RH of Front Frame

1шт.

Not Illustrated

1шт.

64

SBA390198970

DECAL

Tilt Steering Handling Located on the LH Dashboard

1шт.

Not Illustrated

1шт.

65

SBA390190290

DECAL

Vertical Direction SSS Clutch Pedal Spacer

1шт.

Not Illustrated

1шт.

66

SBA390190300

DECAL

Usage, SSS Clutch Pedal Spacer

1шт.

Not Illustrated

1шт.
