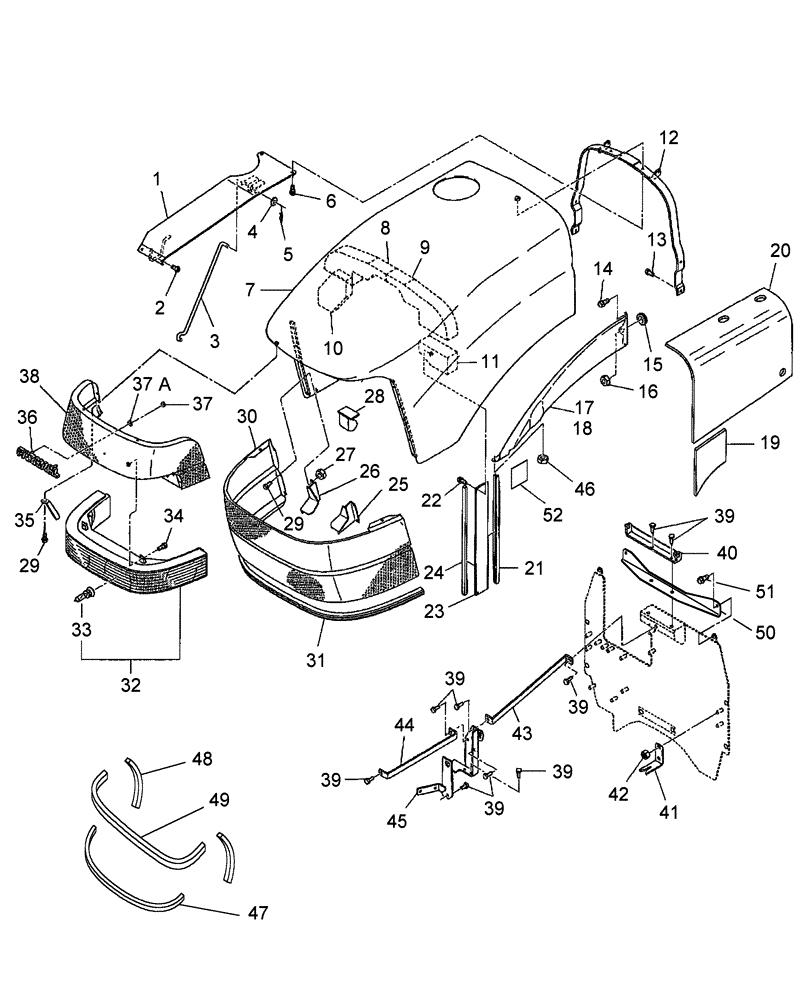

Запчасти Case IH DX48 (08.02) - HOOD (08) - SHEET METAL

1

SBA350503090

SUPPORT

Hood

1шт.

2

SBA010800812

BOLT

M8 x 12

4шт.

3

SBA344211901

ROD

Hood Stand

1шт.

4

SBA026100008

WASHER

M8

4шт.

5

SBA030102020

COTTER PIN

1шт.

6

SBA010800816

BOLT

M8 x 16

2шт.

7

SBA350104020

HOOD

1шт.

7

SBA350104021

HOOD

1шт.

USED ON & ABOVE PIN # HDG600090 DX55 & HDG500046 DX48

1шт.

8

SBA398135890

FOAM

1шт.

8

SBA398136320

FOAM

FOAM

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

9

SBA398135451

FOAM

Sponge L

1шт.

9

SBA398136280

FOAM

FOAM

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

10

SBA398135750

FOAM

1шт.

10

SBA398136290

FOAM

FOAM

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

11

SBA398135770

FOAM

1шт.

USED BELOW PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

12

SBA350503080

SUPPORT

Hood

1шт.

13

SBA010800816

BOLT

M8 x 16

4шт.

14

SBA010800616

BOLT

M6 x 16

2шт.

14

SBA010800616

BOLT

M6 x 16

4шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

15

SBA398110240

GROMMET

2шт.

16

SBA026109022

WASHER

M8

2шт.

17

SBA378116270

GUARD

L

1шт.

17

SBA378116281

GUARD

L

1шт.

USED ON & ABOVE PIN # HDG500071 DX48 & HDG600130 DX55

1шт.

18

SBA378116290

GUARD

R

1шт.

18

SBA378116301

GUARD

R

1шт.

USED ON & ABOVE PIN # HDG500071 DX48 & HDG600130 DX55

1шт.

19

SBA398135970

FOAM

Sponge

1шт.

20

SBA398135440

FOAM

1шт.

21

SBA398121870

RUBBER

2шт.

22

SBA010800610

SCREW

M6 x 10

7шт.

23

SBA350330530

BRACKET

2шт.

24

SBA398135140

FELT

2шт.

25

SBA350503220

BRACKET

L

1шт.

25

SBA350503221

BRACKET

L

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

26

SBA350503230

BRACKET

R

1шт.

26

SBA350503231

BRACKET

R

1шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

27

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

10шт.

28

SBA399112851

CLAMP

1шт.

29

SBA010800612

BOLT

M6 x 12

2шт.

30

SBA350120850

GRILLE

1шт.

31

SBA398121900

RUBBER

1шт.

31

SBA398122160

RUBBER

1шт.

USED ON & ABOVE PIN # HDG500007 DX48 & HDG600004 DX55

1шт.

32

SBA385102170

LAMP

1шт.

33

9847313

BULB,#894, 12V, 37.5W

Headlight & Worklight

4шт.

34

SBA010800612

BOLT

4шт.

35

SBA399111960

CLAMP

4шт.

36

86405242

EMBLEM CASE/IH

FARMALL

1шт.

37

SBA399370900

NUT

2шт.

37a

SBA398122210

RUBBER BAND

Washer

2шт.

38

SBA350120870

GRILLE

1шт.

39

SBA011510816

BOLT

M8 x 16

9шт.

39

SBA011510816

BOLT

M8 x 16

7шт.

USED ON & ABOVE PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

40

SBA350503060

SUPPORT

Hinge

1шт.

41

SBA350512950

PLATE

2шт.

42

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

43

SBA350862320

BRACKET

1шт.

44

SBA314610690

HOLDER

Support Bar

1шт.

USED BELOW PIN # HDG500156 DX48 & HDG600483 DX55

1шт.

45

SBA350503240

SUPPORT

SUPPORT DX48

1шт.

45

SBA350503241

SUPPORT

SUPPORT DX48

1шт.

USED ON & ABOVE PIN # HDG500156 DX48

1шт.

45

SBA350503110

SUPPORT

DX55

1шт.

45

SBA350503111

SUPPORT

SUPPORT DX55

1шт.

USED ON & ABOVE PIN # HDG600483 DX55

1шт.

46

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

2шт.

47

SBA398122120

RUBBER

Lower, Fits Between Ref. 30 & 32

1шт.

48

SBA398122130

RUBBER

2шт.

49

SBA398122140

RUBBER

Upper, Fits Between Ref. 38 & 7

1шт.

50

SBA350512990

PLATE

1шт.

51

SBA010800614

BOLT

M6 x 14

2шт.

52

SBA390123101

DECAL

NAME PLATE

2шт.
