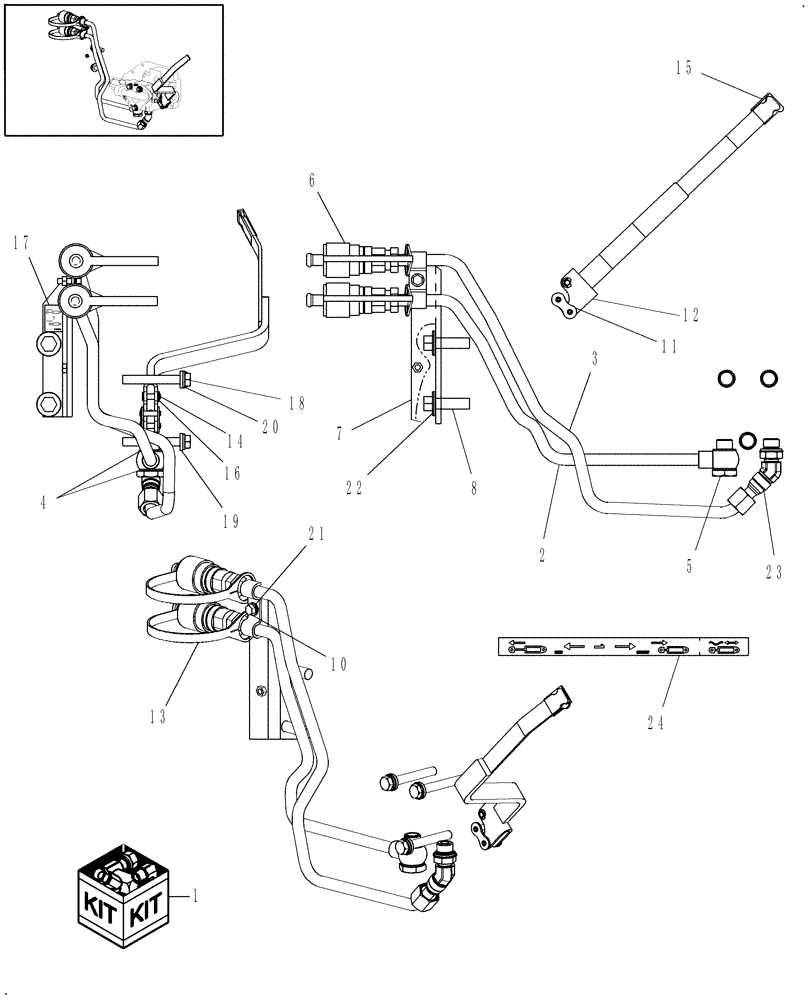

Запчасти Case IH DX48 (07.10) - REAR REMOTE #1 SELF CENTERING CONTROL - 719933016 (07) - HYDRAULIC SYSTEM

1

719933016

DIA KIT, ADD PROD

Rear Remote #1 Self Centering Control Includes: Ref. 2-24

1шт.

Valve #710366056 Not Included, Order Separate

1шт.

2

86404879

TUBE,12.70 mm OD

Valve 1, Lower

1шт.

3

86404880

TUBE,12.70 mm OD

Valve 1, Raise

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18 x 1.5

2шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5

1шт.

6

256231

COUPLING, QUICK, FEM

Female. Male Coupler is 9801618

2шт.

7

87300578

BRACKET

2 Coupler

1шт.

8

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

9

86524859

CLAMP

Tube Holder

1шт.

10

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

11

5116896

LINK,19.05mm Pitch

1шт.

12

86405820

LEVER

3 or 4 Position Rear Remote

1шт.

13

5186723

DUST CAP,24mm, Black

Dust 1/2" Coupler

2шт.

14

5172456

PIN,6mm OD x 20mm L

Spool Connection

1шт.

15

86405812

KNOB

Lever

1шт.

16

11087776

CIRCLIP,Ext., M6, BLO

1шт.

17

87301388

DECAL

Coupler

1шт.

18

280458

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

3шт.

19

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Bracket Mount

2шт.

23

87327028

45 ELBOW

Elbow 45 Degree

1шт.

24

86405757

DECAL

Pod Slot

1шт.
