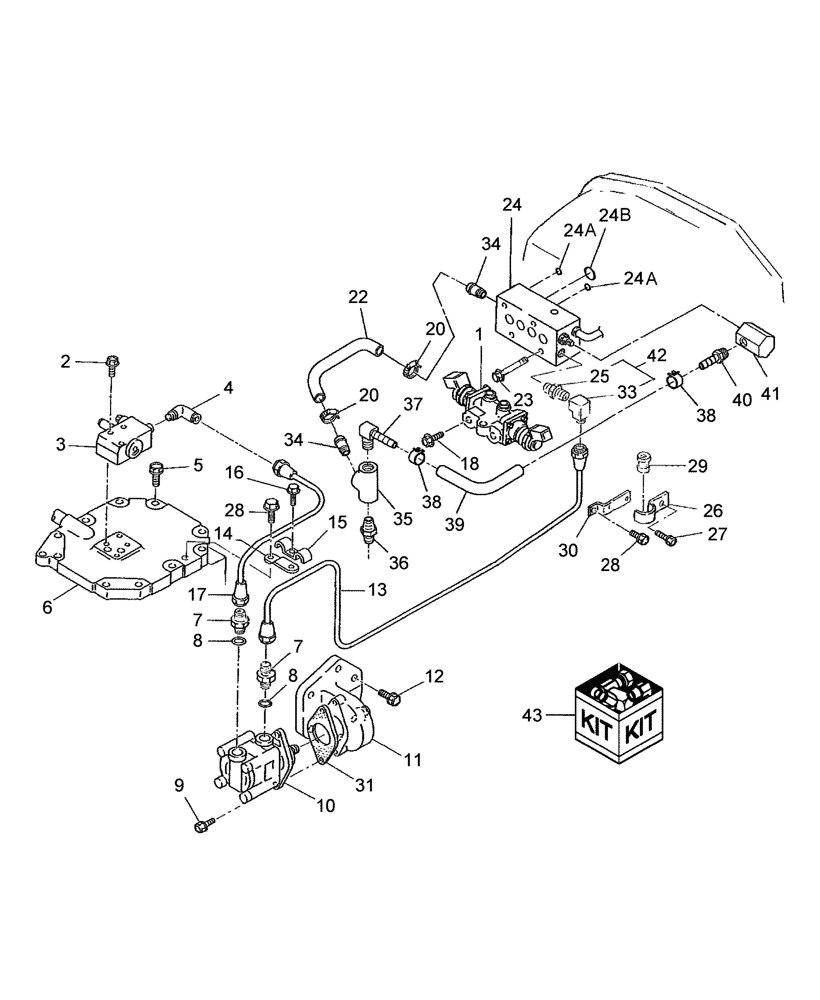

Запчасти Case IH DX48 (07.04) - SSS & PTO PUMP & PIPING (07) - HYDRAULIC SYSTEM

1

SBA340014980

HYDRAULIC VALVE

1шт.

2

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

1шт.

3

SBA340016451

HYDRAULIC VALVE

Refer to Fig. 07.01.01 for Components

1шт.

4

SBA340671580

ADAPTER

1шт.

5

SBA011501030

BOLT

M10 x 30

10шт.

6

SBA322213730

COVER

1шт.

7

SBA340671220

ADAPTER

1шт.

8

SBA052100140

O-RING

2шт.

9

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

10

SBA340451161

PUMP

Oil, SSS & PTO

1шт.

SBA340451161R

REMAN-HYD PUMP

DX55 SN CX10004-CX10083, HDG600084-Z6NFC1001 & ABOVE, (10/03-)

1шт.

SBA340451161C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

SBA322118360

CASE

1шт.

12

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

6шт.

13

SBA340709750

PIPE

Oil

1шт.

14

SBA399113440

CLAMP

1шт.

15

SBA399100630

CLAMP

2шт.

16

SBA011310630

BOLT

M6 x 30

1шт.

17

SBA340709700

PIPE

Oil

1шт.

18

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

3шт.

20

SBA398756260

BAND

2шт.

22

SBA340692971

HOSE

Oil

1шт.

23

SBA011510865

BOLT

M8 x 65

2шт.

24

SBA340016431

VALVE

Control SSS Refer to Fig. 07.04.02 for Breakdown

1шт.

24a

SBA052100120

O-RING

P12

2шт.

24b

SBA052100220

O-RING

P22

1шт.

25

SBA340674090

ADAPTER

1шт.

26

SBA399112260

CLAMP

1шт.

27

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

28

SBA011510816

BOLT

M8 x 16

2шт.

29

SBA198516390

RUBBER BUSHING

1шт.

30

SBA399113460

CLAMP

1шт.

31

SBA344990410

GASKET

1шт.

33

SBA340674100

ADAPTER

1шт.

34

SBA145986090

TUBE

1шт.

35

SBA340671760

ADAPTER

Tee

1шт.

36

SBA340670090

ADAPTER

1шт.

37

SBA340692970

HOSE

Oil

1шт.

38

SBA067200130

CLAMP

2шт.

39

SBA360770680

HOSE

1шт.

40

SBA340672570

ADAPTER

1шт.

41

SBA340674110

ADAPTER

1шт.

42

SBA340500971

ADAPTER

Adapter Assembly Includes: Ref. 25 & 33

1шт.

43

SBA340293785

SHIM KIT

Kit, Shim. Includes: (2) Shims 0.5 or .020 & (2) Shims 0.1 or .040

1шт.
