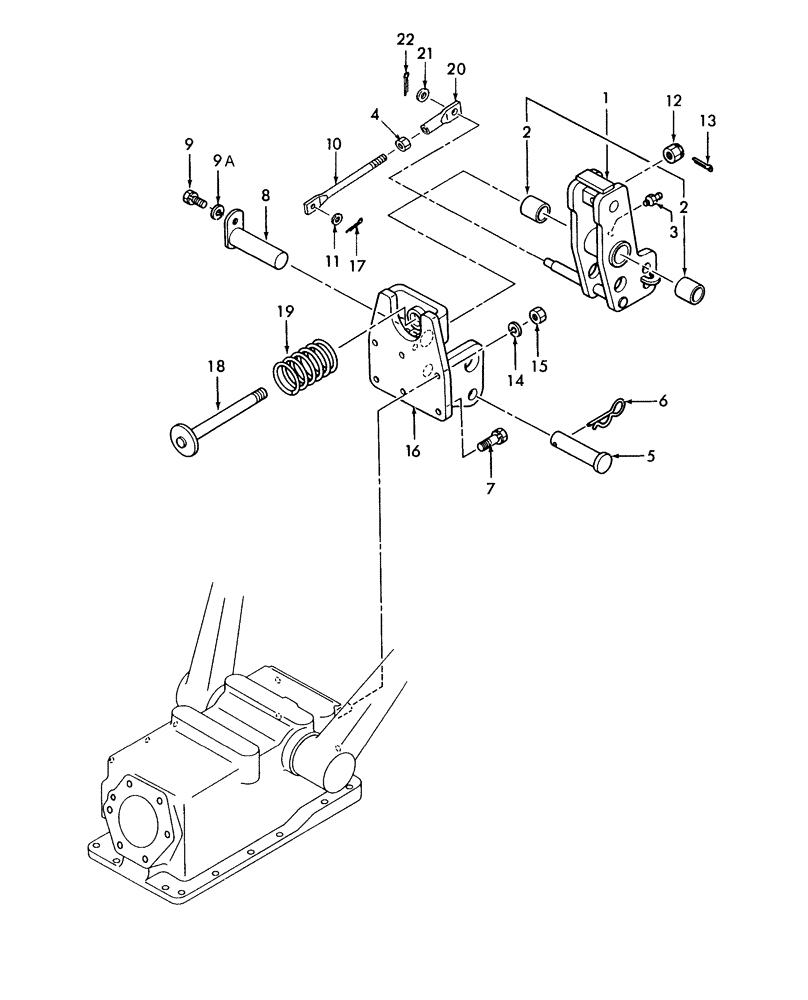

Запчасти Case IH DX48 (07.03) - BRACKET & ARM ASSEMBLY W/DRAFT CONTROL (07) - HYDRAULIC SYSTEM

1

SBA370030350

BRACKET

1шт.

2

SBA398510080

DRIVE BUSHING

2шт.

3

SBA060610000

LUBE NIPPLE,M6 x .075

1шт.

4

100016

NUT,M10 x 1.5, Cl 8

1шт.

5

SBA370910870

PIN

1шт.

6

SBA399730010

PIN

1шт.

7

SBA011511235

BOLT,M12 x 35

5шт.

8

SBA370900520

PIN

1шт.

8

SBA370901190

PIN

1шт.

USED ON & ABOVE PIN # HDG500051 DX48 & HDG600104 DX55

1шт.

9

SBA011511020

BOLT,M10 x 20

1шт.

9

SBA010131020

BOLT

M10 x 20

1шт.

USED ON & ABOVE PIN # HDG500007 DX48 & HDG600004 DX55

1шт.

9

SBA011611225

BOLT

1шт.

USED ON & ABOVE PIN # HDG500051 DX48 & HDG600104 DX55

1шт.

9a

SBA027100010

WASHER

1шт.

USED BEFORE PIN # HDG500050 DX48 & HDG600103 DX55

1шт.

10

SBA344210660

ROD

1шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

12

SBA022200016

SLOTTED NUT

Castle

1шт.

13

PL

PROCURE LOCALLY

PIN Split

1шт.

14

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

15

330327

NUT,M12 x 1.5, Cl 8

1шт.

16

SBA370300800

BRACKET

Top Link

1шт.

16

SBA370301290

BRACKET

1шт.

USED ON & ABOVE PIN # HDG500051 DX48 & HDG600104 DX55

1шт.

17

SBA030102016

COTTER PIN

1шт.

18

SBA370900460

PIN

1шт.

19

SBA398212660

SPRING

1шт.

20

SBA344211580

ROD

1шт.

21

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

22

SBA030103220

COTTER PIN

3 x 20

1шт.
