Запчасти Case IH DX48 (07.02) - CONTROL VALVE, QUADRANT & LINKAGE W/DRAFT CONTROL (07) - HYDRAULIC SYSTEM

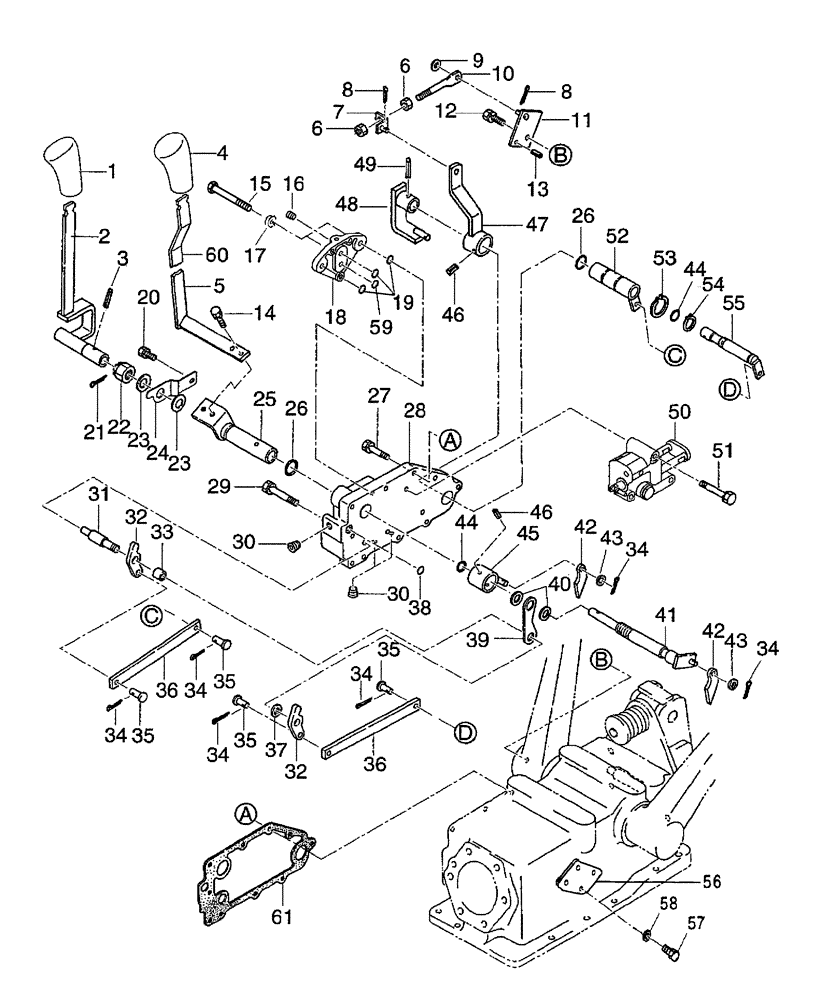

Схема запчастей Case IH DX48 - (07.02) - CONTROL VALVE, QUADRANT & LINKAGE W/DRAFT CONTROL (07) - HYDRAULIC SYSTEM
45
55
44
2
58
37
17
42
14
34
40
31
60
52
59
23
35
35
8
34
46
8
21
30
6
26
42
20
19
32
25
46
47
27
34
41
44
54
48
57
10
35
43
51
22
18
28
9
15
49
43
36
3
29
26
30
53
38
50
35
34
23
11
12
24
34
36
6
39
7
1
4
33
13
32
34
56
61
16
5

Артикул

Название

Примечание

Количество

1

87301032

KNOB

3 Point

1шт.

2

SBA340104300

CONTROL LEVER

1шт.

3

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

4

SBA398181880

GRIP

1шт.

5

SBA340122480

LEVER

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

SBA340300090

STOP

Lever

1шт.

8

SBA030102016

COTTER PIN

2шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

10

SBA344211120

ROD

1шт.

11

SBA344200600

ROD

1шт.

12

SBA011510816

BOLT

M8 x 16

1шт.

13

412663

LOCK PIN,M5 x 10, Slotted

4шт.

14

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

15

SBA010109603

BOLT

3шт.

15

SBA010109612

BOLT

3шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600339 DX55

1шт.

16

SBA064409005

PLUG,3/8"-18 NPTF

1шт.

17

SBA027100010

WASHER

M10

3шт.

18

SBA344881231

VALVE COVER

1шт.

18

SBA344881250

VALVE COVER

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600339 DX55

1шт.

19

SBA052100180

O-RING

3шт.

20

SBA011140612

BOLT

M6 x 12

1шт.

21

SBA030104032

COTTER PIN

1шт.

22

SBA022200016

SLOTTED NUT

Castle

1шт.

23

SBA399340070

WASHER

2шт.

24

SBA399565752

PLATE

1шт.

25

SBA340200380

SHAFT

Control

1шт.

25

SBA340200381

SHAFT

Control

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600339 DX55

1шт.

26

SBA052100210

O-RING

2шт.

27

SBA011510835

BOLT

M8 x 35

7шт.

28

SBA344881211

VALVE

1шт.

Replaced by (1) SBA344881212, (1) SBA344881250 & (3) SBA010109612

1шт.

28

SBA344881212

VALVE

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600339 DX55

1шт.

30

SBA064400020

PLUG

PT 1/4

4шт.

31

SBA340210840

SHAFT

1шт.

32

SBA344660040

CAM

2шт.

33

SBA399232790

COLLAR

1шт.

34

SBA030102016

COTTER PIN

8шт.

35

SBA399611110

PIN

4шт.

36

SBA344220420

PLATE

2шт.

37

SBA399340160

WASHER

1шт.

38

SBA052110120

O-RING

1шт.

39

SBA399562260

PLATE

1шт.

40

SBA199280160

SHIM

2шт.

41

SBA340200400

SHAFT

Control

1шт.

42

SBA344660020

CAM

2шт.

43

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

6шт.

44

SBA052100120

O-RING

2шт.

45

SBA340101560

LEVER

Control

1шт.

46

412663

LOCK PIN,M5 x 10, Slotted

4шт.

47

SBA340107010

CONTROL LEVER

1шт.

48

SBA340105161

CONTROL LEVER

1шт.

49

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

50

SBA340016350

VALVE

Refer to Fig. 07.02.01 for Details

1шт.

51

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

2шт.

52

SBA340200390

SHAFT

Control

1шт.

53

370002

CIRCLIP,M25, External

1шт.

54

300625

SNAP RING,M16, Ext

1шт.

55

SBA340200411

CONTROL SHAFT

1шт.

56

SBA322213770

COVER

Lift

1шт.

57

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

4шт.

58

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

M8

4шт.

59

SBA052110160

O-RING

1шт.

60

SBA068109123

TUBE

Vinyl

1шт.

61

SBA344990260

GASKET

1шт.

Выбрано товаров: 69
