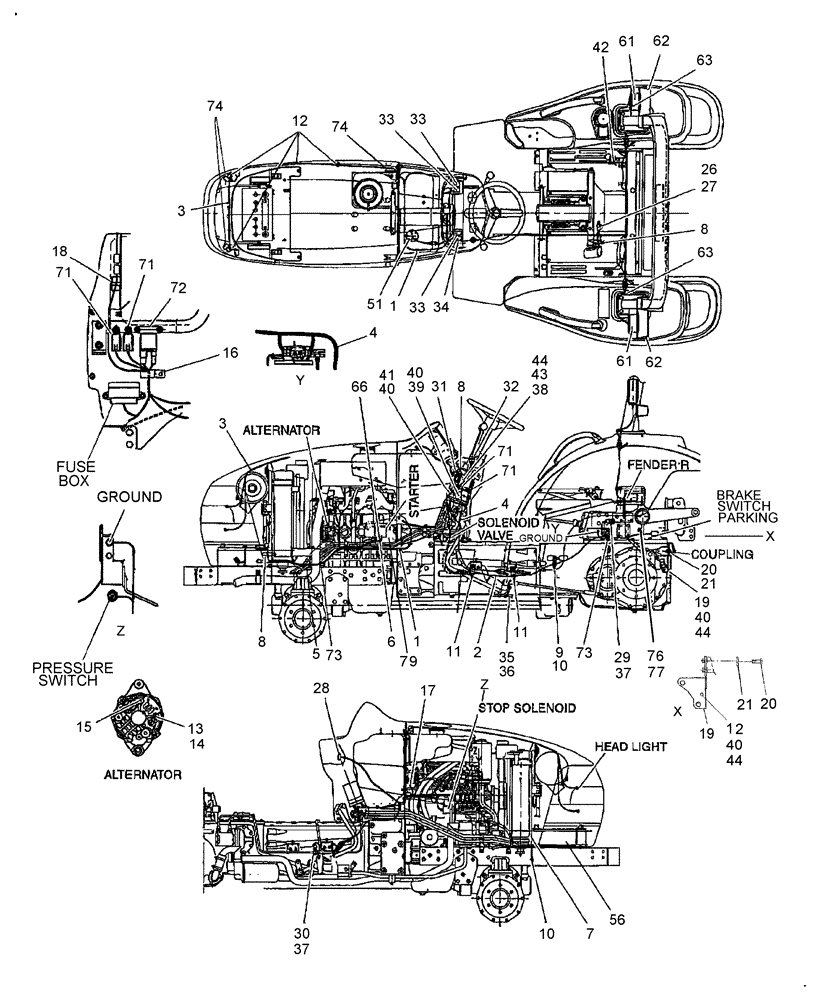

Запчасти Case IH DX48 (06.01) - ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

SBA385612080

WIRE HARNESS

Main

1шт.

1

SBA385612081

WIRE HARNESS

Main

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

1

SBA385612391

WIRE HARNESS

Main

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

2

SBA385611961

WIRE HARNESS

Rear

1шт.

2

SBA385611962

WIRE HARNESS

Rear

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

2

SBA385612560

WIRE HARNESS

Rear

1шт.

USED ON & ABOVE PIN # HDG500201 DX48 & HDG600734 DX55

1шт.

2

SBA385612561

WIRE HARNESS

Rear

1шт.

USED ON & ABOVE PIN # HDG500201 DX48 & HDG600734 DX55

1шт.

3

SBA385612090

WIRE HARNESS

Headlight

1шт.

3

SBA385612091

WIRE HARNESS

Headlight

1шт.

USED ON & ABOVE PIN # HDG600004 DX55 & HDG500057 DX48

1шт.

4

SBA385612010

WIRE HARNESS

SSS

1шт.

4

SBA385612011

WIRE HARNESS

SSS

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

4

SBA385612420

WIRE HARNESS

SSS

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

5

SBA385650800

CABLE

Battery

1шт.

6

SBA398119870

RUBBER PAD

1шт.

7

SBA385650450

CABLE

Battery

1шт.

8

SBA398750220

CABLE TIE

Band

5шт.

9

SBA399113340

WIRE CLAMP

3шт.

10

SBA010800812

BOLT

M8 x 12

1шт.

11

SBA399113650

CLAMP

2шт.

12

SBA399111960

CLAMP

4шт.

13

SBA020100005

NUT

1шт.

14

SBA027100005

WASHER

1шт.

15

SBA015150510

SCREW

1шт.

16

SBA399112980

CLAMP

1шт.

17

SBA185606170

WIRE HARNESS

1шт.

18

SBA399112851

CLAMP

1шт.

19

SBA355210370

PLATE

1шт.

20

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

21

SBA026100008

WASHER

2шт.

26

SBA385201260

SWITCH

Seat, Round Push Button W/2 Wire Plug Connector

1шт.

26

SBA385202640

SWITCH

Seat, Round Push Button W/Waterproof Connector

1шт.

USED ON & ABOVE PIN # HDG500035 DX48 & HDG600084 DX55

1шт.

27

SBA020600014

NUT

M14

1шт.

28

SBA385202110

IGNITION SWITCH

Engine Start Includes: Ref. 28A-28C

1шт.

28

SBA385202591

SWITCH

Engine Start Includes: Ref. 28A-28C

1шт.

USED ON & ABOVE PIN # HDG500034 DX48

1шт.

USED ON & ABOVE PIN # HDG600084 DX55

1шт.

28a

SBA385240290

RING NUT

Ring, Nut

1шт.

Not Illustrated

1шт.

28b

SBA385240300

WASHER

Washer

1шт.

Not Illustrated

1шт.

28c

SBA385210360

IGNITION KEY

2шт.

Not Illustrated

1шт.

29

SBA385201260

SWITCH

Safety

1шт.

29

SBA385202640

SWITCH

Safety

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

30

SBA385200730

SWITCH

Parking Brake

1шт.

30

SBA385202630

SWITCH

Parking Brake

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

30

SBA385200731

SWITCH

Parking Brake

1шт.

USED ON & ABOVE PIN # Z6NFA1034 DX48 & Z6NFC1094 DX55

1шт.

31

SBA385201650

SWITCH

Shuttle Lever

1шт.

31

SBA385202680

SWITCH

Shuttle Lever from serail number Z6NFC1117

1шт.

32

SBA385200531

FLASHER SWITCH

1шт.

33

SBA385202540

SWITCH ASSY

Lamp

3шт.

34

SBA385202530

LIGHT SWITCH

1шт.

35

SBA385880300

POTENTIOMETER

1шт.

36

SBA015150412

SCREW

2шт.

37

SBA020210014

NUT

M14

2шт.

38

SBA385871330

CONTROL UNIT

EHSS

1шт.

38

SBA385871280

CONTROL BLOCK

EHSS

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

39

SBA385871160

CONTROL BLOCK

Safety

1шт.

39

SBA385871260

CONTROL UNIT

Safety

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

39

SBA385871261

ECU

Safety

1шт.

USED ON & ABOVE PIN Z7NFA1001-DX48, Z7NFB1001-DX55

1шт.

40

SBA010800612

BOLT

M6 x 12

6шт.

41

SBA385871190

CONTROL BLOCK

Flasher

1шт.

42

SBA385750390

POWER SOCKET

1шт.

43

SBA010800620

BOLT

M6 x 20

2шт.

44

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

3шт.

51

SBA385280120

GAUGE

Fuel, Sending Unit

1шт.

51

SBA385280250

GAUGE

Fuel, Sending Unit

1шт.

USED ON & ABOVE PIN HDG500035 DX48 & HDG600084 DX55

1шт.

56

B2772W

WET BATTERY

United States

1шт.

56

CB2772W

WET BATTERY

Canada

1шт.

61

SBA385102120

WORK LAMP

2шт.

Uses 9417867 Bulb

1шт.

61

87300897

LAMP

Flasher/Warning Includes: Ref. 61A

2шт.

USED ON & ABOVE PIN # HDG600080 DX55

1шт.

USED ON & ABOVE PIN # HDG500011 DX48

1шт.

Uses 9417867 Bulb

1шт.

61a

86576124

LENS

Amber

2шт.

Not Illustrated

1шт.

62

SBA385102110

TAIL LAMP

2шт.

Uses 529068 Bulb

1шт.

62

87300898

LAMP

Tail

2шт.

USED ON & ABOVE PIN # HDG500011 DX48

1шт.

Uses 529068 Bulb

1шт.

Use (2) 86836487 Screw #10x2.25 and (2) 87304 #10 Nut to Mount Light to Bracket

1шт.

62a

87720313

LENS

LENS, RED

2шт.

Not Illustrated

1шт.

63

SBA385960860

TUBE

Corrugated tube 300mm long added tp each tailight and hazard light

2шт.

Not Illustrated

1шт.

63

87301053

TUBE,10.72 mm ID x 15.90 mm OD x 750 mm L

2шт.

66

SBA185736260

COVER

1шт.

71

SBA385230300

RELAY

4шт.

72

SBA385230120

RELAY

Glow Plug

1шт.

73

SBA399110340

CLAMP

Used to clamp the battery cable and near the speed selector lever guide

2шт.

74

SBA399112851

CLAMP

3шт.

75

SBA399112140

CLAMP

Clamp to hold tube in place

4шт.

Not Illustrated

1шт.

76

SBA385250180

BUZZER

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

77

SBA010800820

BOLT

M8 x 20

1шт.

USED ON & ABOVE PIN # HDG500142 DX48 & HDG600346 DX55

1шт.

78

SBA385410010

FUSE

15 AMP FUSE, USED WITH THE 7 PIN CONNECTOR

2шт.

Not Illustrated

1шт.

79

SBA385608910

FUSE

Link, Located at the Starter.

1шт.
