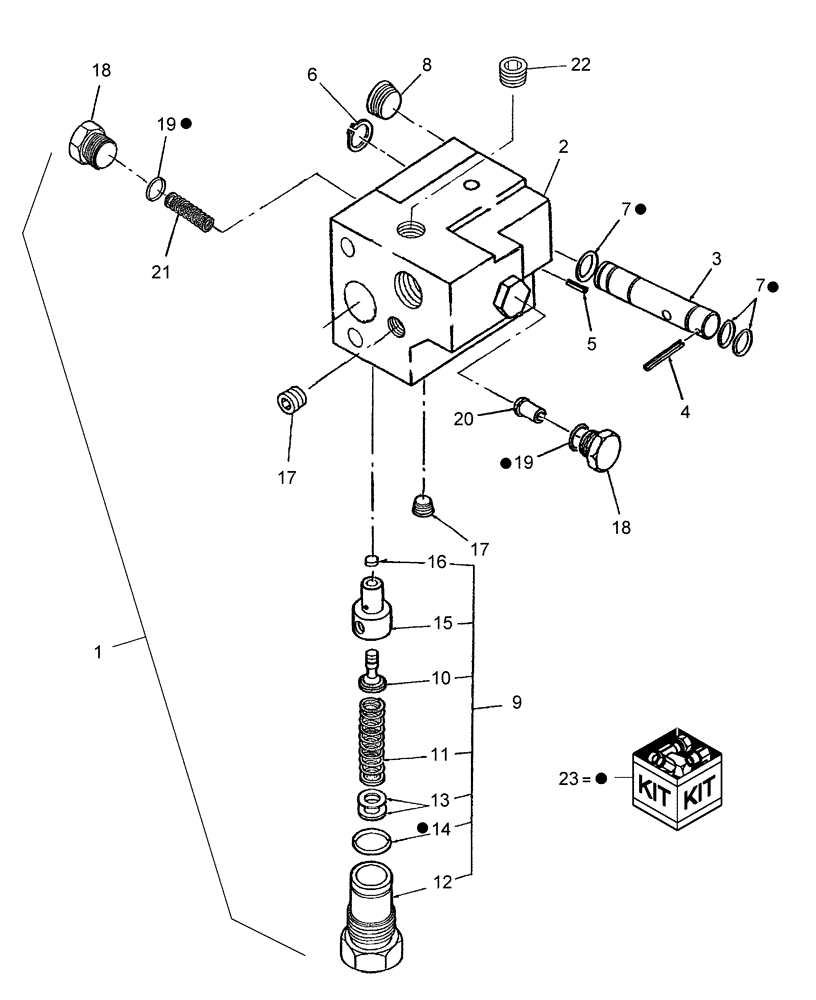

Запчасти Case IH DX48 (04.04.02) - MANIFOLD DIVERTER BLOCK - SBA340016730 & SBA40016731 (04) - FRONT AXLE & STEERING

1

SBA340016730

VALVE

Diverter Manifold Block Includes: Ref. 2 - 23

1шт.

1

SBA340016731

VALVE

Diverter Manifold Block Includes: Ref. 2-23

1шт.

USED ON & ABOVE PIN # Z6NFA1034-DX48, Z6NFB1015-DX55

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

SBA030300220

ROLL PIN

1шт.

5

SBA030300310

ROLL PIN

2шт.

6

SBA036100015

SNAP RING

1шт.

7

SBA052100110

O-RING,2.4mm Thk x 10.8mm ID

P10

3шт.

8

SBA064409005

PLUG,3/8"-18 NPTF

3шт.

9

SBA340293786

VALVE

Relief Includes: Ref. 10 - 16

1шт.

9

SBA340293828

VALVE

Relief Includes: Ref. 10-16

1шт.

USED ON & ABOVE PIN # Z6NFA1034-DX48, Z6NFB1015-DX55

1шт.

USED WITH SBA340016731 DIVERTER MANIFOLD BLOCK VALVE

1шт.

10

SBA340293788

VALVE

Poppet

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

SBA340293825

SHIM KIT

Kit, Shim

1шт.

14

SBA052400180

O-RING

S18

1шт.

15

NSS

NOT SOLD SEPARAT

Housing

1шт.

16

SBA340293799

PLUG

1шт.

17

SBA064400010

PLUG

1/8"

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

SBA340293827

PLUG

2шт.

USED ON & ABOVE PIN # Z6NFA1034-DX48, Z6NFB1015-DX55

1шт.

USED WITH SBA340016731 DIVERTER MANIFOLD BLOCK VALVE

1шт.

19

SBA052110140

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

Diverter Spool

1шт.

21

NSS

NOT SOLD SEPARAT

Spring

1шт.

22

SBA064400020

PLUG

1шт.

22

SBA340293787

SEAL KIT

Includes: 7,14,19

1шт.
