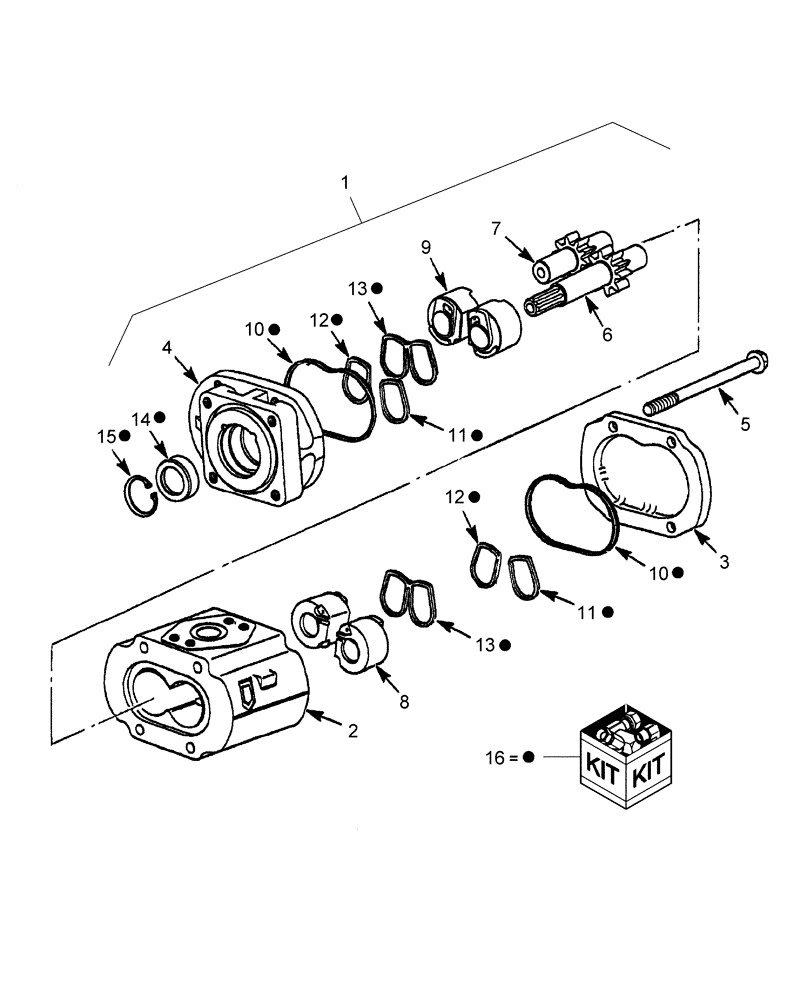

Запчасти Case IH DX48 (04.04.01) - HYDRAULIC PUMP & REPAIR KIT (04) - FRONT AXLE & STEERING

1

SBA340451140

HYDRAULIC PUMP

Includes: Ref. 2 thru 16

1шт.

SBA340451140R

REMAN-HYD PUMP

DX48 SSS COMPACT TRACTOR - SN CV10001-CV10033 HDG500034-Z6NFA1001 & ABOVE, DX55 SSS COMPACT TRACTOR - SN CX10004-CX10083 HDG600084-Z6NFB1001 & ABOVE both (11/03-)

1шт.

SBA340451140C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Rear Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Front Cover

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt

4шт.

6

NSS

NOT SOLD SEPARAT

Drive Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Pump Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Wear Block, LH

2шт.

9

NSS

NOT SOLD SEPARAT

Wear Block, RH

2шт.

10

SBA340293700

SEAL

Body Seal

2шт.

11

SBA340293705

RING

Backup Ring, LH

2шт.

12

SBA340293703

RING

Backup Ring, RH

2шт.

13

SBA340293701

SEAL

Seal, Ring

2шт.

14

SBA340293702

SEAL

Oil Seal

1шт.

15

SBA036500034

SNAP RING

Snap Ring

1шт.

16

SBA340293698

SEAL KIT

Includes: Ref. 10 thru 15

1шт.
