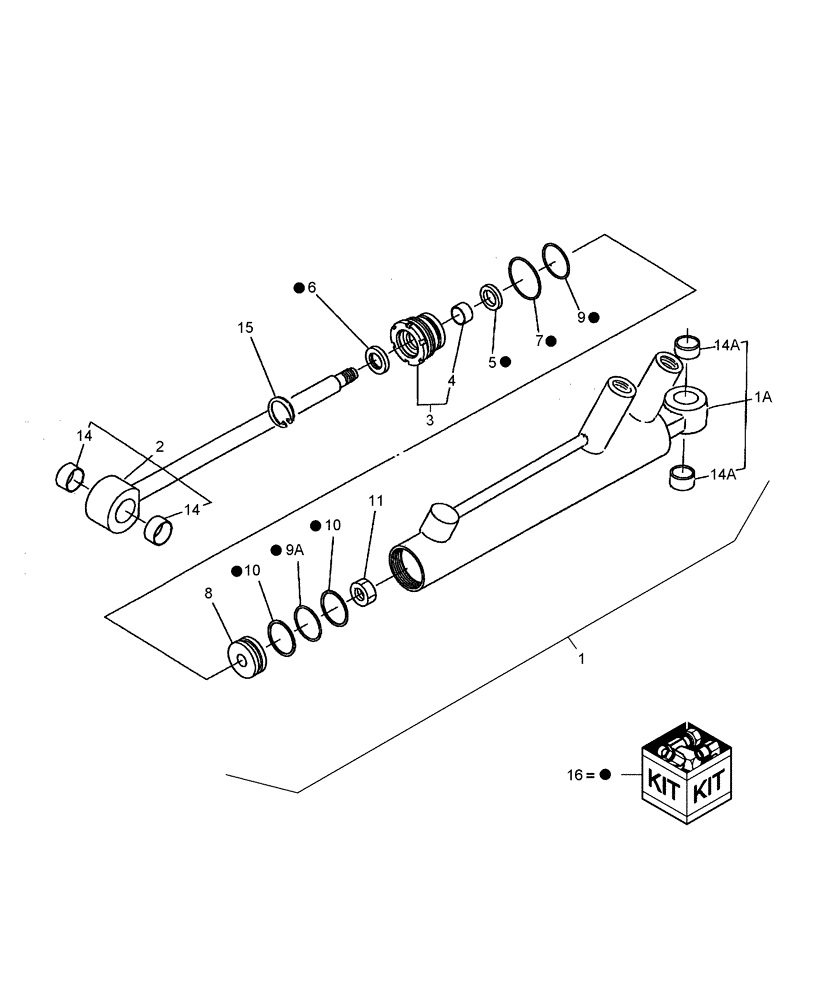

Запчасти Case IH DX48 (04.02.01) - HYDRAULIC CYLINDER W/FWD (04) - FRONT AXLE & STEERING

1

SBA344953140

STEERING CYLINDER

Hydraulic

1шт.

1

SBA344953141R

REMAN-HYD CYLINDER

DX48 SN CV10001-CV10033, HDG500034-Z6NFA1001 & ABOVE, DX55 SN CX10004-CX10083, HDG600084-Z6NFB1001 & ABOVE, Both SSS COMPACT TRACTOR, Hydraulic (11/03-), Reman for New PN SBA344953140

1шт.

1

SBA344953141C

CORE-HYD CYLINDER

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

2

NSS

NOT SOLD SEPARAT

Rod

1шт.

3

SBA344960455

REPAIR KIT

Head

1шт.

4

SBA344960430

BUSHING

1шт.

5

NSS

NOT SOLD SEPARAT

Packing

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9a

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Backup Ring

2шт.

11

SBA020910014

NUT

M14

1шт.

14

SBA344960433

BUSHING

ID .8770"/OD .9915

2шт.

14a

SBA344960434

BUSHING

2шт.

15

SBA344960438

SNAP RING

1шт.

16

SBA344960442

REPAIR KIT

1шт.
