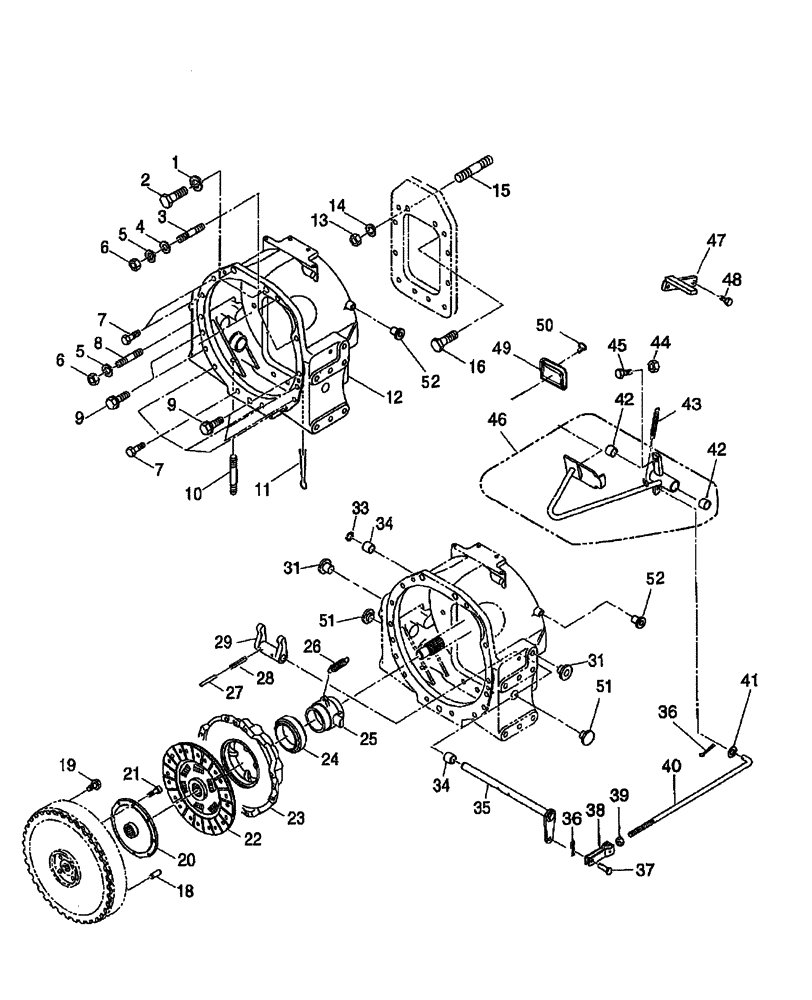

Запчасти Case IH DX48 (03.02) - CLUTCH CASE (03) - TRANSMISSION

1

140030

LOCK WASHER,M14

2шт.

2

SBA010331250

BOLT

M12 x 50

2шт.

3

SBA012111030

STUD,M10 x 30

2шт.

4

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

3шт.

6

100016

NUT,M10 x 1.5, Cl 8

3шт.

7

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

6шт.

8

SBA012111045

SCREW

Stud

1шт.

9

SBA011511050

BOLT,M10 x 50

5шт.

10

SBA012110855

STUD,M8 x 55

1шт.

11

SBA030104020

PIN

Split

1шт.

12

SBA320111860

CASE

Clutch

1шт.

13

SBA020210014

NUT

M14

2шт.

14

140030

LOCK WASHER,M14

2шт.

15

SBA012109258

BOLT

Stud

2шт.

16

SBA010109368

BOLT

M12 x 40

10шт.

18

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

3шт.

19

SBA011510816

BOLT

M8 x 25

6шт.

20

SBA322613250

COUPLING

Flex, No Pilot Bearing Used

1шт.

21

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

8шт.

22

SBA320400650

CLUTCH DRIVING PLATE

Clutch Disc, DIA 275

1шт.

22

SBA320400650R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

22

SBA320400650C

CORE-CLUTCH PLATE

Return Number, DX55

1шт.

23

SBA320450310

CLUTCH, PRESSURE PLA

DIA 328

1шт.

23

SBA320450310R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

23

SBA320450310C

CORE-CLUTCH PLATE

Return Number

1шт.

24

SBA398560910

BEARING ASSY,87.96mm OD x 54.98mm ID x 21.60mm Thk

Release

1шт.

25

SBA320310610

HUB

Release

1шт.

26

SBA398210070

SPRING

1шт.

27

SBA030300640

PIN

Spring

2шт.

28

SBA030303540

PIN

Spring

2шт.

29

SBA320260030

SHIFT, FORK

Clutch

1шт.

31

SBA398460010

PLUG,M19

Blank

14шт.

33

SBA036100018

SNAP RING

1шт.

34

SBA398510010

DRIVE BUSHING

2шт.

35

SBA320201380

SHAFT

1шт.

36

SBA030103025

COTTER PIN

2шт.

37

SBA031311020

PIN

1шт.

38

SBA358550110

CLEVIS

1шт.

39

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

40

SBA358510561

ROD

1шт.

41

SBA026100010

WASHER

M10

1шт.

42

SBA398511460

DRIVE BUSHING

2шт.

43

SBA398210290

SPRING

1шт.

44

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

45

SBA010311025

BOLT

M10 x 25

1шт.

46

SBA358012390

PEDAL ASSY.

1шт.

47

SBA358160280

STOP

1шт.

48

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

49

SBA398118880

RUBBER PAD

1шт.

50

SBA398340540

CLIP

1шт.

51

SBA398110760

COVER

2шт.

52

SBA398460210

PLUG

2шт.
