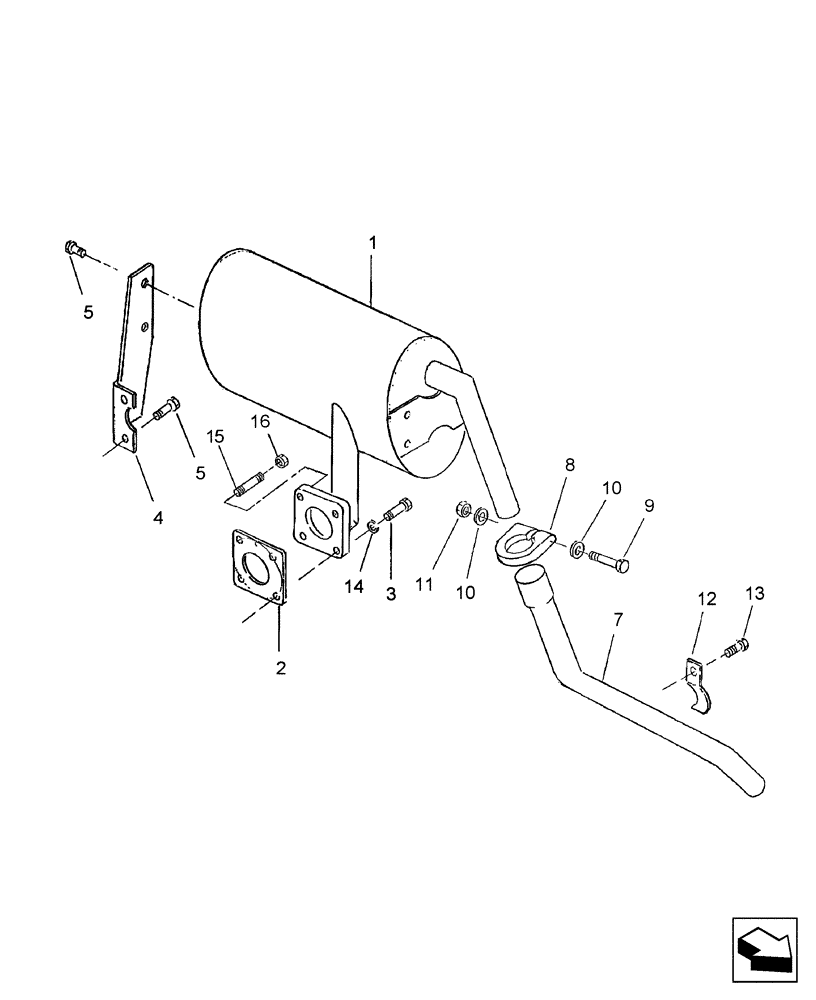

Запчасти Case IH DX48 (02.04) - MUFFLER (02) - ENGINE EQUIPMENT

1

SBA314102530

MUFFLER

1шт.

2

SBA314990013

GASKET

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

DX55

4шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

DX48

2шт.

4

SBA314430640

SUPPORT

1шт.

5

SBA011510816

BOLT

M8 x 16

2шт.

7

SBA314110520

PIPE

1шт.

8

SBA314410660

BAND

1шт.

9

SBA010310865

BOLT

1шт.

10

SBA026100008

WASHER

M8

2шт.

11

SBA022300008

NUT,M8

1шт.

12

SBA399113450

CLAMP

1шт.

13

SBA010800816

BOLT

M8 x 16

1шт.

14

SBA027100008

WASHER

Spring, DX55

4шт.

14

SBA027100008

WASHER

Spring, DX48

2шт.

15

SBA012110820

STUD

M8 x 20, DX48

2шт.

16

SBA021500008

NUT,M8

DX48

2шт.
