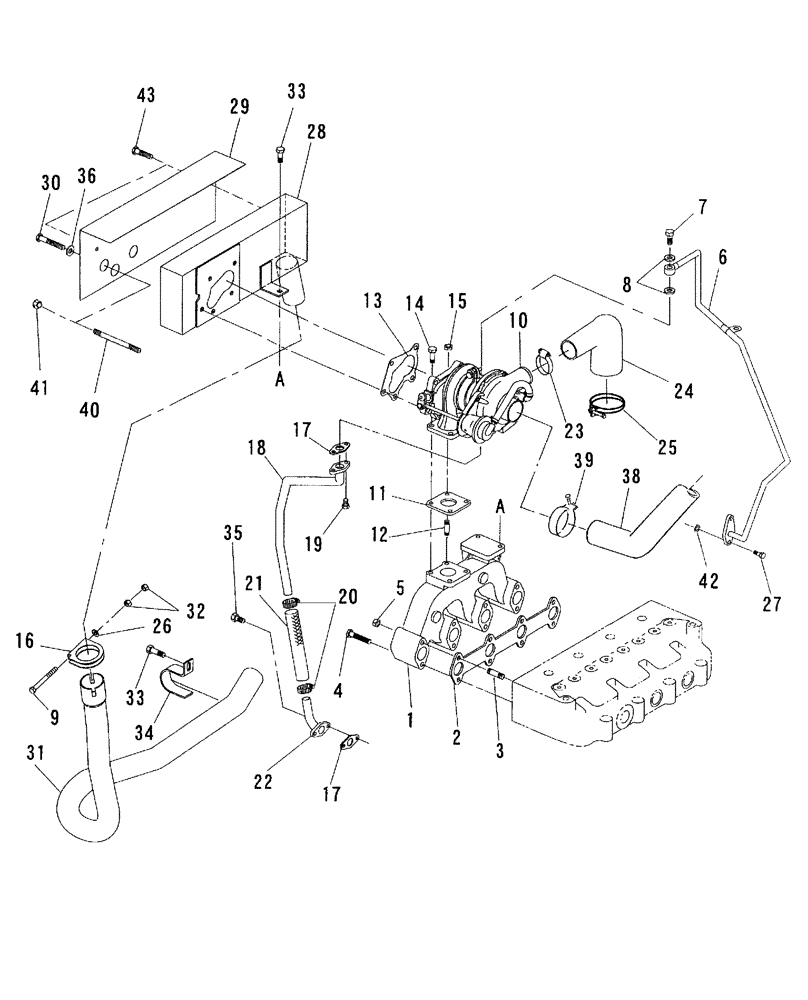

Запчасти Case IH DX48 (02.03) - TURBOCHARGER & MANIFOLD EXHAUST (02) - ENGINE EQUIPMENT

1

SBA135617240

EXHAUST MANIFOLD

Exhaust

1шт.

2

SBA135996780

MANIFOLD GASKET

1шт.

3

SBA012110875

STUD

Bolt

2шт.

4

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

SBA140607360

PIPE

Oil

1шт.

7

SBA198487840

SCREW

Eye

1шт.

8

SBA054109025

SEAL

2шт.

9

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

10

SBA135756171

TURBOCHARGER

1шт.

10

SBA135756171R

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

10

SBA135756171C

CORE-TURBOCHARGER

Return Number, Turbocharger

1шт.

11

SBA135997020

GASKET

1шт.

12

SBA012109235

STUD

Bolt

2шт.

13

SBA135997030

GASKET

1шт.

14

SBA010109465

SCREW

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

16

SBA314410660

BAND

1шт.

17

SBA140996280

GASKET

2шт.

18

SBA140607320

TUBE

Oil

1шт.

19

SBA011140616

BOLT

2шт.

20

SBA198756230

HOSE CLAMP

2шт.

21

SBA063209121

HOSE

1шт.

22

SBA140607370

TUBE

Oil

1шт.

23

SBA398750450

BAND

1шт.

24

SBA135596570

ELBOW

Hose, Intake

1шт.

25

SBA067100065

CLIP

Hose

1шт.

26

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

27

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

28

SBA314102510

MUFFLER

1шт.

29

SBA314170230

COVER

Muffler

1шт.

30

SBA010160885

BOLT

DX48

5шт.

30

SBA010160885

BOLT

DX55

4шт.

31

SBA314110450

PIPE

Pipe

1шт.

32

SBA022300008

NUT,M8

1шт.

33

SBA010800816

BOLT

M8 x 16

2шт.

34

SBA399113450

CLAMP

1шт.

35

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

36

SBA027160008

WASHER

DX48

5шт.

36

SBA027160008

WASHER

DX55

4шт.

38

SBA314541580

HOSE

Cleaner

1шт.

39

SBA067100065

CLIP

Hose, DX48

1шт.

39

SBA398750440

BAND

Hose, DX55

1шт.

40

SBA012210880

BOLT

DX55

1шт.

41

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

42

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

43

SBA010109297

BOLT

Bolt

2шт.

DX55

1шт.
