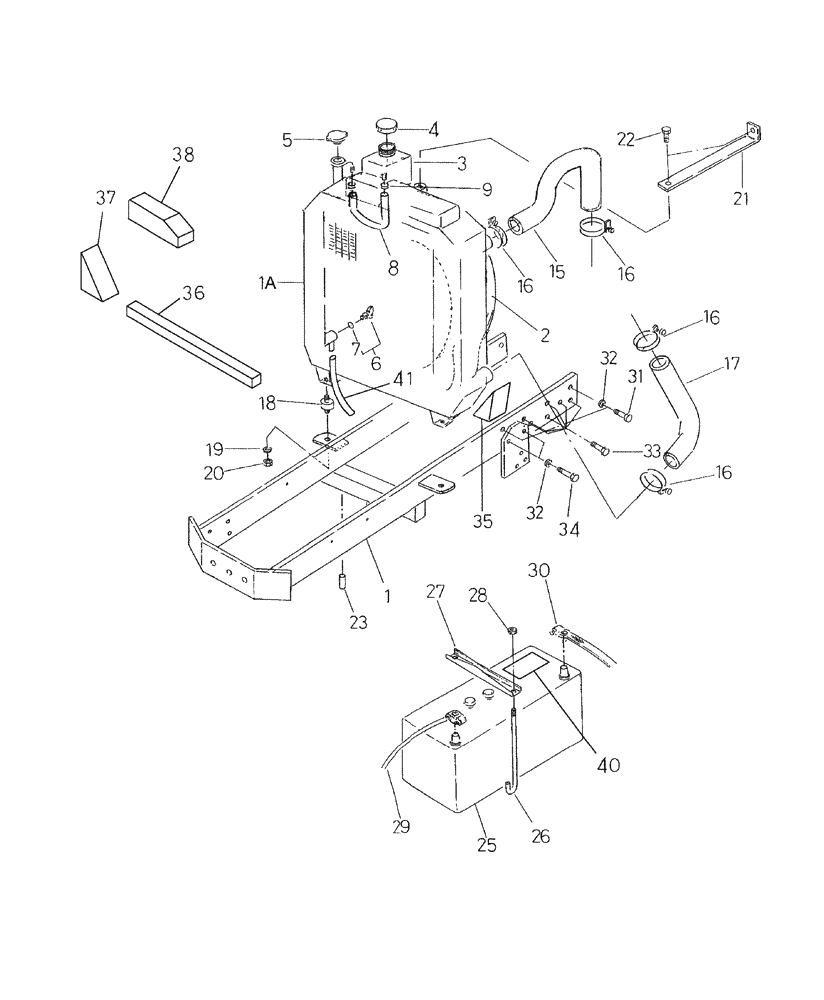

Запчасти Case IH DX48 (02.01) - RADIATOR & BATTERY (02) - ENGINE EQUIPMENT

1

SBA330012130

SUPPORT

Front Axle

1шт.

1a

SBA310101080

RADIATOR

1шт.

2

SBA310250230

SHROUD

1шт.

3

86558482

BOTTLE

Reserve Tank

1шт.

4

86507190

CAP

1шт.

5

86530802

RADIATOR CAP

1шт.

6

86404010

DRAIN PLUG

Includes: Ref. 7

1шт.

7

86512844

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

8

86400974

FUEL HOSE,7.94 mm ID x 1700.00 mm, SAE J30 R7

1шт.

9

86400352

CLAMP

2шт.

15

SBA310161760

HOSE

Radiator

1шт.

16

SBA067100043

BAND

Hose

4шт.

17

SBA310161770

HOSE

Radiator

1шт.

18

SBA398111630

RUBBER

2шт.

20

SBA021500010

NUT

M10

2шт.

21

SBA310311420

STAY

Radiator

1шт.

22

SBA011510816

BOLT

M8 x16

2шт.

23

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

1шт.

25

B2772W

WET BATTERY

United States

1шт.

25

CB2772W

WET BATTERY

Canada

1шт.

26

SBA389320060

ROD

Battery

2шт.

27

SBA389310130

HOLDER

Battery

1шт.

28

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

29

SBA385650800

CABLE

1шт.

30

SBA385650450

CABLE

1шт.

31

SBA010109552

BOLT

2шт.

32

SBA027100014

SPRING

Washer

8шт.

33

SBA010109305

BOLT

12шт.

34

SBA010431465

BOLT

4шт.

35

SBA398135710

PADDING

1шт.

36

SBA398135140

FELT

1шт.

37

SBA398135990

PADDING

1шт.

38

SBA398135390

PADDING

SPONGE

1шт.

39

SBA378116310

BRACKET

Guard

1шт.

40

SBA390198880

DECAL

CAUTION PLATE

1шт.

41

SBA068109125

TUBE

Vinyl

1шт.
