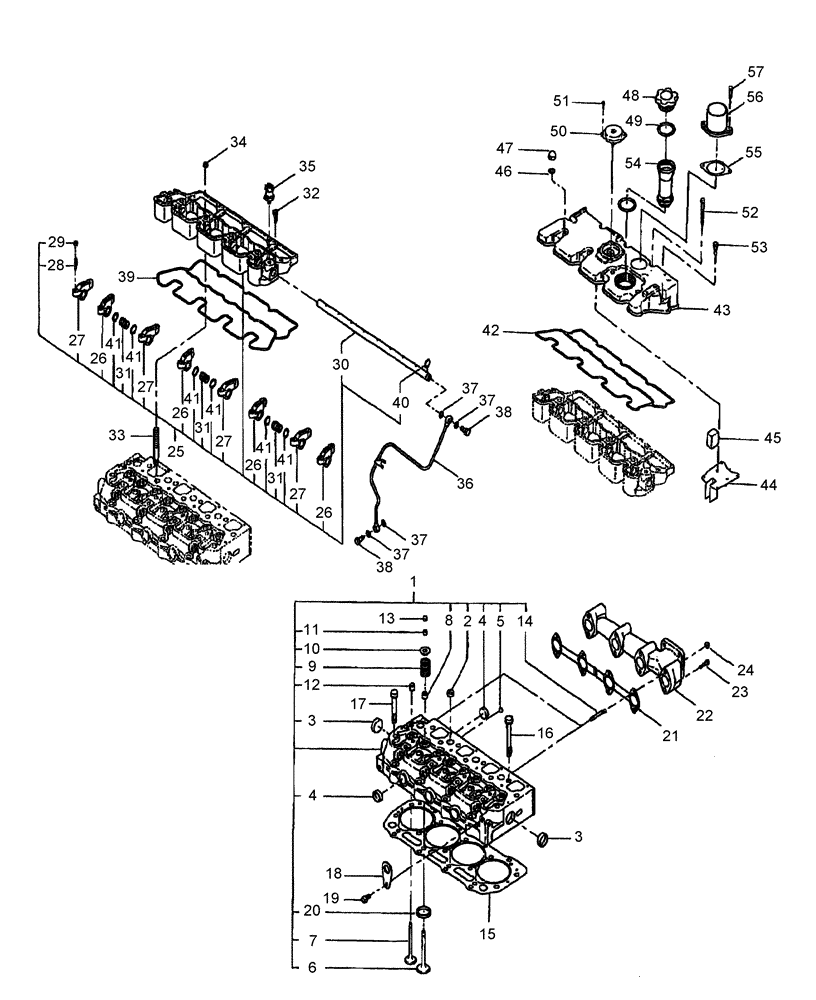

Запчасти Case IH DX48 (01.03) - CYLINDER HEAD (01) - ENGINE

1

SBA111010480

CYLINDER HEAD

Includes: Ref. 2-14,20

1шт.

1

SBA111010481R

REMAN-CYLINDER HEAD

Complete with Valves

1шт.

1

SBA111010481C

CORE-CYLINDER HEAD

Return Number

1шт.

2

SBA064210018

PLUG

Sealing

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

6шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve Guide: Intake

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

16шт.

12

SBA120406050

SEAL

Valve Guide; Exhaust

4шт.

13

SBA120216040

CAP

8шт.

14

SBA012110645

STUD

Bolt

2шт.

15

SBA111147581

CYLINDER HEAD GASKET,0.4mm Thk

0.4 Thickness

1шт.

15

SBA111147591

CYLINDER HEAD GASKET,0.5mm Thk

0.5 Thickness

1шт.

16

SBA111136480

BOLT

14шт.

17

SBA111136490

BOLT

4шт.

18

SBA195816540

LIFTING EYE

2шт.

19

SBA011510816

BOLT

M8 x 16

2шт.

20

SBA110136400

VALVE SEAT

4шт.

21

SBA135996780

MANIFOLD GASKET

1шт.

22

SBA135617120

EXHAUST MANIFOLD

1шт.

23

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

6шт.

24

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

25

SBA120036940

ROCKER ARM

1шт.

26

SBA120356131

ROCKER ARM

Intake

4шт.

27

SBA120356141

ROCKER ARM

Exhaust

4шт.

28

SBA199486220

ADJUSTMENT SCREW

8шт.

29

SBA020109076

NUT

8шт.

30

SBA120316201

SHAFT

Rocker Arm

1шт.

31

SBA198217170

SPRING

3шт.

32

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

2шт.

33

SBA012109044

STUD

4шт.

34

SBA023100010

NUT

M10

4шт.

35

SBA185246060

SENDER UNIT

Oil Pressure

1шт.

36

SBA140607020

RIGID TUBE

1шт.

37

SBA140996260

SEAL

4шт.

38

SBA198486780

BANJO BOLT

Eye

2шт.

39

SBA120996130

GASKET

1шт.

40

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

41

SBA199280300

SHIM,0.5mm Thk

6шт.

42

SBA111996401

GASKET

1шт.

43

SBA135597580

SPACER

1шт.

44

SBA110666210

COVER

OIL STOPPER

1шт.

45

SBA110666060

FILTER SCREEN

1шт.

46

SBA140996270

SEAL

4шт.

47

SBA024600010

NUT

Cap

4шт.

48

SBA198436010

FILLER CAP

1шт.

49

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

50

SBA110566080

BREATHER

1шт.

51

SBA011100408

BOLT

4шт.

52

SBA011300660

BOLT

3шт.

53

Bolt

2шт.

54

SBA110466200

RIGID TUBE

1шт.

Not Included in Long Block

1шт.

55

SBA135996950

MANIFOLD GASKET

1шт.

56

SBA135566530

VALVE

Air Intake

1шт.

57

SBA011310620

BOLT

M6 x 20

2шт.
