Запчасти Case IH DX45 (04.10) - FRONT DIFFERENTIAL GEARS W/FWD (04) - FRONT AXLE & STEERING

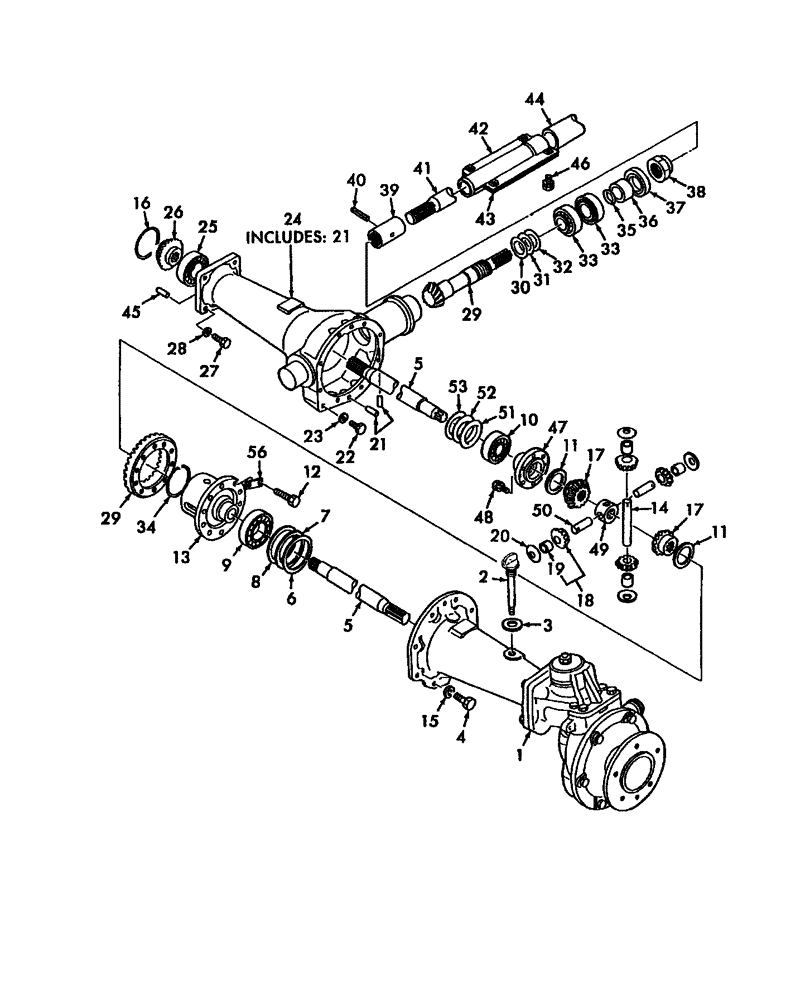

Схема запчастей Case IH DX45 - (04.10) - FRONT DIFFERENTIAL GEARS W/FWD (04) - FRONT AXLE & STEERING
30
23
31
33
7
28
1
32
36
35
29
22
48
5
53
42
20
56
52
14
12
37
9
11
17
25
19
46
33
34
15
27
44
41
24
43
11
21
4
29
39
2
38
17
16
6
5
8
49
26
13
18
10
51
47
45
3
40
50

Артикул

Название

Примечание

Количество

1

SBA326344860

CASE

Wheel Shaft, L.H.

1шт.

2

SBA398400450

DIPSTICK

1шт.

3

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

4

SBA010431240

BOLT

8шт.

5

SBA326211062

SHAFT

Differential

2шт.

6

SBA199280810

SHIM,0.1mm Thk

1шт.

7

SBA199280820

SHIM,0.2mm Thk

1шт.

8

SBA199280830

SHIM,0.5mm Thk

1шт.

9

83908455

BALL BEARING

1шт.

10

86516079

BALL BEARING,50mm ID x 80mm OD x 16mm W

1шт.

11

SBA399261250

THRUST WASHER

2шт.

12

SBA010411022

BOLT

8шт.

13

SBA326110660

HOUSING

Differential, Replaced By SBA326110661 & SBA010109424

1шт.

14

SBA326130430

SHAFT

Pinion

1шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

16

SBA052300900

O-RING

2шт.

17

SBA326140030

GEAR

Differential

2шт.

18

SBA322030260

GEAR SET

Includes: Ref. 19

4шт.

19

SBA398511380

BUSHING

8шт.

20

SBA399260130

THRUST WASHER

8шт.

21

SBA030501032

PIN

Dowel

2шт.

22

SBA010411212

DRAIN PLUG,M12 x 1.25

3шт.

23

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

3шт.

24

SBA326344880

CASE

R.H. Includes: Ref. 21

1шт.

25

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

Ball

2шт.

26

SBA326240400

BEVEL PINION

Final

2шт.

27

SBA010431640

BOLT

8шт.

28

86729275

LOCK WASHER,5/8 0.634 CST ZND

8шт.

29

SBA322050640

DRIVE PINION

1шт.

29

SBA322051450

DRIVE PINION

1шт.

USED ON & ABOVE FRONT AXLE 3F52085

1шт.

30

SBA199281210

SHIM,0.1mm Thk

1шт.

31

SBA199281220

SHIM,0.2mm Thk

1шт.

32

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

33

439692

TAPERED BEARING,30mm ID x 62mm OD x 21.25mm W

Taper Roller

2шт.

34

SBA398340291

CLIP

1шт.

35

SBA052300250

O-RING

1шт.

36

SBA399233860

COLLAR

1шт.

37

SBA050202340

SEAL

Oil

1шт.

38

SBA399370620

NUT

Lock

1шт.

39

SBA322611200

COUPLING

1шт.

40

87307214

PIN

2шт.

41

SBA322513680

DRIVEN SHAFT

1шт.

42

SBA378104180

GUARD

Upper

1шт.

43

SBA378115730

GUARD

Lower

1шт.

44

SBA320171680

TUBE

1шт.

45

SBA030501032

PIN

2шт.

46

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

4шт.

47

SBA326110650

HOUSING

Differential

1шт.

48

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

Used with SBA326110660 Differential Housing

8шт.

48

SBA010109424

BOLT

M8 x 25, Used With SBA326110661 Differential Housing

8шт.

49

SBA326170060

UNIVERSAL JOINT

1шт.

50

SBA326130440

SHAFT

Pinion

2шт.

51

SBA199280750

SHIM,0.1mm Thk

1шт.

52

SBA199280760

SHIM

.2 or 0.008"

1шт.

53

SBA199280770

SHIM

.5 or 0.020"

1шт.

56

SBA399310300

PLATE

Locking

4шт.

Выбрано товаров: 57
