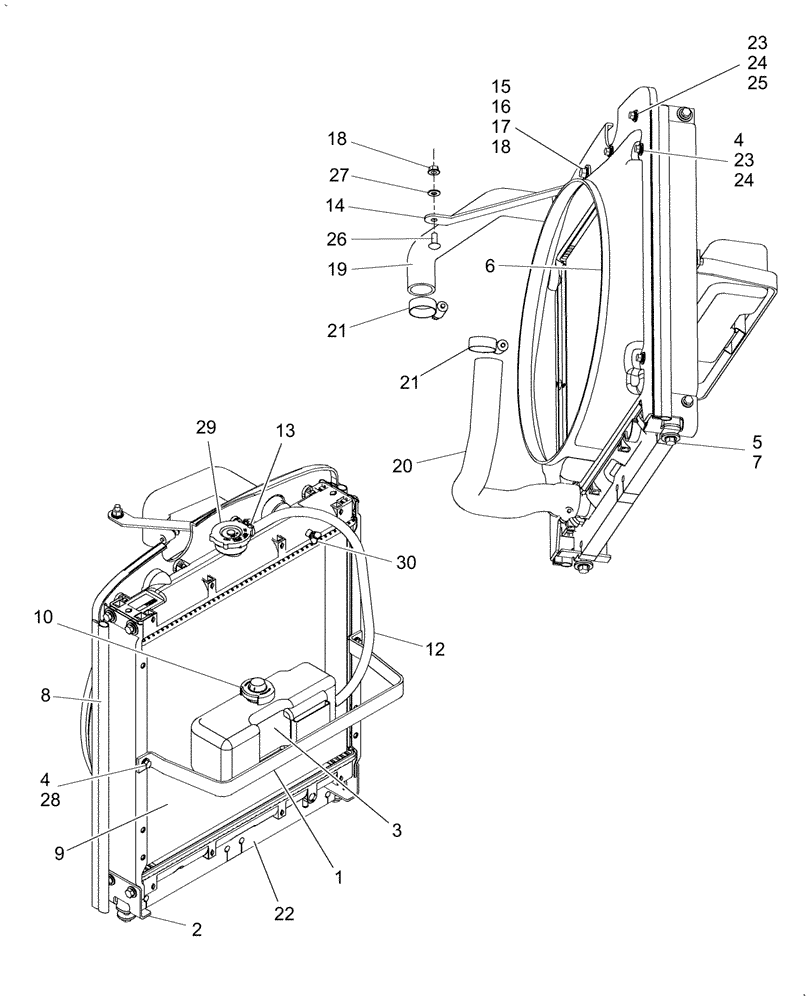

Запчасти Case IH DX45 (02.02.01) - COOLING SYSTEM, RADIATOR W/ALUMINUM CORE (02) - ENGINE EQUIPMENT

1

87385836

BRACKET

Overflow Bottle

1шт.

2

87324723

BRACKET, SUPPORTING

2шт.

3

5176648

TANK

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

5

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

6

87390258

SHROUD

1шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

87324971

EDGE

Shroud

2шт.

9

87305450

RADIATOR

D40, DX40, Incl 29 - 30, Filler Neck in Middle of Radiator

1шт.

9

87305449

RADIATOR

D45, DX45, Incl 29 - 30, Filler Neck in Middle of Radiator

1шт.

10

4153008

SEAL

SEALRING

1шт.

11

4274034

CAP

1шт.

12

87324970

BOTTLE

1шт.

13

86400352

CLAMP

2шт.

14

87390259

BRACKET

1шт.

15

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

16

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

17

87016617

LOCK WASHER,M8

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

87389758

HOSE

Upper

1шт.

20

87308725

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID, 172.00 mm

Lower

1шт.

21

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

22

87308701

SEAL

1шт.

23

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

24

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

25

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

28

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

29

87522876

RADIATOR CAP

1шт.

30

87032485

DRAINCOCK/TAP SUPPLY

1шт.
