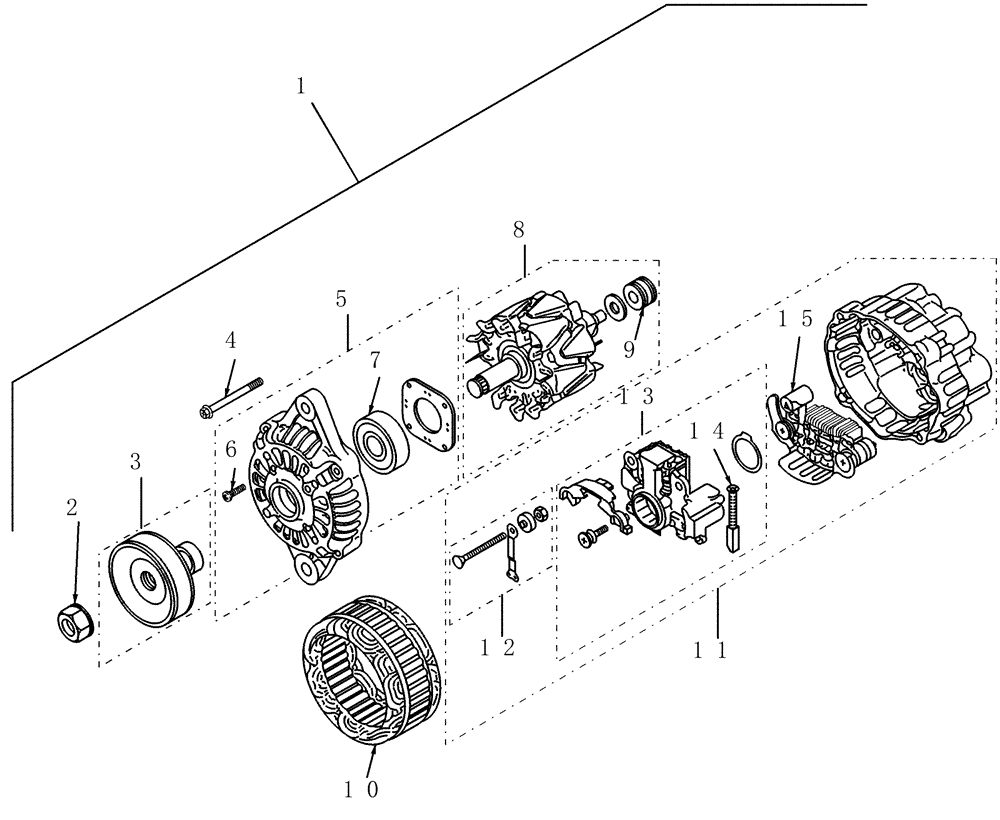

Запчасти Case IH DX45 (01.15) - ALTERNATOR ASSEMBLY (01) - ENGINE

1

SBA185046320

ALTERNATOR

Assy, Includes: Ref. 2 thru 15

1шт.

1

SBA185046320R

REMAN-ALTERNATOR

D30, D40, D45, DX30, DX40, DX45, All PIN HBA015001 & Aft.

1шт.

1

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

1

SBA185046320GV

ALTERNATOR

Value

1шт.

2

SBA185446269

NUT

1шт.

3

SBA185436180

PULLEY

1шт.

4

SBA185446270

SET OF SCREWS

1шт.

5

SBA185426210

COVER

Front Includes: Ref. 6 & 7

1шт.

6

SBA185446271

SET OF SCREWS

1шт.

7

NS

NOT SERVICED

Ball Bearing

1шт.

8

SBA185446273

ARMATURE

Rotor Assy.

1шт.

9

SBA185446274

BALL BEARING,8mm ID x 23mm OD x 14mm W

1шт.

10

SBA185446275

ALTERNATOR STATOR

1шт.

11

SBA185426220

COVER

Rear Includes: Ref. 12 thru 15

1шт.

12

SBA185446278

KIT

Set

1шт.

13

SBA185446277

VOLTAGE REGULATOR

1шт.

14

SBA185416480

COMMUTATOR BRUSH

Spring

2шт.

15

SBA185446276

RECTIFIER

1шт.
