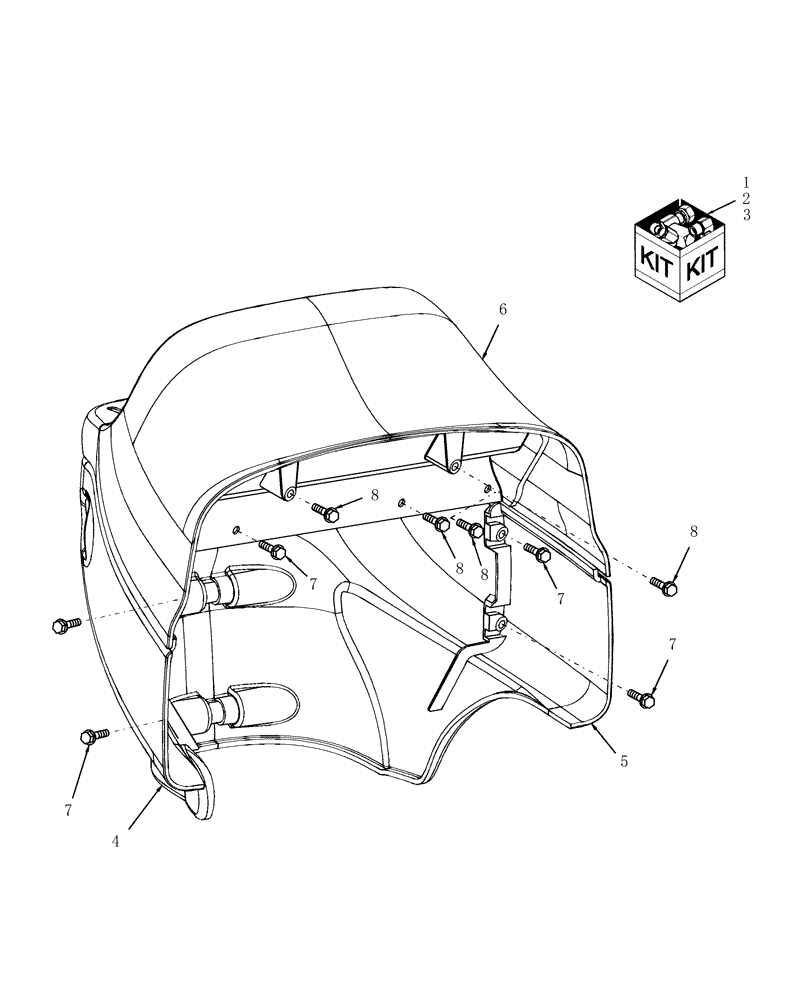

Запчасти Case IH DX45 (08.03.02) - DELUXE SOUND KIT & REAR HOOD ASSEMBLY (08) - SHEET METAL

1

86401036

KIT

Console Sound, DX35, DX40, DX45

1шт.

2

86401037

KIT

Sound, L.H., DX35, DX40, DX45

1шт.

3

86401038

KIT

Sound, R.H., DX35, DX40, DX45

1шт.

4

86401778

PANEL, SIDE

Lower Console, R.H.

1шт.

5

86401779

PANEL, SIDE

Lower Console, L.H.

1шт.

6

86401780

HOOD ASSY.

Rear, D35, D40, D45

1шт.

6

86401887

HOOD ASSY.

Rear, DX35, DX40, DX45

1шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.
