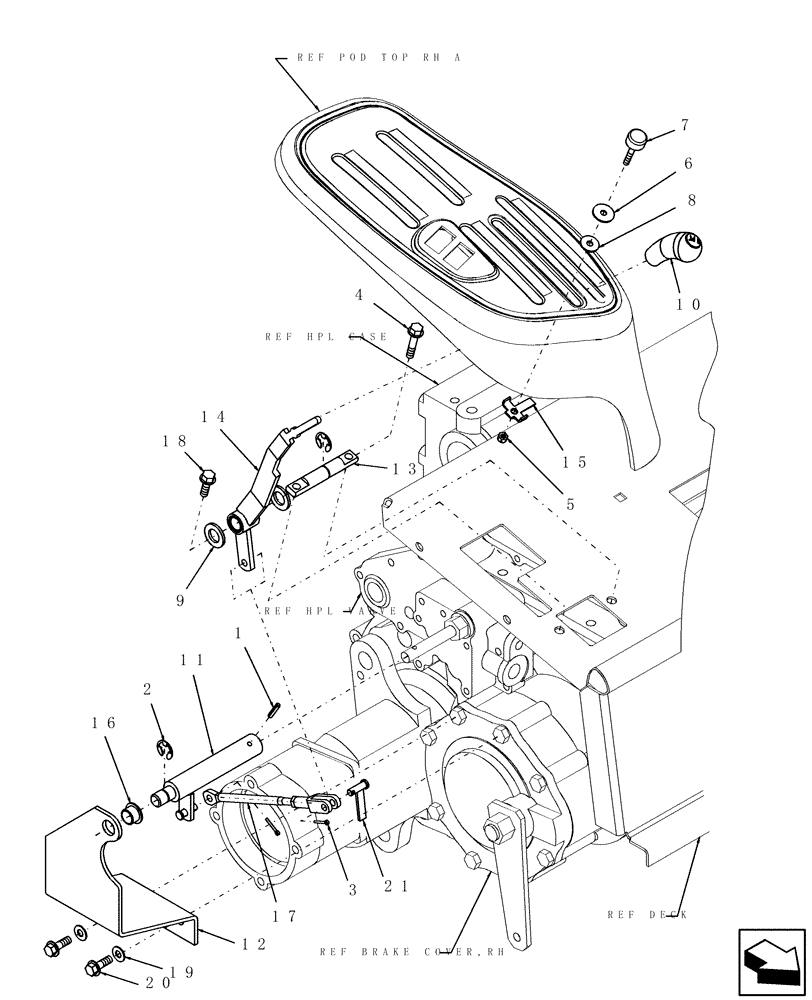

Запчасти Case IH DX45 (07.14) - HPL LEVER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

2

505291

LOCKING RING,#62, .480" Dia, E-Type

2шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

5

832-46406

NUT,M6 x 1, Cl 8

1шт.

6

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

7

86506579

KNOB

HPL Stop, Fillister Hd, M6 x 1 x 35

1шт.

8

86508357

WASHER,.28" x .90" x .06" Thk, Nylon

1шт.

9

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

10

86524774

KNOB

3 PT

1шт.

11

86558350

SHAFT

HPL

1шт.

12

86558405

SUPPORT

3 PT Shaft

1шт.

13

86558407

SHAFT

3 PT

1шт.

14

84171311

LEVER

HPL

1шт.

15

86558917

STOP

HPL

1шт.

16

86558960

BUSHING,Hat, 15.8mm ID x 19.05mm OD x 25.4mm OD x 12.7mm W

1шт.

17

86573742

LIFT LINK,5/16" - 24

HPL, Includes: Ref. 3 & 21

1шт.

18

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

21

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.
