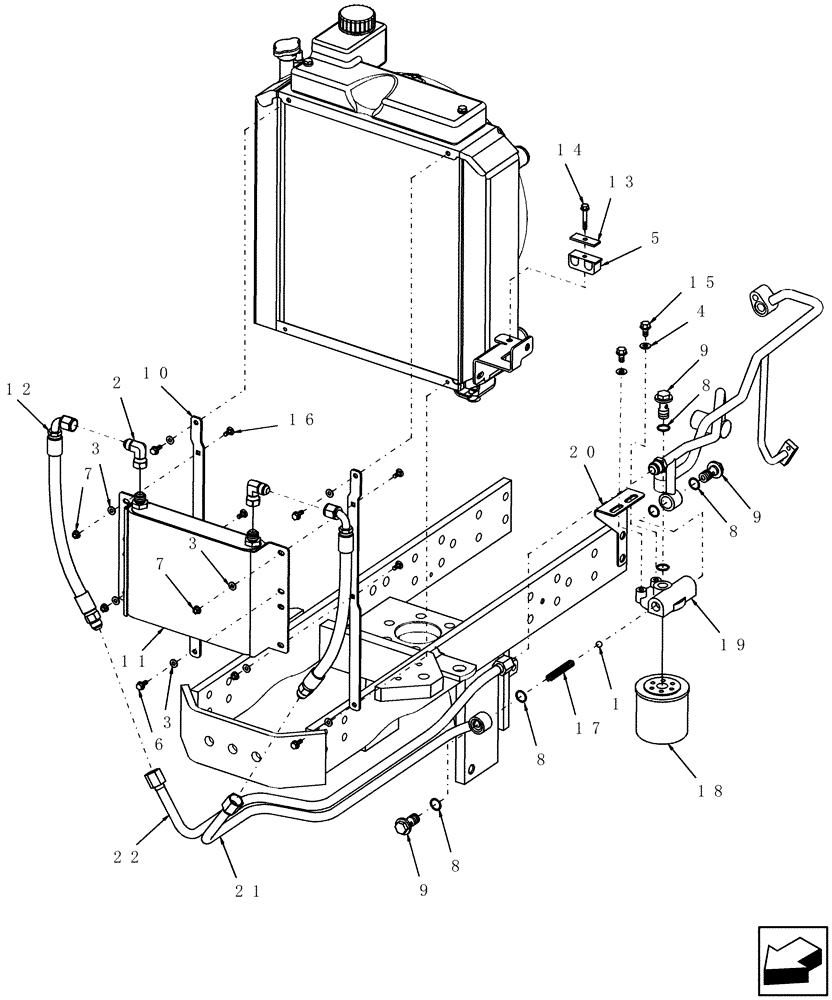

Запчасти Case IH DX45 (07.12[A]) - HYD PIPING & OIL COOLER, W/HST - ON & ASN DX35 HBA0005147, DX40 HBA0005162, DX45 HBA0005151 (07) - HYDRAULIC SYSTEM

1

110680

BALL,12.75mm OD

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

-8

2шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

5

781221

CLAMP

1шт.

6

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

8

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

6шт.

9

SBA398480240

BANJO BOLT,3/8"

3шт.

10

86401440

BRACKET

Oil Cooler

1шт.

11

86401869

OIL COOLER

1шт.

12

86401893

FLEXIBLE HOSE,12.7mm ID x 420mm L, SAE 100R6

2шт.

13

86509354

PLATE,9/32" ID x 3/4" W x 2" L

1шт.

14

844-6040

BOLT,Hvy Hex, M6 x 40mm, Cl 8.8

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

16

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

17

86532703

SPRING

HST Bypass

1шт.

18

SBA340501030

FILTER

HST, W/Internal Bypass

1шт.

19

SBA340560440

FILTER HEAD

HST

1шт.

20

86567844

BRACKET

1шт.

21

86578077

TUBE,15.90 mm DIA

Out

1шт.

22

86578079

TUBE,15.90 mm DIA

In

1шт.
