Запчасти Case IH DX45 (07.09.01) - MANIFOLD DIVERTER BLOCK - SBA340016600,SBA340016601, SBA340016620 & SBA340016621 (07) - HYDRAULIC SYSTEM

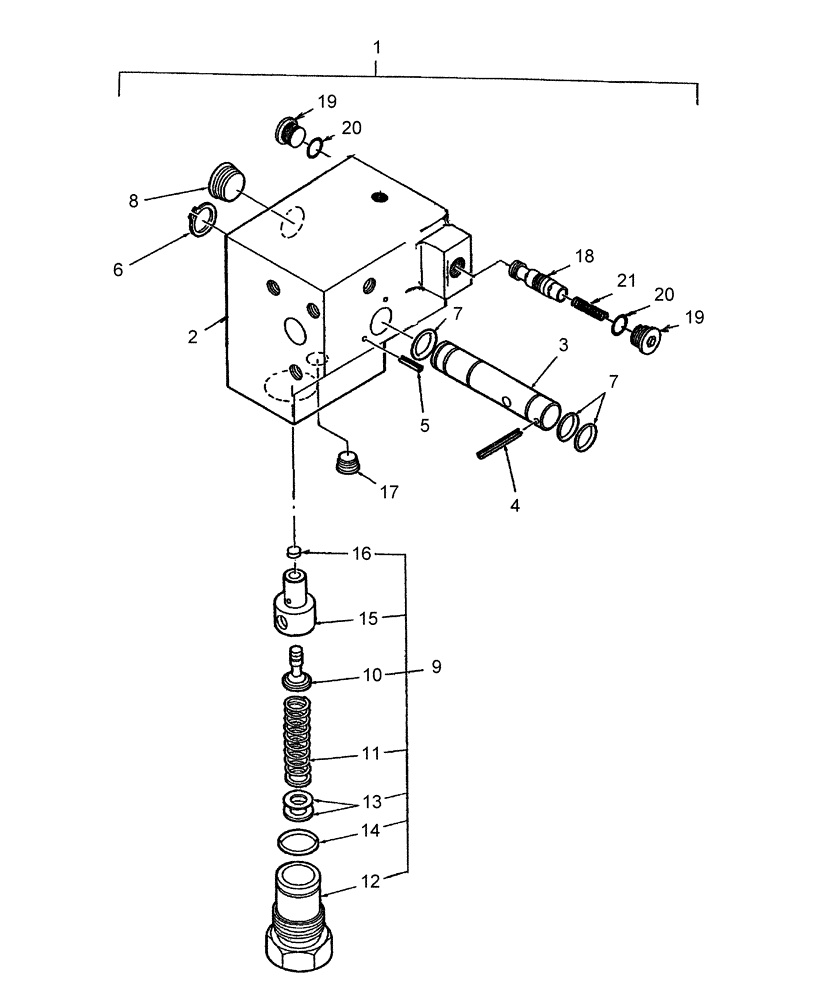

Схема запчастей Case IH DX45 - (07.09.01) - MANIFOLD DIVERTER BLOCK - SBA340016600,SBA340016601, SBA340016620 & SBA340016621 (07) - HYDRAULIC SYSTEM
15
7
13
8
20
1
16
10
9
5
6
3
21
17
18
19
20
19
14
2
11
12
7
4

Артикул

Название

Примечание

Количество

1

SBA340016600

HYDRAULIC VALVE

Block, Manifold Diverter, D35, DX35. Includes: Ref. 2-21

1шт.

1

SBA340016601

VALVE

Block, Manifold Diverter, D35, DX35 Includes: Ref. 2-21

1шт.

1

SBA340016620

HYDRAULIC VALVE

Block, Manifold Diverter, D40, DX40, D45, DX45 Includes: Ref. 2-21

1шт.

1

SBA340016621

VALVE

Block, Manifold Diverter, D40, DX40, D45, DX45 Includes: Ref. 2-21

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

SBA030300220

ROLL PIN

1шт.

5

SBA030300310

ROLL PIN

2шт.

6

SBA036100015

SNAP RING

1шт.

7

SBA052100110

O-RING,2.4mm Thk x 10.8mm ID

P10

3шт.

8

SBA064409005

PLUG,3/8"-18 NPTF

3шт.

9

SBA340293798

VALVE PRESSURE RELIE

D35, DX35 Includes: Ref. 10-16

1шт.

9

SBA340293786

VALVE

Relief Valve. D40, DX40 & D45, DX45 Includes: Ref. 10-16

1шт.

10

NSS

NOT SOLD SEPARAT

Poppet

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

SBA340293789

SHIM KIT

1шт.

14

SBA052400180

O-RING

S18

1шт.

15

NSS

NOT SOLD SEPARAT

Housing

1шт.

16

SBA340293799

PLUG

1шт.

17

SBA064400010

PLUG

Pipe Thread, 1/8"

1шт.

18

NSS

NOT SOLD SEPARAT

Diverter Spool

1шт.

19

NSS

NOT SOLD SEPARAT

Plug

2шт.

20

SBA052110140

O-RING

1шт.

21

NSS

NOT SOLD SEPARAT

Spring

1шт.

Выбрано товаров: 25
