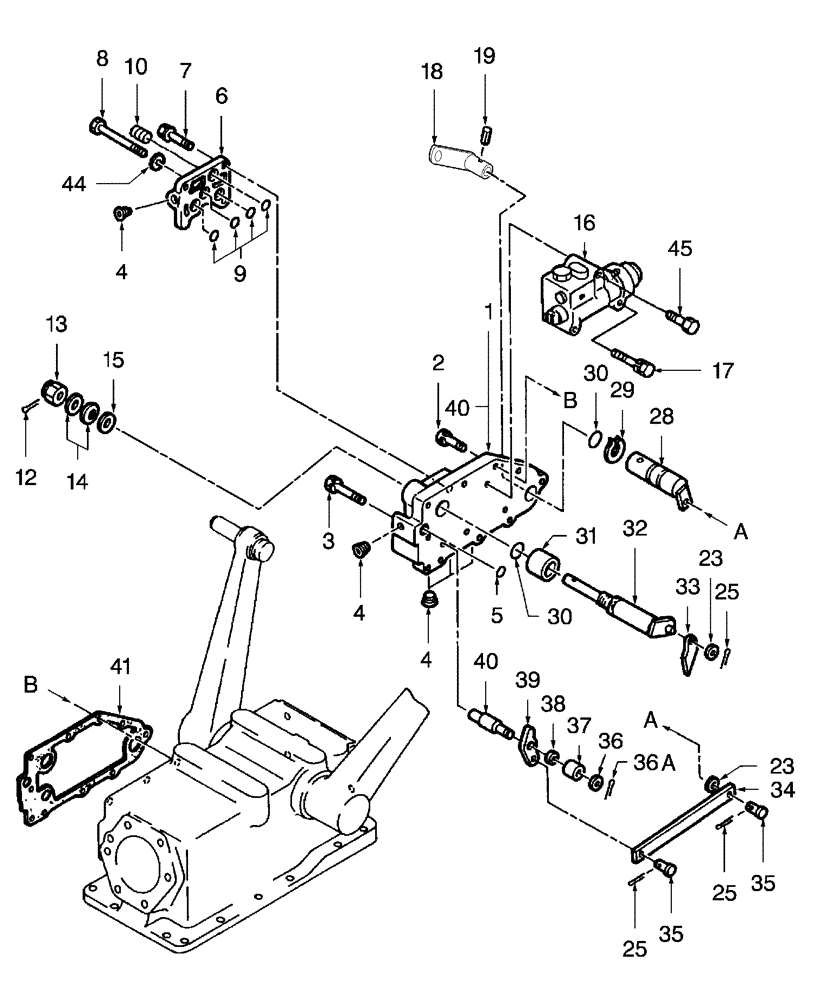

Запчасти Case IH DX45 (07.03) - HYD CONTROL VALVE, QUADRANT & L/DRAFT CONTROL (07) - HYDRAULIC SYSTEM

1

SBA344060370

COVER

Valve, No longer available replaced by Ref. SBA344060371 Valve, Ref. 36A SBA026100010 Washer, Ref. 36B Split Pin & Ref. 40 SBA340210840 Shaft

1шт.

SBA344060370

1шт.

1

SBA344060371

COVER

Cover

1шт.

USED ON & ABOVE DRIVLINE 3M27584

1шт.

2

SBA011510835

BOLT

7шт.

3

SBA011510855

BOLT

1шт.

4

SBA064400020

PLUG

4шт.

5

SBA052110120

O-RING

1шт.

6

SBA344881130

COVER

Valve

1шт.

7

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

3шт.

8

SBA010310885

BOLT

1шт.

9

SBA052110160

O-RING

4шт.

12

PL

PROCURE LOCALLY

Pin, Split

1шт.

10

SBA064409005

PLUG,3/8"-18 NPTF

1шт.

13

SBA022200016

SLOTTED NUT

1шт.

14

SBA399340070

WASHER

2шт.

15

SBA026100016

WASHER

1шт.

16

SBA340015140

HYDRAULIC VALVE

HPL Control Refer to Fig. 07.03.01 for Components

1шт.

Replaced by SBA340016350. Components still serviced

1шт.

16

SBA340016350

VALVE

HPL Control Refer to Fig. 07.03.02 for Components

1шт.

Used On & Above Driveline # 3M48938

1шт.

17

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

2шт.

18

SBA340106630

LEVER

Control

1шт.

19

SBA030309010

ROLL PIN,M5 x 40

1шт.

25

SBA030102016

COTTER PIN

4шт.

28

SBA340200430

SHAFT

Control

1шт.

29

370002

CIRCLIP,M25, External

1шт.

30

SBA052100210

O-RING

2шт.

31

SBA399233280

BUSHING

1шт.

32

SBA340200421

SHAFT

Control

1шт.

33

SBA344660020

CAM

A

1шт.

34

SBA344220420

PLATE

1шт.

35

SBA399611110

PIN

2шт.

36

SBA036800008

SNAP RING

1шт.

USED BEFORE DRIVELINE 3M27584

1шт.

36a

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

USED ON & ABOVE DRIVLINE 3M27584

1шт.

36b

SBA030103220

COTTER PIN

1шт.

USED ON & ABOVE DRIVLINE 3M27584

1шт.

37

SBA399233160

COLLAR

1шт.

38

SBA399340160

WASHER

1шт.

39

SBA344660040

CAM

B

1шт.

40

SBA340210430

SHAFT

1шт.

40

SBA340210840

SHAFT

1шт.

USED ON & ABOVE DRIVLINE 3M27584

1шт.

41

SBA344990260

GASKET

1шт.

44

E630153S71

LOCK WASHER,M8

1шт.

45

SBA011510870

BOLT,M8 x 70mm

1шт.
