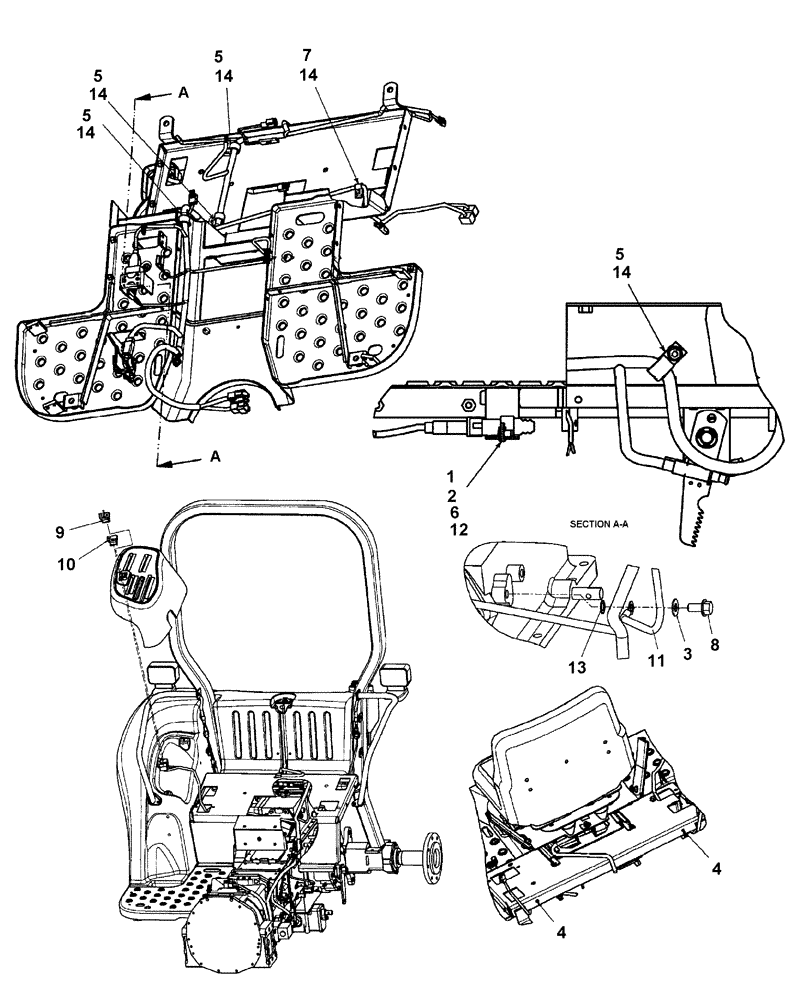

Запчасти Case IH DX45 (06.06) - CHASSIS HARNESS (06) - ELECTRICAL SYSTEMS

1

825-1404

NUT,M4, Cl 8

2шт.

2

9672401

LOCK WASHER

Ext T, M4

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

5

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

6

E7NND744AA

SWITCH

Cruise Control Brake

1шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

8

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

9

86400037

SWITCH

Rocker, Range Shift

1шт.

10

86400038

SWITCH

Rocker, Cruise

1шт.

11

86400243

WIRE HARNESS

Chassis, Includes: Ref. 11A

1шт.

11

86403082

WIRE HARNESS

Chassis, Includes: Ref. 11A

1шт.

Used on and ASN HB0006021

1шт.

11a

773464

DIODE

Style 30

1шт.

Not illustrated

1шт.

12

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

2шт.

13

9672402

LOCK WASHER

M10

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

15

87302330

PLUG

Aux. Power Socket Cap

1шт.

Not illustrated

1шт.

16

87302331

SOCKET

SHELL Aux. Power, Retaining

1шт.

Not illustrated

1шт.

17

87302332

SOCKET

BASE Aux. Power

1шт.

Not illustrated

1шт.
