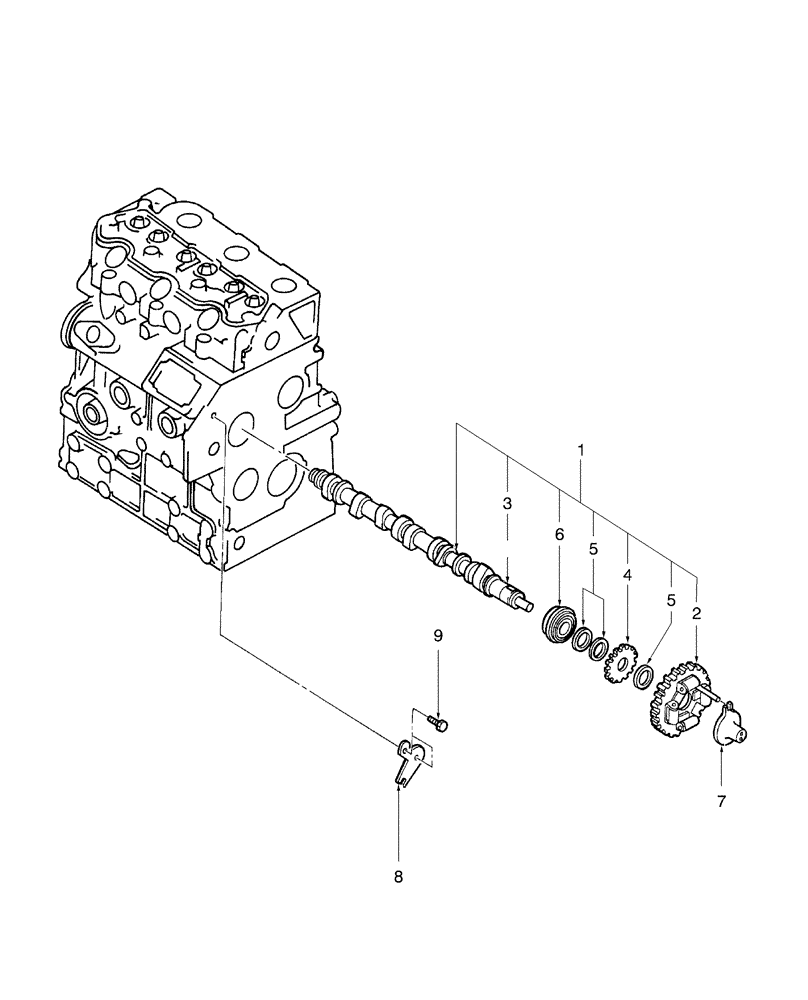

Запчасти Case IH DX45 (01.03) - CAMSHAFT (01) - ENGINE

1

SBA120026350

CAMSHAFT

D35, DX35, Includes: Ref. 2 thru 6

1шт.

SBA120026350R

REMAN-CAMSHAFT

D35 PIN # HBA0005002 & Above, DX35 PIN HBA015014 & Above.

1шт.

SBA120026350C

CORE-CAMSHAFT

Return Number

1шт.

1

SBA120026320

CAMSHAFT

D40, DX40, D45, DX45, Includes: Ref. 2 thru 6

1шт.

SBA120026320R

REMAN-CAMSHAFT

D40 PIN # HBA0005005 & ABOVE, D45 PIN # HBA0005005 & ABOVE, BOTH (12/00-), DX45 PIN # HBA0005007 & ABOVE (12/00-11/03), DX40 PIN # HBA0005006 & ABOVE (12/00-8/03)

1шт.

SBA120026320C

CORE-CAMSHAFT

Return Number

1шт.

2

SBA120016050

GEAR

1шт.

3

SBA034100508

KEY

1шт.

4

SBA120736081

GEAR

1шт.

5

SBA199216230

SPACER

3шт.

6

SBA040156304

BEARING ASSY

D35, DX35

1шт.

6

SBA040109057

BEARING

D40, DX40, D45, DX45

1шт.

7

SBA125256120

SLIDE GUIDE

1шт.

8

SBA199566651

PLATE

D35, DX35

1шт.

8

SBA199566750

BRACKET

D40, DX40, D45, DX45

1шт.

9

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.
