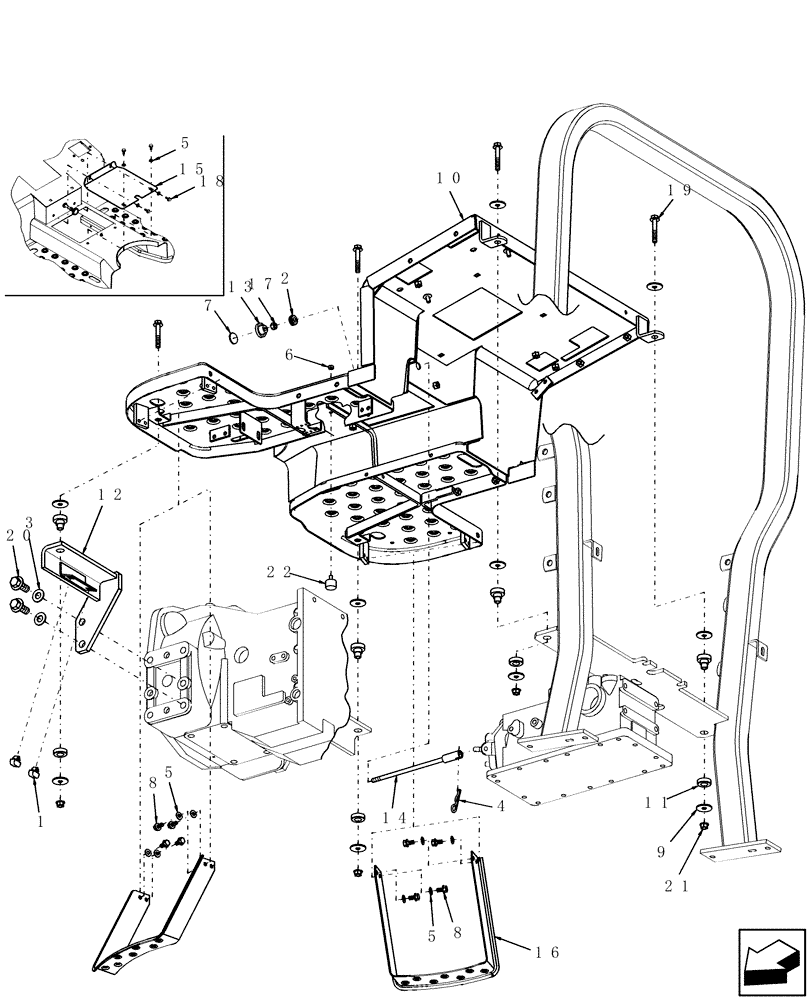

Запчасти Case IH DX45 (10.03) - PLATFORM (10) - OPERATORS PLATFORM/CAB

1

128104

BUMPER

2шт.

2

134857

GROMMET

1шт.

3

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

4

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

6

425-104

NUT,1/4"-20, Cl 5

1шт.

7

86400295

DECAL

HPL rate

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

8шт.

9

86524667

WASHER,M10.3 x 38.1 x .15 Thk

Radiator

10шт.

10

86401858

PLATFORM ASSY.

Plate, Deck

1шт.

11

86558389

DAMPER

4шт.

12

86401894

SUPPORT

Left

1шт.

13

86558451

KNOB

HPL Rate

1шт.

14

86558468

ROD

1шт.

15

86401859

COVER

Access

1шт.

16

86401196

STEP

2шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

19

844-10060

BOLT,Hvy Hex, M10 x 60mm, Cl 8.8

4шт.

20

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

2шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

22

9844656

BUMPER

1шт.

23

86401063

ANCHOR

Located on Left-Hand Side Under Step, Attached to Transmission Housing by Two Bolts, Not Illustrated

1шт.
