Запчасти Case IH DX45 (07.07) - SECOND REAR REMOTE VALVE KIT, SELF-CENTERING - 718334036 (07) - HYDRAULIC SYSTEM

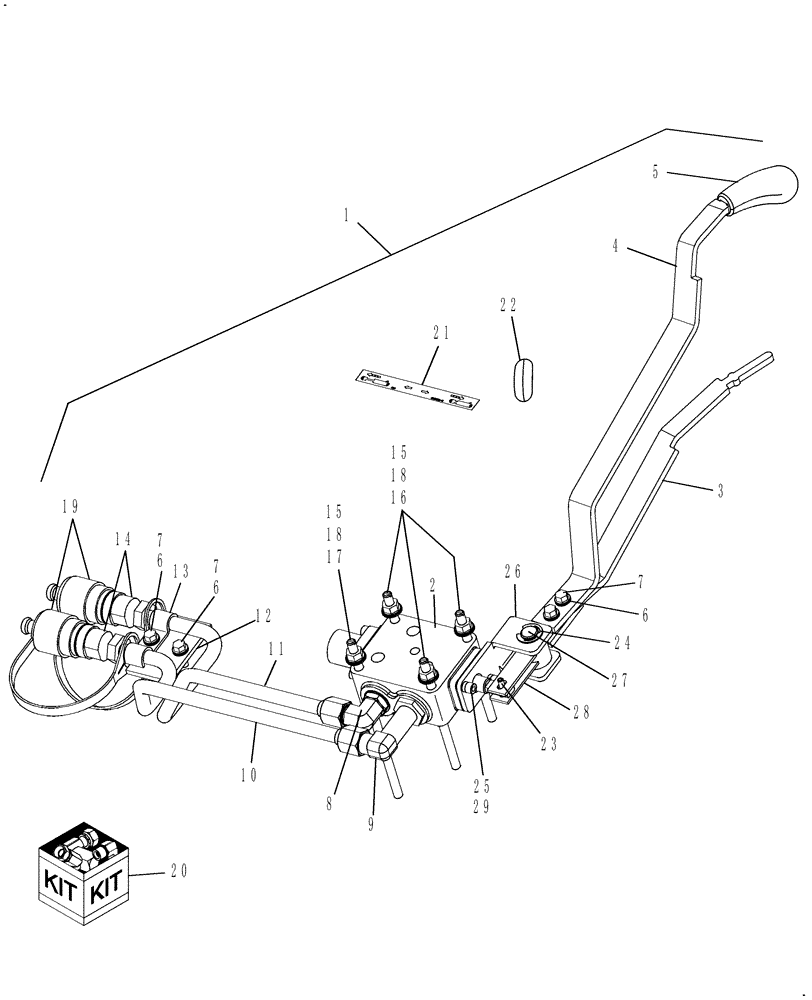

Схема запчастей Case IH DX45 - (07.07) - SECOND REAR REMOTE VALVE KIT, SELF-CENTERING - 718334036 (07) - HYDRAULIC SYSTEM
22
4
6
10
13
21
1
25
3
8
28
7
6
5
7
2
26
15
9
14
15
23
20
6
16
24
7
11
18
12
17
27
19
18
29

Артикул

Название

Примечание

Количество

1

718334036

FIELD ATTACHMENT

Single Spool Remote Kit, Remote Control Valve #2

1шт.

718334006

1шт.

2

86403116

REMOTE CONTROL VALVE

Refer to Fig. 07.06.03 for details

1шт.

3

86554976

LEVER

Remote #2, GEAR

1шт.

4

86554973

LEVER

Remote #2, HST

1шт.

5

86403811

KNOB

A, Range

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

8

128830

ELBOW,90 DEGREE, 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

10

86558263

HYD TUBE

RM2 Port A

1шт.

11

86558265

HYD TUBE

RM2 Port B

1шт.

12

86403113

PLATE

RM2

1шт.

13

86524859

CLAMP

Tube

1шт.

14

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring Male Coupler is 9801618

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

86532718

STUD,M8 x 135, Cl 8.8

3шт.

17

86532719

STUD,M8 x 195, Cl 8.8

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

19

5186723

DUST CAP,24mm, Black

Dust, 1/2 Coupler

2шт.

20

86535818

SEAL KIT

Remote Valve

1шт.

21

86567895

DECAL

Remote

1шт.

22

86404551

DECAL

Remote #2 Logo

1шт.

23

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

24

1826919

SNAP RING

1шт.

25

86400503

SPACER

2шт.

26

86554969

SUPPORT

Hydraulic Remote

1шт.

27

86554970

SHAFT

Remote

1шт.

28

86558379

LEVER

Hyd Pivot Assy.

1шт.

29

86565810

HEX SOC SCREW,1/4" - 20 x 5/8"

2шт.

Выбрано товаров: 30
