Запчасти Case IH DX45 (06.03) - BATTERY & BATTERY PLATE (06) - ELECTRICAL SYSTEMS

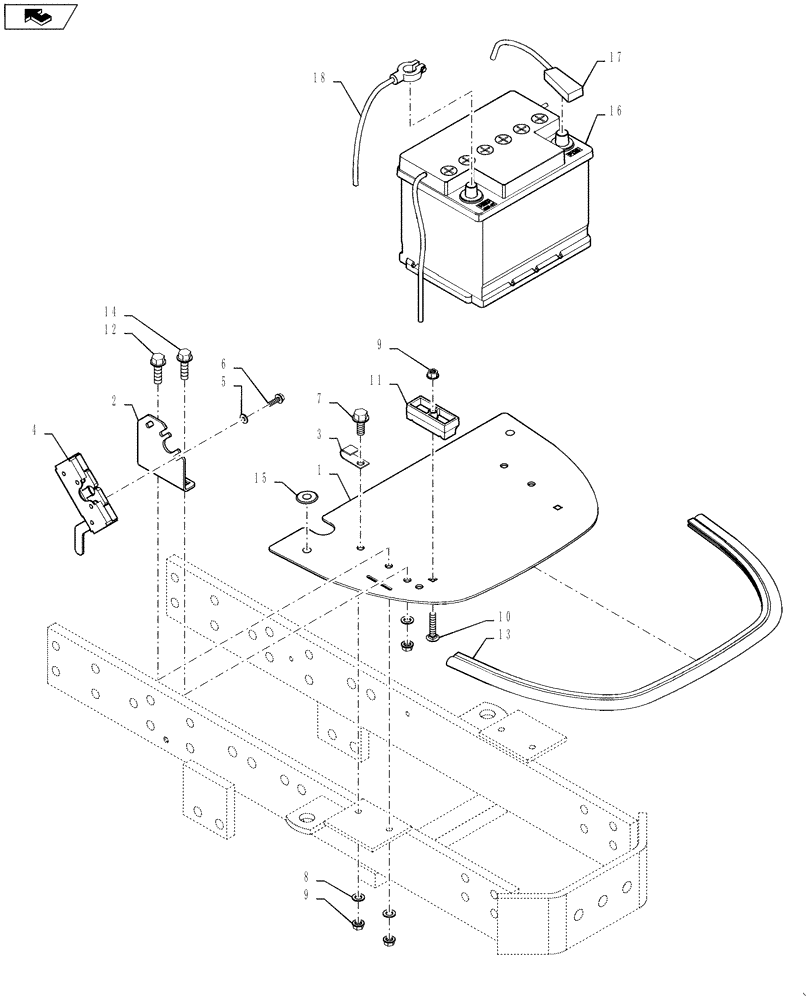

Схема запчастей Case IH DX45 - (06.03) - BATTERY & BATTERY PLATE (06) - ELECTRICAL SYSTEMS
4
12
7
11
6
1
15
13
9
18
5
3
8
10
14
home
9
17
2
16

Артикул

Название

Примечание

Количество

1

87308664

PLATE

Plate, Battery

1шт.

2

87301002

BRACKET

Latch

1шт.

3

134579

WIRE CLAMP,J

2шт.

4

86403766

BRACKET

Hood

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Used with Standard Steering

3шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

10

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

11

86403795

INSULATOR BLOCK

BATTERY

2шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

13

87301003

MOLDING

Quick Edge

1шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

86400620

ISOLATOR

2шт.

16

B4750W

WET BATTERY

12V United States

1шт.

16

CB4750W

WET BATTERY

12V Canada

1шт.

17

86572246

CABLE

Positive

1шт.

18

87302270

CABLE

Negative

1шт.

Выбрано товаров: 19
