Запчасти Case IH DX45 (06.02) - ELECTRICAL COMPONENT LOCATION & FUNCTION (06) - ELECTRICAL SYSTEMS

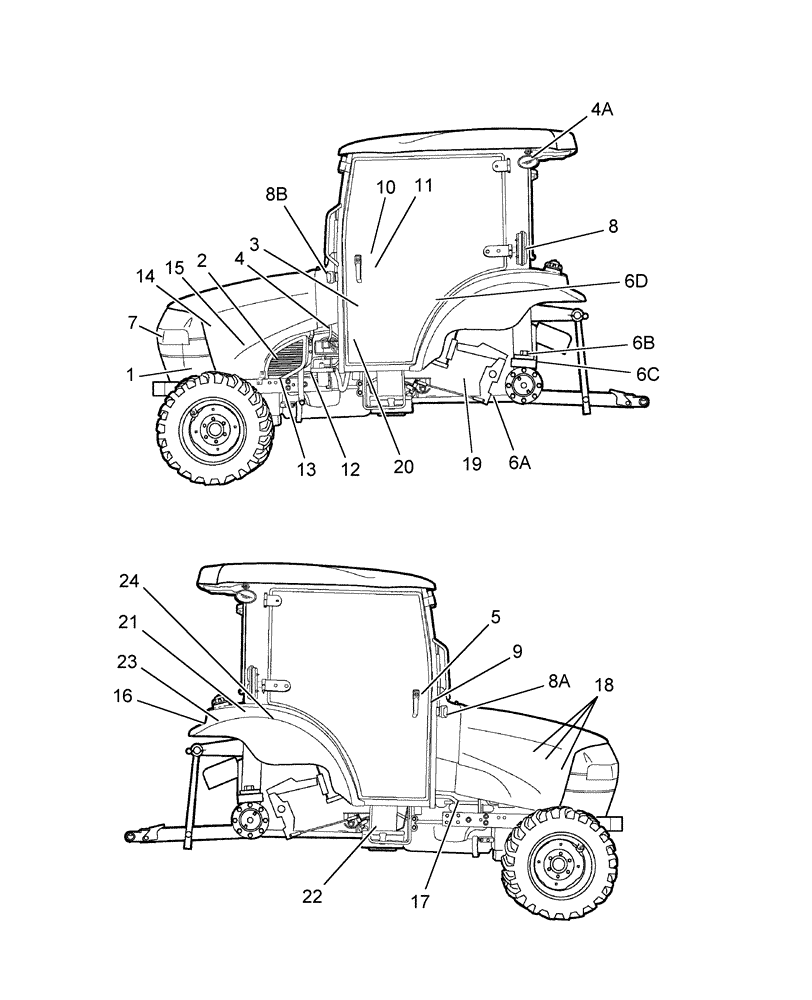

Схема запчастей Case IH DX45 - (06.02) - ELECTRICAL COMPONENT LOCATION & FUNCTION (06) - ELECTRICAL SYSTEMS
15
14
18
22
23
24
8b
16
4a
5
4
13
11
3
9
6c
8a
8
21
10
7
1
20
6d
2
12
19
17
6b
6a

Артикул

Название

Примечание

Количество

1

B4750W

WET BATTERY

U.S. Refer to Fig. 06.03

1шт.

1

CB4750W

WET BATTERY

Canada Refer to Fig. 06.03

1шт.

2

338057A1

FUSE,50A, Maxival, Red

Main, Refer to Fig. 06.04

1шт.

3

NS

NOT SERVICED

Main Fuse Block Located in Lower Console Panel & Cab Fuse Block Located in the Upper Rear of the Cab Refer to Fig. 06.04 for Fuses

1шт.

4

86509590

RELAY

PTO Safety Start, Glow Plug Lamp, Range Low Shift, Fuel Shutoff, Cruise Control Latch, Flasher Cutoff, Park Brake Interface, Range High Shift, Front Work Lights Refer to Fig. 06.06

9шт.

4

86400244

RELAY,12V, 40A

Glow Plug Power Refer to Fig. 06.06

1шт.

4

SBA385870301

TIMER,12V

Glow Plug, Refer to Fig. 06.06

1шт.

4

86512707

DIODE

Module, HST "High" Range Refer to Fig. 06.06

1шт.

4

774735

DIODE,6A

HST Cruise Control, 6 Amp Refer to Fig. 06.06

1шт.

4

5188605

BUZZER,12V, 0.7A

Time-Delay Refer to Fig. 06.06

1шт.

4

86403092

FLASHER UNIT

Hazard Flasher/Turn Signal Module Refer to Fig. 06.06

1шт.

4a

86509590

RELAY

HVAC Refer to Fig. 06.06

1шт.

5

86405635

SWITCH ASSY

Ignition Kit, Refer to Fig. 06.07

1шт.

6a

SBA385200730

SWITCH

Transmission Range Safety Switch (HST) Refer to Fig. 03.06

1шт.

6b

87302334

SWITCH,Four Connectors

Rear (Main) PTO Safety Refer to Fig. 06.08

1шт.

6c

86400228

SWITCH

Mid PTO Refer to Fig. 03.17

1шт.

6d

87385234

SWITCH

Operator's Seat Safety, Refer to Fig. 10.09

1шт.

7

86400128

HEADLAMP

Refer to Fig. 08.03.02

1шт.

8

86405246

LIGHT

Rear Refer to Fig. 06.10

2шт.

8a

47133203

FRONT LAMP,Halogen, 12V, 21W, Amber Lens

RH Refer to Fig. 06.10

1шт.

8b

47133204

FRONT LAMP,12V, 21W, Amber

LH Refer to Fig. 06.10

1шт.

9

86403815

INSTRUMENT PANEL

Refer to Fig. 06.11

1шт.

9

86403815R

REMAN-INSTR CLUSTER

1шт.

9

86403815C

CORE-CLUSTER, INSTR

Return Number

1шт.

10

86401579

SWITCH

Light Switch, Headlight, Taillight & Instrument Panel Lights Refer to Fig. 06.12

1шт.

11

86558430

FLASHER SWITCH

Hazard Refer to Fig. 06.12

1шт.

12

SBA185086530

STARTER MOTOR

Refer to Fig. 01.10

1шт.

12

SBA185086530R

REMAN-STARTER

Remanufactured Starter -- 11 Tooth Drive

1шт.

12

SBA185086530C

CORE-STARTER

Return Number

1шт.

13

SBA185046380

ALTERNATOR

Refer to Fig. 01.09

1шт.

13

SBA185046380R

REMAN-ALTERNATOR

1шт.

13

SBA185046380C

CORE-ALTERNATOR

Return Number

1шт.

14

SBA185246060

SENDER UNIT

Engine Oil Pressure Refer to Fig. 01.05

1шт.

15

SBA385720070

SENSOR

Engine Coolant Temperature Refer to Fig. 01.08

1шт.

16

86402446

SENDER UNIT

Fuel Level Refer to Fig. 02.03

1шт.

17

SBA185206083

SOLENOID

Fuel Shutoff Refer to Fig. 01.13

1шт.

18

SBA185366190

GLOW PLUG

Refer to Fig. 01.13

4шт.

19

86402702

PARK BRAKE SWITCH

Refer to Fig. 03.01

1шт.

20

86405362

SWITCH

Brake HST Cruise Release Refer to Fig. 03.03

1шт.

21

86400038

SWITCH

Electric HST Cruise Control Refer to Fig. 06.13

1шт.

22

87316542

ELECTROMAGNET

HST Control Refer to Fig. 03.03.01

1шт.

23

86400037

SWITCH

HST Hi/LO Range Selector Refer to Fig. 06.13

1шт.

24

0C

ORDER COMPONENTS

Auxiliary Electrical Power Socket Refer to Fig. 06.14

1шт.

Выбрано товаров: 43
